Cherry Master '99 (QL-1 V9B.00, USA long PCB) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cmast99d	igs/goldstar.cpp		no	no	no	yes	Cherry Master '99 (QL-1 V9B.00, USA long PCB)	1999	bootleg	cmast99	cmast99

snap

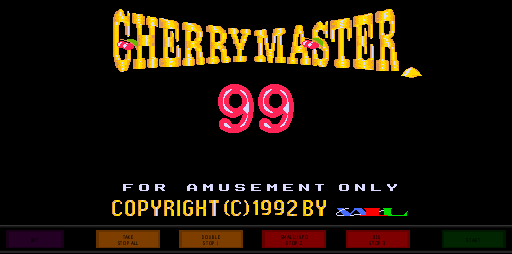

Cherry Master '99 (QL-1 V9B.00, USA long PCB) png snap

Cherry Master '99 (QL-1 V9B.00, USA long PCB) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
cmast99d	6496	22/01/2026 15:17:36	512	254	96	96	0	Format24bppRgb	305:MAME 0.284 (mame0284)	486530ebfe720b77e1108242770f5acf86c6aaf0

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
cmast_99_m27c512_usa_board_long.bin	65536	5f209e97	a9b90db26c172d7c24cbb338d5a76cb0397fb3cd	maincpu	0	good	no
cm99-041-7.u16	32768	69e2aef2	195faec239734650dcd777d55a8da84e3a0ed50c	gfx1	0	good	no	cm99-041-7.u16
cm99-041-6.u11	32768	900f36f5	0fd41f8c8cb2f7940b653a1fad93df2e3f28a34b	gfx1	8000	good	no	cm99-041-6.u11
cm99-041-5.u4	32768	3e465e38	847dc27e45d495cb924b3fd5ce8e68a1cb83ffc8	gfx1	10000	good	no	cm99-041-5.u4
cm99-041-4.u15	8192	6b870b29	d65f24817d9d45c148cb857439b46e9e75dabfe7	gfx2	0	good	no	cm99-041-4.u15
cm99-041-3.u10	8192	8a0b205f	3afea0464b793526bf23610cac6736a31edc7ec2	gfx2	2000	good	no	cm99-041-3.u10
cm99-041-2.u14	8192	c84dba45	ab4ac891a23d6b9a216df046d516e868c77e8a36	gfx2	4000	good	no	cm99-041-2.u14
cm99-041-1.u9	8192	9e337e9c	58aacc09d59f04d7686dfec1eb7621969719857f	gfx2	6000	good	no	cm99-041-1.u9
82s129.u84	256	0489b760	78f8632b17a76335183c5c204cdec856988368b0	proms	0	good	no	82s129.u84
82s129.u79	256	21eb5b19	9b8425bdb97f11f4855c998c7792c3291fd07470	proms	100	good	no	82s129.u79
82s129.u46	256	50ec383b	ae95b92bd3946b40134bcdc22708d5c6b0f4c23e	proms2	0	good	no	82s129.u46
gal16v8d.f10	279	6655473e	f7bdd98a5ec5d3fc53332c12ea81c03af02d561a	plds	0	good	no	gal16v8d.f10
palce16v8h.e14	279	4dbf87ec	338d9fabba8928e25ca39fbe717c5e6ce35b7278	plds	200	good	no	palce16v8h.e14
palce16v8h.f14	279	12a5e577	ee5ea1afef775db3a9f848b5cc5384bc10b4e349	plds	400	good	no	palce16v8h.f14
palce16v8h.g13	279	deee0b94	3682affbe803ffa8b436346f159c3818d6714d1a	plds	600	good	no	palce16v8h.g13
peel18cv8_inside.i15	341	77eaa6fb	33c1e00bef82b526d21e628077a8eaf96b9c1d3a	plds2	0	good	no	peel18cv8_inside.i15
peel18cv8_edge.j15	341	b0395c06	12b79dffda76c75abe30f36c74b53a87a42de735	plds2	200	good	no	peel18cv8_edge.j15

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

tag	name
:maincpu	z80
:ppi8255_0	i8255
:ppi8255_1	i8255
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:nvram	nvram
:mono	speaker
:aysnd	ay8910
:hopper	ticket_dispenser

sound

channels
1

input

players	coins	service	tilt
1	4	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
gambling		9		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:IN0
:IN1
:IN2
:hopper:TEST

dipswitch

Minimum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet	DSW1	3

location

name	number	inverted
DSW1	1	no
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
15	3	yes
30	2	no
45	1	no
60	0	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Maximum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Bet	DSW1	24

location

name	number	inverted
DSW1	4	no
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
15	0	no
30	8	no
60	16	no
99	24	yes

Double Picture

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Picture	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Fruit	32	yes
???	0	no

Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Rate	DSW1	64

location

name	number	inverted
DSW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	no
100	64	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	128

location

name	number	inverted
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Main Game Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Payout Rate	DSW2	7

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
55%	0	no
60%	1	no
65%	2	no
70%	3	no
75%	4	no
80%	5	no
85%	6	yes
90%	7	no

Double Up Game Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Payout Rate	DSW2	8

location

name	number	inverted
DSW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
60%	0	no
70%	8	yes

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW2	48

location

name	number	inverted
DSW2	5	no
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/5 Credits	48	no
1 Coin/10 Credits	32	yes
1 Coin/25 Credits	16	no
1 Coin/50 Credits	0	no

Key-In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key-In Rate	DSW2	192

location

name	number	inverted
DSW2	7	no
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100	192	yes
110	128	no
120	64	no
500	0	no

Bonus 2 Poll Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus 2 Poll Mode	DSW3	1

location

name	number	inverted
DSW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	0	yes
Hard	1	no

Bonus 3 Poll Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus 3 Poll Mode	DSW3	2

location

name	number	inverted
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	0	yes
Hard	2	no

???

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
???	DSW3	4

location

name	number	inverted
DSW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
30-40-50	4	yes
40-55-70	0	no

When Watermelon Appear in Center Credit of Bonus Up Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
When Watermelon Appear in Center Credit of Bonus Up Mode	DSW3	8

location

name	number	inverted
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1-3-5	8	yes
2-4-6	0	no

When Bet, Credit of Bonus Up Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
When Bet, Credit of Bonus Up Mode	DSW3	16

location

name	number	inverted
DSW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1-3-5	16	yes
2-4-6	0	no

The Max Credit of Bonus 1-3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
The Max Credit of Bonus 1-3	DSW3	32

location

name	number	inverted
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
999-1999-3999	32	yes
2000-3000-4500	0	no

Start Up Credit of Bonus 1-3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Start Up Credit of Bonus 1-3	DSW3	64

location

name	number	inverted
DSW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
330-660-990	0	no
499-999-1999	64	yes

Start Up Credit of Extra Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Start Up Credit of Extra Bonus	DSW3	128

location

name	number	inverted
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
330	128	yes
550	0	no

Max Pay Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max Pay Credit Limit	DSW4	7

location

name	number	inverted
DSW4	1	no
DSW4	2	no
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5,000	7	no
10,000	6	no
15,000	5	no
20,000	4	no
30,000	3	no
40,000	2	no
50,000	1	no
100,000	0	yes

Display Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Credit Limit	DSW4	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Add On Bonus Poll

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Add On Bonus Poll	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
6-3-1	0	no
9-5-1	16	yes

Add On Bonus Min Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Add On Bonus Min Bet	DSW4	32

location

name	number	inverted
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
16	32	yes
32	0	no

Game Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Speed	DSW4	64

location

name	number	inverted
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	64	yes
Fast	0	no

Alarm Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Alarm Sound	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Key-In Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key-In Limit	DSW5	3

location

name	number	inverted
DSW5	1	no
DSW5	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1,000	0	no
5,000	1	no
10,000	2	no
20,000	3	yes

Bonus Girl

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Girl	DSW5	4

location

name	number	inverted
DSW5	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Credit Earned, Profit Table Set Zero

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Earned, Profit Table Set Zero	DSW5	56

location

name	number	inverted
DSW5	4	no
DSW5	5	no
DSW5	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
20,000	0	no
30,000	8	no
40,000	16	no
50,000	24	no
70,000	32	no
100,000	40	no
200,000	48	no
990,000	56	yes

Bonus 2 Poll Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus 2 Poll Rate	DSW5	64

location

name	number	inverted
DSW5	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	0	yes
Hard	64	no

Bonus 3 Poll Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus 3 Poll Rate	DSW5	128

location

name	number	inverted
DSW5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	0	yes
Hard	128	no
