Concept - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
concept	concept/concept.cpp		no	no	no	yes	Concept	1982	Corvus Systems

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	720	560	59.981819	32728000	944	0	720	578	0	560	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	bios
bootl08h	4096	ee479f51	b20ba18564672196076e46507020c6d69a640a2f	maincpu	10000	good	no	lvl8
bootl08l	4096	acaefd07	de0c7eaacaf4c0652aa45e523cebce2b2993c437	maincpu	10001	good	no	lvl8
cc07h	4096	455abac8	b12e1580220242d34eafed1b486cebd89e823c8b	maincpu	10000	good	no	lvl7
cc07l	4096	107a3830	0ea12ef13b0d11fcd83b306b3a1bb8014ba910c0	maincpu	10001	good	no	lvl7
cc06h	4096	66b6b259	1199a38ef3e94f695e8da6a7c80c6432da3cb80c	maincpu	10000	good	no	lvl6
cc06l	4096	600940d3	c3278bf23b3b1c35ea1e3da48a05e877862a8345	maincpu	10001	good	no	lvl6
sc85180l_3265-02762.u302	4096			omni	0	nodump	no
map04a.bin	1024	1ae0db9b	cdb6f63bb08072b454b4704e62de51c483ede734	proms	0	good	no
mb20h.bin	4096	aa357112	88211e5f59887928c557c27cdea674f48bf8eaf7	macsbug	0	good	no
mb20l.bin	4096	b4b59de9	3e8b8b5950b5359203c054f94af1fc5b8f0495b9	macsbug	1	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	8182000
cpu	omni	Motorola MC6801	5000000
cpu	keyboard:mcu	Intel 8035	4608000
audio	mono	Speaker
audio	spkr	Filtered DAC
audio	sl4:fdc01:fdc01_fdc:0:8sssd:flopsndout	Speaker
audio	sl4:fdc01:fdc01_fdc:0:8sssd:floppysound	Floppy sound	44100
audio	sl4:fdc01:fdc01_fdc:1:8sssd:flopsndout	Speaker
audio	sl4:fdc01:fdc01_fdc:1:8sssd:floppysound	Floppy sound	44100
audio	sl4:fdc01:fdc01_fdc:2:8sssd:flopsndout	Speaker
audio	sl4:fdc01:fdc01_fdc:2:8sssd:floppysound	Floppy sound	44100
audio	sl4:fdc01:fdc01_fdc:3:8sssd:flopsndout	Speaker
audio	sl4:fdc01:fdc01_fdc:3:8sssd:floppysound	Floppy sound	44100

device_ref

name
m68000
m6801
screen
palette
speaker
speaker_sound_device
mm58174
mos6522
mos6551
clock
mos6551
clock
mos6551
clock
concept_kbd
i8035
ipt_merge_all_hi
a2bus
a2bus_slot
a2bus_slot
a2bus_slot
a2bus_slot
crvfdc01
fd1793
floppy_connector
floppy_8_sssd
speaker
flopsnd
floppy_connector
floppy_8_sssd
speaker
flopsnd
floppy_connector
floppy_8_sssd
speaker
flopsnd
floppy_connector
floppy_8_sssd
speaker
flopsnd
ipt_merge_any_hi
rs232
rs232

biosset

name	description	default
lvl8	Level 8	no
lvl7	Level 7	no
lvl6	Level 6	no

sound

channels
5

device, instance

type	tag	interface	name	briefname
floppydisk	sl4:fdc01:fdc01_fdc:0:8sssd	floppy_8	floppydisk1	flop1
floppydisk	sl4:fdc01:fdc01_fdc:1:8sssd	floppy_8	floppydisk2	flop2
floppydisk	sl4:fdc01:fdc01_fdc:2:8sssd	floppy_8	floppydisk3	flop3
floppydisk	sl4:fdc01:fdc01_fdc:3:8sssd	floppy_8	floppydisk4	flop4

device, extension

type	tag	interface	extension_names
floppydisk	sl4:fdc01:fdc01_fdc:0:8sssd	floppy_8	mfi, dfi, mfm, td0, imd, 86f
floppydisk	sl4:fdc01:fdc01_fdc:1:8sssd	floppy_8	mfi, dfi, mfm, td0, imd, 86f
floppydisk	sl4:fdc01:fdc01_fdc:2:8sssd	floppy_8	mfi, dfi, mfm, td0, imd, 86f
floppydisk	sl4:fdc01:fdc01_fdc:3:8sssd	floppy_8	mfi, dfi, mfm, td0, imd, 86f

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		91		no

port, analog

port_tag	analog_masks
:DSW0
:keyboard:KEYS0
:keyboard:KEYS1
:keyboard:KEYS2
:keyboard:KEYS3
:keyboard:KEYS4
:keyboard:KEYS5
:keyboard:KEYS6
:keyboard:KEYS7
:keyboard:KEYS8
:keyboard:KEYS9
:keyboard:KEYSA
:keyboard:KEYSB

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
sl1	fdc02	crvfdc02	no
sl1	fdc01	crvfdc01	no
sl1	fchdd	a2corvus	no
sl2	fdc02	crvfdc02	no
sl2	fdc01	crvfdc01	no
sl2	fchdd	a2corvus	no
sl3	fdc02	crvfdc02	no
sl3	fdc01	crvfdc01	no
sl3	fchdd	a2corvus	no
sl4	fdc02	crvfdc02	no
sl4	fdc01	crvfdc01	yes
sl4	fchdd	a2corvus	no
sl4:fdc01:fdc01_fdc:0	8sssd	floppy_8_sssd	yes
sl4:fdc01:fdc01_fdc:1	8sssd	floppy_8_sssd	yes
sl4:fdc01:fdc01_fdc:2	8sssd	floppy_8_sssd	yes
sl4:fdc01:fdc01_fdc:3	8sssd	floppy_8_sssd	yes
rs232a	terminal	serial_terminal	no
rs232a	sunkbd	sunkbd_adaptor	no
rs232a	dec_loopback	dec_rs232_loopback	no
rs232a	ie15	ie15_terminal	no
rs232a	null_modem	null_modem	no
rs232a	keyboard	serial_keyboard	no
rs232a	patch	rs232_patch_box	no
rs232a	swtpc8212	swtpc8212_terminal	no
rs232a	printer	serial_printer	no
rs232a	scorpion	scorpion_ic	no
rs232a	loopback	rs232_loopback	no
rs232a	mockingboard	mockingboardd	no
rs232a	msystems_mouse	rs232_mouse_hle_msystems	no
rs232a	nss_tvi	nss_tvinterface	no
rs232a	rs232_sync_io	rs232_sync_io	no
rs232a	pty	pseudo_terminal	no
rs232a	votraxtnt	serial_votraxtnt	no
rs232a	rs_printer	rs_serial_printer	no
rs232b	terminal	serial_terminal	no
rs232b	sunkbd	sunkbd_adaptor	no
rs232b	dec_loopback	dec_rs232_loopback	no
rs232b	ie15	ie15_terminal	no
rs232b	null_modem	null_modem	no
rs232b	keyboard	serial_keyboard	no
rs232b	patch	rs232_patch_box	no
rs232b	swtpc8212	swtpc8212_terminal	no
rs232b	printer	serial_printer	no
rs232b	scorpion	scorpion_ic	no
rs232b	loopback	rs232_loopback	no
rs232b	mockingboard	mockingboardd	no
rs232b	msystems_mouse	rs232_mouse_hle_msystems	no
rs232b	nss_tvi	nss_tvinterface	no
rs232b	rs232_sync_io	rs232_sync_io	no
rs232b	pty	pseudo_terminal	no
rs232b	votraxtnt	serial_votraxtnt	no
rs232b	rs_printer	rs_serial_printer	no

dipswitch

Omninet Address bit 0

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Omninet Address bit 0	DSW0	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Omninet Address bit 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Omninet Address bit 1	DSW0	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	2	yes

Omninet Address bit 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Omninet Address bit 2	DSW0	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Omninet Address bit 3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Omninet Address bit 3	DSW0	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Omninet Address bit 4

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Omninet Address bit 4	DSW0	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Omninet Address bit 5

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Omninet Address bit 5	DSW0	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

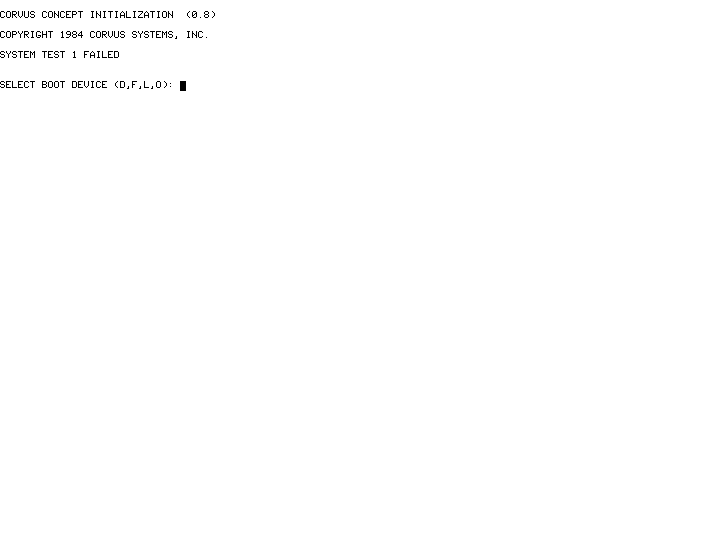

Type of Boot

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Type of Boot	DSW0	192

value

name	value	default
Prompt for type of Boot	0	yes
Boot from Omninet	64	no
Boot from Local Disk	128	no
Boot from Diskette	192	no
