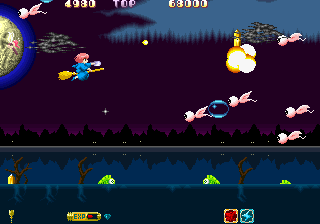

Cotton (set 1, Japan, Rev A) (bootleg of FD1094 317-0179a set) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cottonjad	sega/segas16b.cpp		no	no	no	yes	Cotton (set 1, Japan, Rev A) (bootleg of FD1094 317-0179a set)	1991	bootleg	cotton	cotton

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
bootleg_epr-13858a.a7	131072	f048fba4	8e4343dc48012ae90c593f73f096de50a46ee62d	maincpu	0	good	no
bootleg_epr-13856a.a5	131072	04f5bbe1	77dfb0cb15b8711c7efdd2ca9a6a03613eb83950	maincpu	1	good	no
bootleg_epr-13859a.a8	131072	fc259bef	078d744b9647d816b0b018de2370a1ed1010103b	maincpu	40000	good	no
bootleg_epr-13857a.a6	131072	e191e939	49d3365940e6a236f816ebf584684fa2617d5858	maincpu	40001	good	no
opr-13862.a14	131072	a47354b6	ce52813b245f1d491a134d4bd5ab074e71d20129	gfx1	0	good	no	opr-13862.a14
opr-13877.b14	131072	d38424b5	884ca190936aee2d2cac86491d4d0cdf4a45efe5	gfx1	20000	good	no	opr-13877.b14
opr-13863.a15	131072	8c990026	07b4510936376c171f3b31d87ac6154361eb0cbc	gfx1	40000	good	no	opr-13863.a15
opr-13878.b15	131072	21c15b8a	690d92420ec5465885e0f4870419992961420e33	gfx1	60000	good	no	opr-13878.b15
opr-13864.a16	131072	d2b175bf	897b7c794d0e7229ea5e9a682f64266a947a818f	gfx1	80000	good	no	opr-13864.a16
opr-13879.b16	131072	b9d62531	e8c5e7b93339c00f75a3b66ce18f7838255577be	gfx1	a0000	good	no	opr-13879.b16
opr-13869.b5	131072	ab4b3468	3071654a295152d609d2c2c1d4153b5ba3f174d5	sprites	0	good	no	opr-13869.b5
opr-13865.b1	131072	7024f404	4b2f9cdfdd97218797a3e386106e53f713b8650d	sprites	1	good	no	opr-13865.b1
opr-13870.b6	131072	69b41ac3	4c5a85e5a5ca9f8260557d4e97eb091dd857d63a	sprites	40000	good	no	opr-13870.b6
opr-13866.b2	131072	6169bba4	a24a418ee7cd0c1109870a2e7a91e430671897ed	sprites	40001	good	no	opr-13866.b2
opr-13871.b7	131072	0801cf02	3007bbbce2f327f4700e78e2b8672f4482189cd7	sprites	80000	good	no	opr-13871.b7
opr-13867.b3	131072	b014f02d	46f5ed0b44cee03a6aec9ec57b506bb15bf35e47	sprites	80001	good	no	opr-13867.b3
opr-13872.b8	131072	f066f315	bbeb24daaded994240d0cdb5cec2e662b677cb75	sprites	c0000	good	no	opr-13872.b8
opr-13868.b4	131072	e62a7cd6	1e6d06345f7b6cef2e887d9b9cd45e0155140c5e	sprites	c0001	good	no	opr-13868.b4
opr-13873.b10	131072	1bd145f3	4744ffe9fbda453785345b46eb61b56730048f42	sprites	100000	good	no	opr-13873.b10
opr-13852.a1	131072	943aba8b	d0dd1665a8d9495a92ae4e35d6b15b966e8d43cd	sprites	100001	good	no	opr-13852.a1
opr-13874.b11	131072	4fd59bff	2b4630e49b60593d668fe34d8faf712ac6928c14	sprites	140000	good	no	opr-13874.b11
opr-13853.a2	131072	7ea93200	8e2d8cd48a12306772653f25bddc99ad0597a698	sprites	140001	good	no	opr-13853.a2
opr-13875.b12	131072	6a66868d	60961a8b1f193d0b08c1906f4a79123fa0db443a	sprites	180000	good	no
opr-13854.a3	131072	1c942190	514fac5cc7362e9e3168c84975c8fe0e34bb4471	sprites	180001	good	no
opr-13876.b13	131072	1c5ffad8	13e5886ceece564cc71ba7f43a26d2b1782ccfc8	sprites	1c0000	good	no	opr-13876.b13
opr-13855.a4	131072	856f3ee2	72346d887ff9738ebe93acb2e3f8cd80d494621e	sprites	1c0001	good	no	opr-13855.a4
epr-13860.a10	32768	6a57b027	8f9de548df203605bb4ab9eececf09739b55adf1	soundcpu	0	good	no
opr-13061.a11	131072	4d21153f	173ddd9633f255c39ca508c37d0562e374704e7b	soundcpu	10000	good	no
315-5298.b9	235	39b47212	432b47aee5ecbf08a8a6dc2f8379c816feb86328	plds	0	good	no	315-5298.b9

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Zilog Z80	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

name
m68000
z80
nvram
sega_315_5195
gfxdecode
palette
screen
sega_sys16b_sprite
segaic16_video
speaker
ym2151
upd7759
netlist_sound
nl_stream_in
nl_stream_in
nl_stream_in
nl_stream_out

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	6

location

name	number	inverted
SW2	2	no
SW2	3	no

value

name	value	default
2	4	no
3	6	yes
4	2	no
5	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	24

location

name	number	inverted
SW2	4	no
SW2	5	no

value

name	value	default
Easy	16	no
Normal	24	yes
Hard	8	no
Hardest	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
