Casiotone 8000 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ct8000	casio/ct8000.cpp		no	no	no	yes	Casiotone 8000	1983	Casio

snap

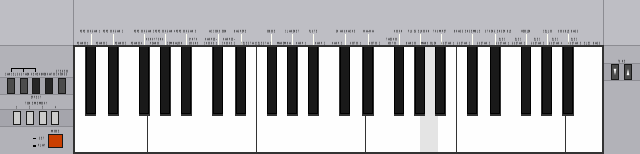

Casiotone 8000 png snap

Casiotone 8000 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
ct8000	6587	29/12/2025 11:31:18	640	154	96	96	0	Format24bppRgb	305:MAMEUI 0.275.0 (2025-02-26)	94297582b7293adf9fa05209f5d6c033e1e5948b

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
upd8049c-364.bin	2048	8c9b3f40	5507117671300fe350df39b4ca70239079a1b0e7	maincpu	0	good	no
ct8000_2732.bin	4096	e6f1f3f9	637a9d2b6be2f12240724c8aa5744c5f28ac4af0	bankrom	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Intel 8049	4946864
audio	speaker	Speaker
audio	mixer	Generic Audio Mixer
audio	upd931a	NEC uPD931	4946864
audio	filter_rc0	RC Filter
audio	filter_bq0	Biquad Filter
audio	filter_rc1	RC Filter
audio	filter_bq1	Biquad Filter
audio	filter_ac0	RC Filter
audio	upd931b	NEC uPD931	4946864
audio	filter_rc2	RC Filter
audio	filter_bq2	Biquad Filter
audio	filter_ac1	RC Filter
audio	bbd	MN3207 BBD
audio	chorus	Generic Audio Mixer

device_ref

tag	name
:maincpu	i8049
:midi	ct8000_midi
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdthru	midi_port
:mdthru:midiout	midiout_port
:mdthru:midiout:midioutimg	midiout
:ioporta	i8243
:ioportb	i8243
:speaker	speaker
:mixer	mixer
:upd931a	upd931
:filter_rc0	filter_rc
:filter_bq0	filter_biquad
:filter_rc1	filter_rc
:filter_bq1	filter_biquad
:filter_ac0	filter_rc
:upd931b	upd931
:filter_rc2	filter_rc
:filter_bq2	filter_biquad
:filter_ac1	filter_rc
:bbd	mn3207
:chorus	mixer

sound

channels
1

feature

type	status	overall
sound		imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdthru:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdthru:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		12		no

port, analog

port_tag	analog_masks
:KC0
:KC1
:KC2
:KC3
:KC4
:KC5
:KC6
:KC7
:KC8
:KC9
:KCA
:KCB
:KCC
:SWITCH
:mdin:midiin:midiinimg:CFG
:midi:CHANNEL

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdthru	midiout	midiout_port	yes

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no

MIDI channel

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI channel	midi:CHANNEL	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	yes
2	1	no
3	2	no
4	3	no
5	4	no
6	5	no
7	6	no
8	7	no
9	8	no
10	9	no
11	10	no
12	11	no
13	12	no
14	13	no
15	14	no
16	15	no
