Casiotone FK-1 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ctfk1	casio/ct8000.cpp		no	no	no	yes	Casiotone FK-1	1983	Casio

snap

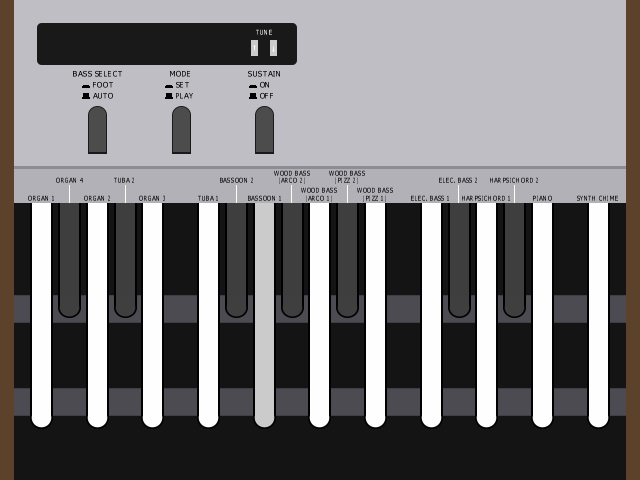

Casiotone FK-1 png snap

Casiotone FK-1 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
ctfk1	14216	29/12/2025 11:31:18	640	480	96	96	0	Format24bppRgb	305:MAMEUI 0.275.0 (2025-02-26)	1c28e41a1767b5d88239d3ee5b2d2966b57ec9e3

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
upd8049c-364.bin	2048	8c9b3f40	5507117671300fe350df39b4ca70239079a1b0e7	maincpu	0	good	no
fk1_2732.bin	4096	f7416356	6d92aa5f377769327451334324f1f32b52951968	bankrom	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Intel 8049	4946864
audio	speaker	Speaker
audio	mixer	Generic Audio Mixer
audio	upd931a	NEC uPD931	4946864
audio	filter_rc0	RC Filter
audio	filter_bq0	Biquad Filter
audio	filter_ac	RC Filter

device_ref

tag	name
:maincpu	i8049
:midi	ct8000_midi
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdthru	midi_port
:mdthru:midiout	midiout_port
:mdthru:midiout:midioutimg	midiout
:ioporta	i8243
:ioportb	i8243
:speaker	speaker
:mixer	mixer
:upd931a	upd931
:filter_rc0	filter_rc
:filter_bq0	filter_biquad
:filter_ac	filter_rc

sound

channels
1

feature

type	status	overall
sound		imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdthru:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdthru:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		5		no

port, analog

port_tag	analog_masks
:KC0
:KC1
:KC2
:KC9
:KCA
:KCB
:mdin:midiin:midiinimg:CFG
:midi:CHANNEL

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdthru	midiout	midiout_port	yes

configuration

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no

MIDI channel

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI channel	midi:CHANNEL	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	yes
2	1	no
3	2	no
4	3	no
5	4	no
6	5	no
7	6	no
8	7	no
9	8	no
10	9	no
11	10	no
12	11	no
13	12	no
14	13	no
15	14	no
16	15	no
