CTK-530 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
ctk530	casio/ctk551.cpp		no	no	no	yes	CTK-530	1995	Casio

snap

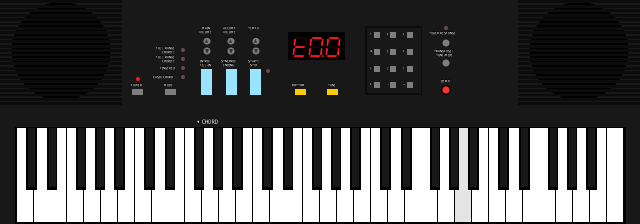

CTK-530 png snap

CTK-530 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
ctk530	9266	29/12/2025 11:31:18	640	224	96	96	0	Format24bppRgb	305:MAME 0.249 (mame0249)	52dc8b7aa0df6778041326f74528b1bf1eae3315

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
ctk530.lsi102	1048576	961bff85	adfd46ef96fb53981b1b66cb89e3d716b0792ef0	lsi102	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Casio GT913F	10000000
audio	maincpu	Casio GT913F	10000000
audio	maincpu:gt_sound	Casio GT913F sound	10000000
audio	speaker	Speaker

device_ref

tag	name
:maincpu	gt913
:maincpu:intc	gt913_intc
:maincpu:gt_sound	gt913_sound_hle
:maincpu:kbd	gt913_kbd_hle
:maincpu:io_hle	gt913_io_hle
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:pwm	pwm_display
:speaker	speaker

sound

channels
1

feature

type	status	overall
sound		imperfect

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdout:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
positional				no	0	127	100	10
keypad		27		no

port, analog

port_tag	analog_masks
:P1
:PLE
:SWITCH
:maincpu:kbd:FI0
:maincpu:kbd:FI1
:maincpu:kbd:FI10
:maincpu:kbd:FI2
:maincpu:kbd:FI3
:maincpu:kbd:FI4
:maincpu:kbd:FI5
:maincpu:kbd:FI6
:maincpu:kbd:FI7
:maincpu:kbd:FI8
:maincpu:kbd:FI9
:maincpu:kbd:KI0
:maincpu:kbd:KI1
:maincpu:kbd:KI2
:maincpu:kbd:VELOCITY	127
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes

configuration

Power Source

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Power Source	P1	128

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
AC Adapter	128	yes
Battery	0	no

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
