name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cybrnaut	pinball/by35.cpp	genpin	no	no	yes	yes	Cybernaut	1985	Bally

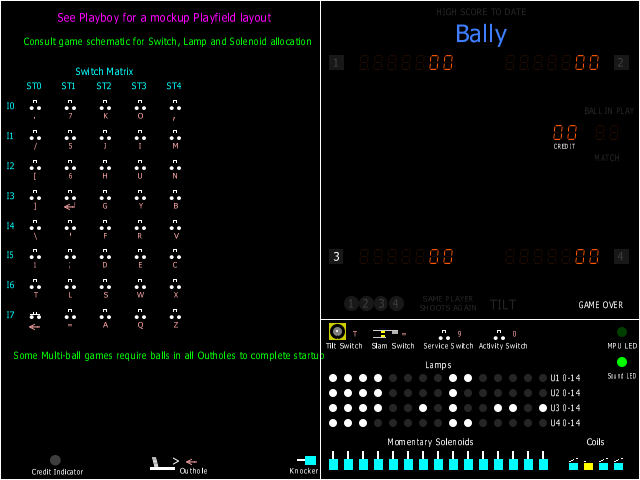

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
cybrnaut	26575	20/03/2026 11:55:59	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	805c4cdbfda29ad35b55d52e2a5cb9f9c27da17d

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
cybe2732.u2	4096	0610b0e0	92f5e8a83240ad03ecc16ece4824b047b77816f7	maincpu	1000	good	no
720-5332.u6	4096	c2e92f80	61de956a4b6e9fb9ef2b25c01bff1fb5972284ad	maincpu	1800	good	no
cybu3.snd	8192	a3c1f6e7	35a5e828a6f2dd9009e165328a005fa079bad6cb	cheap_squeak:cpu	c000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6800	530000
cpu	cheap_squeak:cpu	Motorola MC6803	3579545
audio	mechvol	Speaker
audio	samples	Samples
audio	cheap_squeak	Bally Cheap Squeak Board	3579545
audio	cheap_squeak:dac	ZN429E-8 DAC
audio	mono	Speaker

device_ref

tag	name
:maincpu	m6800
:nvram	nvram
:mechvol	speaker
:samples	samples
:pia_u10	pia6821
:timer_z_freq	timer
:timer_z_pulse	timer
:pia_u11	pia6821
:timer_d_freq	timer
:timer_d_pulse	timer
:cheap_squeak	cheap_squeak
:cheap_squeak:cpu	m6803
:cheap_squeak:dac	zn429e
:mono	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	3	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		33		no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:DSW3
:TEST
:X0
:X1
:X2
:X3
:X4
:cheap_squeak:SW1

dipswitch

Coin Slot 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 1	DSW0	31

location

name	number	inverted
SW0	1	yes
SW0	2	yes
SW0	3	yes
SW0	4	yes
SW0	5	yes

value

name	value	default
1 Coin/1 Credit	0	yes
1 Coin/2 Credits	1	no
1 Coin/3 Credits	2	no
1 Coin/4 Credits	3	no
1 Coin/5 Credits	4	no
1 Coin/6 Credits	5	no
1 Coin/7 Credits	6	no
1 Coin/8 Credits	7	no
1 Coin/9 Credits	8	no
1 Coin/12 Credits	9	no
1 Coin/14 Credits	10	no
2 Coins/1 Credit	11	no
2 Coins/2 Credits	12	no
3 Coins/4 Credits	13	no
2 Coins/4 Credits	14	no
2 Coins/5 Credits	15	no
2 Coins/6 Credits	16	no
2 Coins/7 Credits	17	no
2 Coins/8 Credits	18	no
2 Coins/9 Credits	19	no
2 Coins/12 Credits	20	no
2 Coins/14 Credits	21	no
3 Coins/4 Credits	22	no
4 Coins/3 Credits	23	no
4 Coins/3 Credits	24	no
3 Coins/5 Credits	25	no
2 Coins/7 Credits	26	no
4 Coins/7 Credits	27	no
3 Coins/1 Credit	28	no
4 Coins/1 Credit	29	no
5 Coins/1 Credit	30	no
5 Coins/1 Credit	31	no

S6 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S6 (game specific)	DSW0	32

location

name	number	inverted
SW0	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S7 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S7 (game specific)	DSW0	64

location

name	number	inverted
SW0	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

S8 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S8 (game specific)	DSW0	128

location

name	number	inverted
SW0	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Coin Slot 3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 3	DSW1	31

location

name	number	inverted
SW1	1	yes
SW1	2	yes
SW1	3	yes
SW1	4	yes
SW1	5	yes

value

name	value	default
1 Coin/1 Credit	0	yes
1 Coin/2 Credits	1	no
1 Coin/3 Credits	2	no
1 Coin/4 Credits	3	no
1 Coin/5 Credits	4	no
1 Coin/6 Credits	5	no
1 Coin/7 Credits	6	no
1 Coin/8 Credits	7	no
1 Coin/9 Credits	8	no
1 Coin/12 Credits	9	no
1 Coin/14 Credits	10	no
2 Coins/1 Credit	11	no
2 Coins/2 Credits	12	no
3 Coins/4 Credits	13	no
2 Coins/4 Credits	14	no
2 Coins/5 Credits	15	no
2 Coins/6 Credits	16	no
2 Coins/7 Credits	17	no
2 Coins/8 Credits	18	no
2 Coins/9 Credits	19	no
2 Coins/12 Credits	20	no
2 Coins/14 Credits	21	no
3 Coins/4 Credits	22	no
4 Coins/3 Credits	23	no
4 Coins/3 Credits	24	no
3 Coins/5 Credits	25	no
2 Coins/7 Credits	26	no
4 Coins/7 Credits	27	no
3 Coins/1 Credit	28	no
4 Coins/1 Credit	29	no
5 Coins/1 Credit	30	no
5 Coins/1 Credit	31	no

S14 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S14 (game specific)	DSW1	32

location

name	number	inverted
SW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S15 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S15 (game specific)	DSW1	64

location

name	number	inverted
SW1	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

S16 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S16 (game specific)	DSW1	128

location

name	number	inverted
SW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Coin Slot 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 2	DSW2	15

location

name	number	inverted
SW2	1	yes
SW2	2	yes
SW2	3	yes
SW2	4	yes

value

name	value	default
Same as Slot 1	0	yes
1 Coin/1 Credit	1	no
1 Coin/2 Credits	2	no
1 Coin/3 Credits	3	no
1 Coin/4 Credits	4	no
1 Coin/5 Credits	5	no
1 Coin/6 Credits	6	no
1 Coin/7 Credits	7	no
1 Coin/8 Credits	8	no
1 Coin/9 Credits	9	no
1 Coin/10 Credits	10	no
1 Coin/11 Credits	11	no
1 Coin/12 Credits	12	no
1 Coin/13 Credits	13	no
1 Coin/14 Credits	14	no
1 Coin/15 Credits	15	no

S21 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S21 (game specific)	DSW2	16

location

name	number	inverted
SW2	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

S22 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S22 (game specific)	DSW2	32

location

name	number	inverted
SW2	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S23 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S23 (game specific)	DSW2	64

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

S24 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S24 (game specific)	DSW2	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Maximum Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Credits	DSW3	3

location

name	number	inverted
SW3	1	yes
SW3	2	yes

value

name	value	default
10	0	yes
15	1	no
25	2	no
40	3	no

Credits Displayed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Displayed	DSW3	4

location

name	number	inverted
SW3	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Match Feature

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match Feature	DSW3	8

location

name	number	inverted
SW3	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

S29 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S29 (game specific)	DSW3	16

location

name	number	inverted
SW3	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

S30 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S30 (game specific)	DSW3	32

location

name	number	inverted
SW3	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Balls Per Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls Per Game	DSW3	192

location

name	number	inverted
SW3	7	yes
SW3	8	yes

value

name	value	default
5	64	no
4	128	no
3	0	yes
2	192	no

clones

name	description
spacehaw	Space Hawks
