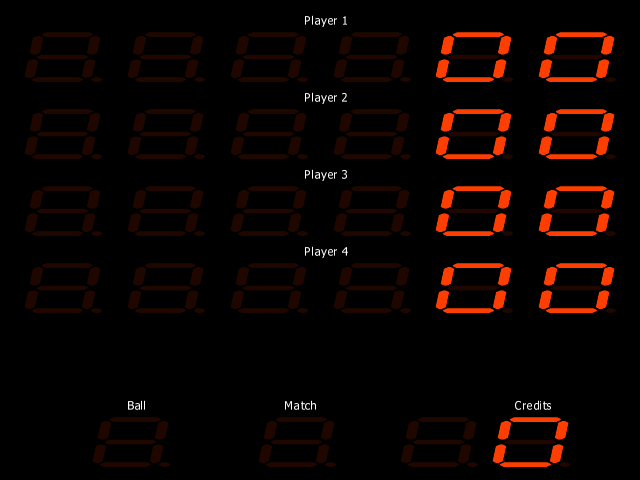

Cyclopes (12/85) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cyclopes	pinball/gp_2.cpp	genpin	no	no	yes	yes	Cyclopes (12/85)	1985	Game Plan

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	yes	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
800.a	4096	3e9628e5	4dad9e082a9f4140162bc155f2b0f0a948ba012f	maincpu	0	good	no
800.b	4096	3f945c46	25eb543e0b0edcd0a0dcf8e4aa1405cda55ebe2e	maincpu	1000	good	no
800.c	4096	7ea18e65	e86d82e3ba659499dfbf14920b196252784724f7	maincpu	2000	good	no
800.snd	4096	290db3d2	a236594f7a89969981bd5707d6dfbb5120fb8f46	cpu2	3800	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	2457600
audio	mechvol	Speaker
audio	samples	Samples

device_ref

name
z80
nvram
speaker
samples
i8255
z80ctc
z80ctc_channel
z80ctc_channel
z80ctc_channel
z80ctc_channel
clock

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
1

feature

type	status	overall
sound	unemulated

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		36		no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:DSW3
:X7
:X8
:X9
:XA
:XB

dipswitch

Coin Slot 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 1	DSW0	31

value

name	value	default
2 Coins/3 Credits	0	no
1 Coin/1 Credit	2	yes
2 Coins/1 Credit	3	no
1 Coin/2 Credits	4	no
2 Coins/2 Credits	5	no
1 Coin/3 Credits	6	no
2 Coins/3 Credits	7	no
1 Coin/4 Credits	8	no
2 Coins/4 Credits	9	no
1 Coin/5 Credits	10	no
2 Coins/5 Credits	11	no
1 Coin/6 Credits	12	no
2 Coins/6 Credits	13	no
1 Coin/7 Credits	14	no
2 Coins/7 Credits	15	no
1 Coin/8 Credits	16	no
2 Coins/8 Credits	17	no
1 Coin/9 Credits	18	no
2 coins 9 credits	19	no
1 coin 10 credits	20	no
2 coins 10 credits	21	no
1 coin 11 credits	22	no
2 coins 11 credits	23	no
1 coin 12 credits	24	no
2 coins 12 credits	25	no
1 coin 13 credits	26	no
2 coins 13 credits	27	no
1 coin 14 credits	28	no
2 coins 14 credits	29	no
1 coin 15 credits	30	no
2 coins 15 credits	31	no

Special lights at

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Special lights at	DSW0	96

value

name	value	default
60000	96	no
90000	64	no
120000	32	no
150000	0	yes

Free Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Play	DSW0	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Coin Slot 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 2	DSW1	15

value

name	value	default
Same as Slot 1	0	yes
1 Coin/1 Credit	1	no
1 Coin/2 Credits	2	no
1 Coin/3 Credits	3	no
1 Coin/4 Credits	4	no
1 Coin/5 Credits	5	no
1 Coin/6 Credits	6	no
1 Coin/7 Credits	7	no
1 Coin/8 Credits	8	no
1 Coin/9 Credits	9	no
1 coin 10 credits	10	no
1 coin 11 credits	11	no
1 coin 12 credits	12	no
1 coin 13 credits	13	no
1 coin 14 credits	14	no
1 coin 15 credits	15	no

Music

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Music	DSW1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

Extra Ball

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball	DSW1	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Remember Saucer Values

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Saucer Values	DSW1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	64	yes

Extra Ball lights at

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball lights at	DSW1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
100000	128	yes
150000	0	no

Coin Slot 3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 3	DSW2	31

value

name	value	default
2 Coins/3 Credits	0	no
1 Coin/1 Credit	2	yes
2 Coins/1 Credit	3	no
1 Coin/2 Credits	4	no
2 Coins/2 Credits	5	no
1 Coin/3 Credits	6	no
2 Coins/3 Credits	7	no
1 Coin/4 Credits	8	no
2 Coins/4 Credits	9	no
1 Coin/5 Credits	10	no
2 Coins/5 Credits	11	no
1 Coin/6 Credits	12	no
2 Coins/6 Credits	13	no
1 Coin/7 Credits	14	no
2 Coins/7 Credits	15	no
1 Coin/8 Credits	16	no
2 Coins/8 Credits	17	no
1 Coin/9 Credits	18	no
2 coins 9 credits	19	no
1 coin 10 credits	20	no
2 coins 10 credits	21	no
1 coin 11 credits	22	no
2 coins 11 credits	23	no
1 coin 12 credits	24	no
2 coins 12 credits	25	no
1 coin 13 credits	26	no
2 coins 13 credits	27	no
1 coin 14 credits	28	no
2 coins 14 credits	29	no
1 coin 15 credits	30	no
2 coins 15 credits	31	no

Remember Bonus Multiplier

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Bonus Multiplier	DSW2	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Balls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls	DSW2	192

value

name	value	default
1	0	no
2	64	no
3	128	yes
5	192	no

Remember Special and Extra Ball lanes

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Special and Extra Ball lanes	DSW3	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Max number of credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Max number of credits	DSW3	6

value

name	value	default
10	0	no
20	2	no
30	4	yes
40	6	no

Award

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Award	DSW3	24

value

name	value	default
None	0	no
50000 points	8	no
Extra Ball	16	no
Replay	24	yes

Match

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match	DSW3	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Credits for exceeding high score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits for exceeding high score	DSW3	192

value

name	value	default
0	0	no
1	64	no
2	128	yes
3	192	no
