CZ-101 - mame (0286) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
cz101	casio/cz101.cpp		no	no	no	yes	CZ-101	1984	Casio

snap

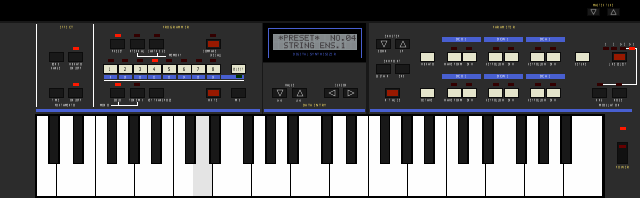

CZ-101 png snap

CZ-101 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
cz101	11642	29/12/2025 11:31:19	640	198	96	96	0	Format24bppRgb	305:MAME 0.260.0 (Oct 25 2023)	6c9874945ac7dd4b4a3549bb045619958abac275

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	lcd	0	97	19	50.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
hn613256ps40.bin	32768	c417bc57	2aa5bfb76dc0a56797cf5dd547197816cedfa370	program	0	good	no		v2
hn613256pn26.bin	32768	e6c7780e	52ff2c280392e104e84b05288c2b952fc29b50f4	program	0	good	no		v1
upd7811g-120.bin	4096	597ac04a	96451a764296eaa22aaad3cba121226dcba865f4	maincpu	0	good	no
init_ram.bin	4096	11010fa5	a5f33408cc2852c8429b828849675d231c370831	nvram	0	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC uPD7811	10000000
audio	speaker	Speaker
audio	upd933	NEC uPD933	4480000

device_ref

tag	name
:maincpu	upd7811
:midi_clock	clock
:nvram	nvram
:cart	casio_ra3
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdout	midi_port
:mdout:midiout	midiout_port
:mdout:midiout:midioutimg	midiout
:screen	screen
:palette	palette
:hd44780	hd44780
:speaker	speaker
:upd933	upd933

biosset

name	description	default
v2	Version II	no
v1	Version I	no

sound

channels
1

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
cartridge	cart	cz_cart			cartridge	cart
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdout:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
cartridge	cart	cz_cart			bin
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdout:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
paddle				no	0	255	100	10
keypad		51		no

port, analog

port_tag	analog_masks
:AN1	255
:AN2
:PB
:kc0
:kc1
:kc10
:kc11
:kc12
:kc13
:kc14
:kc15
:kc2
:kc3
:kc4
:kc5
:kc6
:kc7
:kc8
:kc9
:mdin:midiin:midiinimg:CFG

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdout	midiout	midiout_port	yes

configuration

Battery Level

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Battery Level	AN2	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	255	yes
Low	0	no

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no
