DAG Z80 Trainer - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
dagz80	trainer/selz80.cpp		no	no	no	yes	DAG Z80 Trainer	1988	DAG	selz80	selz80

snap

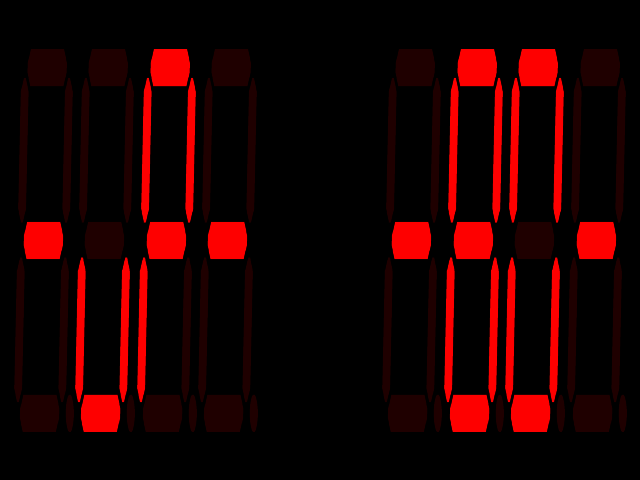

DAG Z80 Trainer png snap

DAG Z80 Trainer jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
dagz80	12775	02/03/2026 16:27:42	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	3ad5881790df11179ca2bde6bfcdbb770ec9cede

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	yes	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
moni_1.5_15.08.1988.bin	8192	318aee6e	c698fdee401b88e673791aabcba6a9628938a075	user1	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	2457600

device_ref

tag	name
:maincpu	z80
:display	pwm_display
:uart_clock	clock
:uart	i8251
:rs232	rs232
:i8279	i8279

sound

channels
0

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keyboard		32		no

port, analog

port_tag	analog_masks
:BJ
:X0
:X1
:X2
:X3

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	h19	serial_heath_h19	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no

dipswitch

Baud Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Baud Rate	BJ	15

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
9600	0	yes
4800	1	no
2400	2	no
1200	3	no
600	4	no
300	5	no
150	6	no
75	7	no
38	8	no
18	9	no
9	10	no
