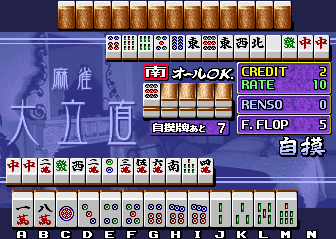

Mahjong Dai-Reach (Japan, TSM012-C01) - mame (0281) machine

MAME: 0281 - Released: 2025-09-24T18:40:45 - Machines: 49006 - rom: 365545 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
daireach	dynax/ddenlovr.cpp		no	no	no	yes	Mahjong Dai-Reach (Japan, TSM012-C01)	2001	Techno-Top

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	336	239	60.853200								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
01202.5c	524288	2d1cc94d	4db6ea0414abfaf21c5bdd5e1cf395b01db1dce6	maincpu	0	good	no
01203.11c	2097152	da054dbf	80bab808711e6eb1521b68faee4b6ee7af001811	blitter	0	good	no
01204.11a	2097152	ac96b1fc	c045b048a8226c2fb3ba6feee36ce487c7ba12d2	blitter	400000	good	no
01201.1c	524288	9a638bc8	c584ea5f8fcfc03fd8e04a5da182388d8a707df1	oki	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Toshiba TMPZ84C015	8000000
audio	mono	Speaker
audio	ym2413	YM2413 OPLL	3579545
audio	aysnd	AY-3-8910A PSG	3579545
audio	oki	OKI MSM6295 ADPCM	1022727

device_ref

name
tmpz84c015
z80sio
z80sio_channel
z80sio_channel
z80ctc
z80ctc_channel
z80ctc_channel
z80ctc_channel
z80ctc_channel
z80pio
screen
palette
speaker
ym2413
ay8910
okim6295
msm6242

sound

channels
1

input

players	coins	service	tilt
2	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
mahjong	1	26		no
gambling	1	2		no
mahjong	2	26		no

port, analog

port_tag	analog_masks
:BET
:DSW1
:DSW2
:DSW3
:DSW4
:DSWTOP
:HOPPER
:KEY0
:KEY1
:KEY2
:KEY3
:KEY4
:KEY5
:KEY6
:KEY7
:KEY8
:KEY9
:SYSTEM

dipswitch

Bets?

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bets?	BET	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	64	yes
1	0	no

Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Rate	DSW1	15

location

name	number	inverted
DIP-SW1	1	no
DIP-SW1	2	no
DIP-SW1	3	no
DIP-SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
50%	0	no
53%	1	no
56%	2	no
59%	3	no
62%	4	no
65%	5	no
68%	6	no
71%	7	yes
75%	8	no
78%	9	no
81%	10	no
84%	11	no
87%	12	no
90%	13	no
93%	14	no
96%	15	no

Odds Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Odds Rate	DSW1	48

location

name	number	inverted
DIP-SW1	5	no
DIP-SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 2 4 8 12 16 24 32	48	no
1 2 3 5 8 15 30 50	0	yes
2 3 6 8 12 15 30 50	32	no
1 2 3 5 10 25 50 100	16	no

Maximum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Bet	DSW1	192

location

name	number	inverted
DIP-SW1	7	no
DIP-SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	192	no
5	128	no
10	64	yes
20	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW2	3

location

name	number	inverted
DIP-SW2	1	no
DIP-SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	3	yes
1 Coin/2 Credits	2	no
1 Coin/5 Credits	1	no
1 Coin/10 Credits	0	no

Minimum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet	DSW2	12

location

name	number	inverted
DIP-SW2	3	no
DIP-SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	12	yes
2	8	no
3	4	no
5	0	no

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW2	48

location

name	number	inverted
DIP-SW2	5	no
DIP-SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	48	no	DSW2	3	eq	3
600	48	no	DSW2	3	eq	2
1500	48	no	DSW2	3	eq	1
3000	48	no	DSW2	3	eq	0
500	32	no	DSW2	3	eq	3
1000	32	no	DSW2	3	eq	2
2500	32	no	DSW2	3	eq	1
5000	32	no	DSW2	3	eq	0
700	16	no	DSW2	3	eq	3
1400	16	no	DSW2	3	eq	2
3500	16	no	DSW2	3	eq	1
7000	16	no	DSW2	3	eq	0
1000	0	yes	DSW2	3	eq	3
2000	0	yes	DSW2	3	eq	2
5000	0	yes	DSW2	3	eq	1
10000	0	yes	DSW2	3	eq	0

Double Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Bet	DSW2	64

location

name	number	inverted
DIP-SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Last Chance

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Last Chance	DSW2	128

location

name	number	inverted
DIP-SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	no
On	0	yes

Yakuman Chance Cycle

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Yakuman Chance Cycle	DSW3	7

location

name	number	inverted
DIP-SW3	1	no
DIP-SW3	2	no
DIP-SW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
None	7	no
First time only	6	no
Every 300 coins	5	no
Every 500 coins	4	yes
Every 700 coins	3	no
Every 1000 coins	2	no

Yakuman Chances Per Cycle

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Yakuman Chances Per Cycle	DSW3	8

location

name	number	inverted
DIP-SW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	yes
2	8	no

Auto Reach

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Auto Reach	DSW3	16

location

name	number	inverted
DIP-SW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Don Den Button

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Don Den Button	DSW3	32

location

name	number	inverted
DIP-SW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Start	32	no
Flip Flop	0	yes

Medal Timer

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Medal Timer	DSW3	64

location

name	number	inverted
DIP-SW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Game Style

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Style	DSW3	128

location

name	number	inverted
DIP-SW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Credit	128	yes
Credit timer	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW4	1

location

name	number	inverted
DIP-SW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

In-Game Music

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
In-Game Music	DSW4	2

location

name	number	inverted
DIP-SW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Show Renchan Gal

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Renchan Gal	DSW4	4

location

name	number	inverted
DIP-SW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes

Renchan Gal Display

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Renchan Gal Display	DSW4	8

location

name	number	inverted
DIP-SW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
After every win	8	no
After 3 consecutive wins	0	yes

Game Screen Gal Action

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Screen Gal Action	DSW4	16

location

name	number	inverted
DIP-SW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	no
On	0	yes

In-Game Voice

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
In-Game Voice	DSW4	32

location

name	number	inverted
DIP-SW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Winning Yakuman Display Voice

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Winning Yakuman Display Voice	DSW4	64

location

name	number	inverted
DIP-SW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Hopper Polarity

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Polarity	DSW4	128

location

name	number	inverted
DIP-SW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	128	yes
Inverted	0	no

Credits Per Note

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Per Note	DSWTOP	1

location

name	number	inverted
DIP-SW1	9	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	1	no	DSW2	3	eq	3
10	1	no	DSW2	3	eq	2
25	1	no	DSW2	3	eq	1
50	1	no	DSW2	3	eq	0
10	0	yes	DSW2	3	eq	3
20	0	yes	DSW2	3	eq	2
50	0	yes	DSW2	3	eq	1
100	0	yes	DSW2	3	eq	0

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSWTOP	2

location

name	number	inverted
DIP-SW1	10	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Computer Strength

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Computer Strength	DSWTOP	12

location

name	number	inverted
DIP-SW2	9	no
DIP-SW2	10	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Weak	0	no
Normal	4	no
Somewhat strong	8	yes
Strong	12	no

Start Method With Credit Timer

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Start Method With Credit Timer	DSWTOP	16

location

name	number	inverted
DIP-SW3	9	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	16	yes
Always minimum bet	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWTOP	32

location

name	number	inverted
DIP-SW3	10	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWTOP	64

location

name	number	inverted
DIP-SW4	9	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSWTOP	128

location

name	number	inverted
DIP-SW4	10	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	HOPPER	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	SYSTEM	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no
