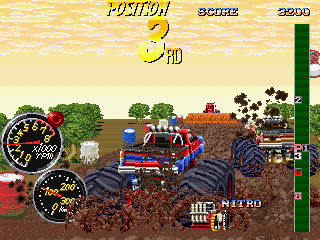

Double Axle (US, Rev 1, set 1) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
dblaxle	taito/taito_z.cpp		no	no	no	yes	Double Axle (US, Rev 1, set 1)	1991	Taito America Corporation

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	240	60.055992	6671500	424	0	320	262	16	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
c78_49-1.2	131072	a6f0c631	371cb7807d2350ceca36fc0fb6a65d3179c011b0	maincpu	0	good	no
c78_51-1.4	131072	ef24e83b	a0bc1d2192bccfcb6f859aa0a27f43cc92080e1e	maincpu	1	good	no
c78_50-1.3	131072	8b0440f4	31f7fcb8acfac13bbf2036670b665744acd37d25	maincpu	40000	good	no
c78_53-1.5	131072	2bb91763	a7cd2ac9f3937d88194d7c994d76abc89cc30f4d	maincpu	40001	good	no
c78-30-1.35	131072	026aac18	f50873982b4dc0fc822060f4c20c635efdd75d7e	sub	0	good	no
c78-31-1.36	131072	67ce23e8	983e998a79e3d4376b005c92ded050be236d37cc	sub	1	good	no
c78-34.42	131072	f2186943	2e9aed39fddf3aa1db7e20f8a709b6b82cc3e7df	audiocpu	0	good	no
c78-10.12	524288	44b1897c	7ad179db6d7dfeb139ea13cb4a231f99d177f2b1	tc0480scp	0	good	no
c78-11.11	524288	7db3d4a3	fc3c44ed36b212688a5bd8dc61321a994578258e	tc0480scp	2	good	no
c78-08.25	1048576	6c725211	3c1765f44fe57b496d305e994516674f71bd4c3c	sprites	0	good	no
c78-07.33	1048576	9da00d5b	f6b664c7495b936ce1b99852da45ec92cb37062a	sprites	2	good	no
c78-06.23	1048576	8309e91b	3f27557bc82bf42cc77e3c7e363b51a0b119144d	sprites	4	good	no
c78-05.31	1048576	90001f68	5c08dfe6a2e12e6ca84035815563f38fc2c2c029	sprites	6	good	no
c78-09.12	524288	0dbde6f5	4049271e3738b54e0c56d191889b1aea5664d49f	tc0150rod	0	good	no
c78-04.3	524288	cc1aa37c	cfa2eb338dc81c98c637c2f0b14d2baea8b115f5	spritemap	0	good	no
c78-12.33	1048576	b0267404	ffd337336ff9b096e3725f733364762f6e6d3fab	ymsnd:adpcma	0	good	no
c78-13.46	524288	1b363aa2	0aae3988024654e98cc0c784307b1c329c8f0783	ymsnd:adpcma	100000	good	no
c78-14.31	524288	9cad4dfb	9187ef827a3f1bc9233d0e45e72c72c0956c5912	ymsnd:adpcmb	0	good	no
c78-25.15	65536	7245a6f6	5bdde4e3bcde8c59dc84478c3cc079d7ef8ee9c5	user2	0	good	no
c78-15.22	256	fbf81f30	c868452c334792345dcced075f6df69cff9e31ca	user2	0	good	no
c78-21.74	256	2926bf27	bfbbe6c71bb29a05959f3de0d940816139f9ebfe	user2	0	good	no
c84-10.16	1024	643e8bfc	a6e6086fb8fbd102e01ec72fe60a4232f5909565	user2	0	good	no
c84-11.17	1024	10728853	45d7cc8e06fbe01295cc2194bca9586f0ef8b12b	user2	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	16000000
cpu	audiocpu	Zilog Z80	4000000
cpu	sub	Motorola MC68000	16000000
audio	speaker	Speaker
audio	ymsnd	YM2610 OPNB	8000000
audio	2610.1.r	Volume Filter
audio	2610.1.l	Volume Filter
audio	2610.2.r	Volume Filter
audio	2610.2.l	Volume Filter

device_ref

name
m68000
z80
m68000
tc0510nio
watchdog
screen
gfxdecode
palette
tc0480scp
tc0150rod
speaker
ym2610
filter_volume
filter_volume
filter_volume
filter_volume
tc0140syt

sound

channels
1

feature

type	status	overall
graphics	imperfect

input

players	coins	service	tilt
1	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
paddle		5		no	64	192	100	4

port, analog

port_tag	analog_masks
:DSWA
:DSWB
:IN0
:IN1
:IN2
:STEER	255

dipswitch

Handle Pulse

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Handle Pulse	DSWA	1

location

name	number	inverted
SW A	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	1	yes
Fast	0	no

Gear shift

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Gear shift	DSWA	2

location

name	number	inverted
SW A	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	2	yes
Inverted	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSWA	4

location

name	number	inverted
SW A	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSWA	8

location

name	number	inverted
SW A	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSWA	48

location

name	number	inverted
SW A	5	no
SW A	6	no

value

name	value	default
4 Coins/1 Credit	0	no
3 Coins/1 Credit	16	no
2 Coins/1 Credit	32	no
1 Coin/1 Credit	48	yes

Price to Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Price to Continue	DSWA	192

location

name	number	inverted
SW A	7	no
SW A	8	no

value

name	value	default
3 Coins/1 Credit	0	no
2 Coins/1 Credit	64	no
1 Coin/1 Credit	128	no
Same as Start	192	yes

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSWB	3

location

name	number	inverted
SW B	1	no
SW B	2	no

value

name	value	default
Easy	2	no
Medium	3	yes
Hard	1	no
Hardest	0	no

Back Gear

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Back Gear	DSWB	4

location

name	number	inverted
SW B	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal	4	no
No Back Gear	0	yes

Vibration Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Vibration Mode	DSWB	8

location

name	number	inverted
SW B	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Partial Vibration	8	yes
All The Time Vibration	0	no

Steering Wheel Vibration

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Steering Wheel Vibration	DSWB	16

location

name	number	inverted
SW B	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

Select Round

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Select Round	DSWB	32

location

name	number	inverted
SW B	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSWB	64

location

name	number	inverted
SW B	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	64	yes

Buy-In

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Buy-In	DSWB	128

location

name	number	inverted
SW B	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
