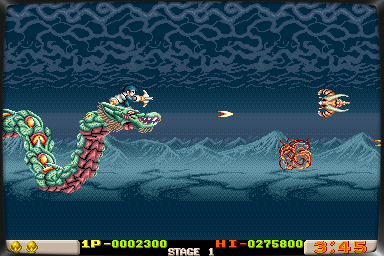

Dragon Breed (Japan, M72 hardware) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
dbreedjm72	irem/m72.cpp		no	no	no	yes	Dragon Breed (Japan, M72 hardware)	1989	Irem	dbreed	dbreed

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	256	55.017606	8000000	512	64	448	284	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional	merge
db_c-h3-.ic43	131072	43425d67	a87339bf299f7e84b9a181f3827278f64a6a29ea	maincpu	1	good	no
db_c-l3-.ic34	131072	9c1abc85	6c73fbec12a7795e327381d886a87bca09a7dff0	maincpu	0	good	no
db_c-h0-.ic40	65536	5aa79fb2	b7b862699ddccf90cf18d3822703078668aa1dc7	maincpu	60001	good	no
db_c-l0-.ic37	65536	ed0f5e06	9030840b15e83c18d59c884ed08c93c05fa70c5b	maincpu	60000	good	no
db_c-pr-.ic1	4096	8bf2910c	65842c928626077f613e0ab56074e83301a64a2e	mcu	0	good	no
db_k800m.00.ic53	131072	c027a8cf	534dc416b8f5587168c7f644d3f9438c8a190491	sprites	0	good	no	db_k800m.00.ic2
db_k801m.10.ic51	131072	093faf33	2704f644cdce87daf975984f143b1d55ba731c3f	sprites	20000	good	no	db_k801m.10.ic5
db_k802m.20.ic49	131072	055b4c59	71315dd7476612f138cb64b905648791d44eb7da	sprites	40000	good	no	db_k802m.20.ic12
db_k803m.30.ic47	131072	8ed63922	51daa8a23e637f6b4394598ff4a1d26f65b59c8b	sprites	60000	good	no	db_k803m.30.ic14
db_k804m.a0.ic21	131072	4c83e92e	6dade027435c48ab48bd4516d16a9961d4dd6fad	tiles0	0	good	no	db_k804m.a0.ic50
db_k805m.a1.ic22	131072	835ef268	89d0bb15201440dffad3ef745970f95505d7ab03	tiles0	20000	good	no	db_k805m.a1.ic49
db_k806m.a2.ic20	131072	5117f114	a401a3e638209b32d4101a5c2e2a8b4612eaa21b	tiles0	40000	good	no	db_k806m.a2.ic51
db_k807m.a3.ic23	131072	8eb0c978	7fc55bbe4d0923db88492bb7160a89de34e11cd6	tiles0	60000	good	no	db_k807m.a3.ic52
db_k804m.b0.ic26	131072	4c83e92e	6dade027435c48ab48bd4516d16a9961d4dd6fad	tiles1	0	good	no	db_k804m.a0.ic50
db_k805m.b1.ic27	131072	835ef268	89d0bb15201440dffad3ef745970f95505d7ab03	tiles1	20000	good	no	db_k805m.a1.ic49
db_k806m.b2.ic25	131072	5117f114	a401a3e638209b32d4101a5c2e2a8b4612eaa21b	tiles1	40000	good	no	db_k806m.a2.ic51
db_k807m.b3.ic24	131072	8eb0c978	7fc55bbe4d0923db88492bb7160a89de34e11cd6	tiles1	60000	good	no	db_k807m.a3.ic52
db_c-v0.ic44	131072	312f7282	742d56980b4618180e9a0e02051c5aec4d5cdae4	samples	0	good	no	db_a-v0-.ic11
m72_a-8l-.ic66	256	b460c438	00e20cf754b6fd5138ee4d2f6ec28dff9e292fe6	proms	0	good	no	m81_a-9l-.ic72
m72_a-9l-.ic75	256	a4f2c4bc	f13b0a4b52dcc6704063b676f09d83dcba170133	proms	100	good	no	m81_a-9p-.ic74
m72_a-3d-.ic11	279	8a3732ff	6e3039e7dc424cbef7156312fa1ce67d7b082d30	pals	0	good	no
m72_a-4d-.ic19	279	56c29834	a66c589845f9995c673325f1161c687eb90d68c1	pals	200	good	no	m81_a-5l-.ic28
db-c-3f-.ic13	279	7184d421	3120ac2ca32e89d2f2abdb278a8c8cfa298aad75	pals	400	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC V30	8000000
cpu	soundcpu	Zilog Z80	3579545
cpu	mcu	Intel 8751	8000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	dac	8-Bit R-2R DAC

device_ref

name
v30
z80
pic8259
buffered_spriteram16
gfxdecode
palette
screen
speaker
generic_latch_8
rst_neg_buffer
m72_audio
ym2151
dac_8bit_r2r
mb8421_mb8431_16
generic_latch_8
generic_latch_8
i8751

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	4	8	no
joy	2	4	8	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1

dipswitch

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	3

location

name	number	inverted
SW1	1	no
SW1	2	no

value

name	value	default
2	2	no
3	3	yes
4	1	no
5	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	12

location

name	number	inverted
SW1	3	no
SW1	4	no

value

name	value	default
Very Easy	0	no
Easy	8	no
Normal	12	yes
Hard	4	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	48	DSW	1024	eq	0

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default
5 Coins/1 Credit	0	no
3 Coins/1 Credit	16	no
2 Coins/1 Credit	32	no
1 Coin/1 Credit	48	yes

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	192	DSW	1024	eq	0

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default
1 Coin/2 Credits	192	yes
1 Coin/3 Credits	128	no
1 Coin/5 Credits	64	no
1 Coin/6 Credits	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	240	DSW	1024	ne	0

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
6 Coins/1 Credit	160	no
5 Coins/1 Credit	176	no
4 Coins/1 Credit	192	no
3 Coins/1 Credit	208	no
8 Coins/3 Credits	16	no
2 Coins/1 Credit	224	no
5 Coins/3 Credits	32	no
3 Coins/2 Credits	48	no
1 Coin/1 Credit	240	yes
2 Coins/3 Credits	64	no
1 Coin/2 Credits	144	no
1 Coin/3 Credits	128	no
1 Coin/4 Credits	112	no
1 Coin/5 Credits	96	no
1 Coin/6 Credits	80	no
Free Play	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	256

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW	512

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	512	no

Coin Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Mode	DSW	1024

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mode 1	1024	yes
Mode 2	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	2048

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2048	no
On	0	yes

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSW	4096

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	4096	yes

Stop Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Stop Mode	DSW	8192

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	16384

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	32768

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32768	yes
On	0	no
