Diablo 68000 (set 2) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
diablo68a	novag/diablo.cpp		no	no	no	yes	Diablo 68000 (set 2)	1991	Novag Industries / Intelligent Heuristic Programming	diablo68	diablo68

snap

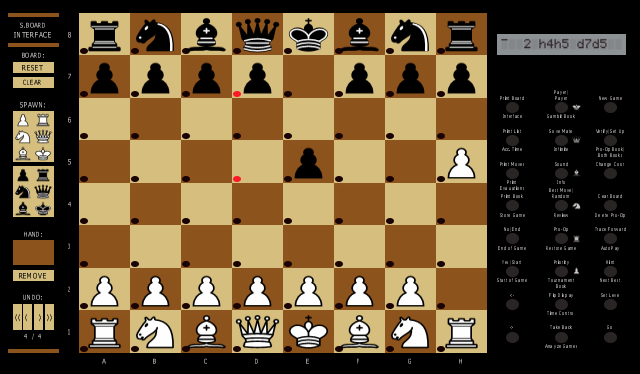

Diablo 68000 (set 2) png snap

Diablo 68000 (set 2) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
diablo68a	45902	29/12/2025 11:31:19	640	374	96	96	0	Format24bppRgb	305:MAME 0.270.0 (Sep 26 2024)	75c0b6bc269fecbcfd2d58293506518c228b8f98

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	lcd	0	97	10	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
d_904.u3	32768	03477746	8bffcb159a61e59bfc45411e319aea6501ebe2f9	maincpu	0	good	no	d_904.u3
d_a09.u2	32768	bcd27647	2de5bccd4e7b9a32957811c0028dbca1a407b9b0	maincpu	1	good	no
502.u4	32768	553a5c8c	ccb5460ff10766a5ca8008ae2cffcff794318108	maincpu	10000	good	no	502.u4

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	16000000
audio	mono	Speaker
audio	beeper	Beep	1024

device_ref

tag	name
:maincpu	m68000
:irq_clock	clock
:nvram	nvram
:board	sensorboard
:screen	screen
:palette	palette
:hd44780	hd44780
:display	pwm_display
:mono	speaker
:beeper	beep
:acia	mos6551
:acia:clock	clock
:rs232	rs232

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		24		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:IN.6
:IN.7
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	h19	serial_heath_h19	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
