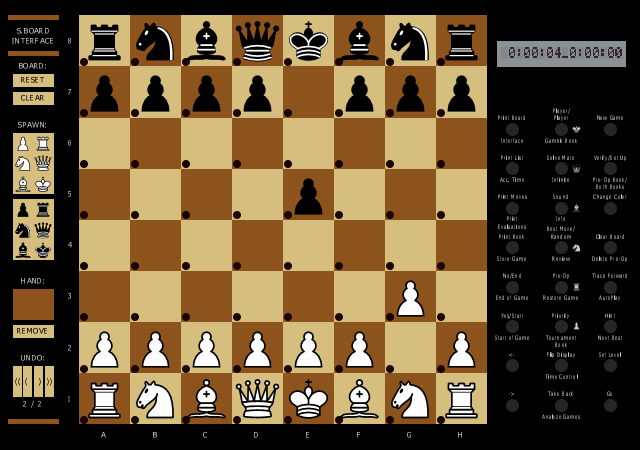

Diablo 68000 (set 4) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
diablo68c	novag/diablo.cpp		no	no	no	yes	Diablo 68000 (set 4)	1991	Novag Industries / Intelligent Heuristic Programming	diablo68	diablo68

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	lcd	0	97	10	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
d_evn_904.u3	32768	03477746	8bffcb159a61e59bfc45411e319aea6501ebe2f9	maincpu	0	good	no	d_904.u3
d_odd_904.u2	32768	d46fcc7a	8ed69cd0fec07bf5451eaa882c87cf7cf70c87eb	maincpu	1	good	no
ds_bk.u4	32768	553a5c8c	ccb5460ff10766a5ca8008ae2cffcff794318108	maincpu	10000	good	no	502.u4

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	16000000
audio	mono	Speaker
audio	beeper	Beep	1024

device_ref

name
m68000
clock
nvram
sensorboard
screen
palette
hd44780
pwm_display
speaker
beep
mos6551
clock
rs232

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		24		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:IN.4
:IN.5
:IN.6
:IN.7
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no
rs232	votraxtnt	serial_votraxtnt	no
rs232	rs_printer	rs_serial_printer	no

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
