Diamond II - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
diamond2	novag/diamond.cpp		no	no	no	yes	Diamond II	1997	Novag Industries / Intelligent Heuristic Programming

snap

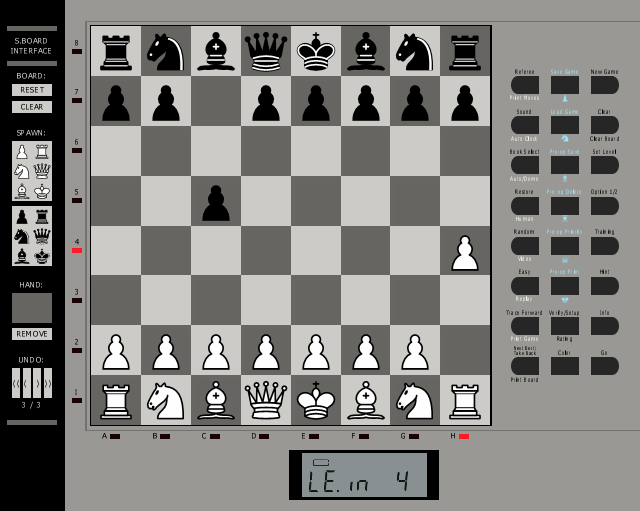

Diamond II png snap

Diamond II jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
diamond2	47082	29/12/2025 11:31:19	640	511	96	96	0	Format24bppRgb	305:MAME 0.268.1 (Aug 1 2024)	f5b143541d88f9956d9c016da0fd3093e0333ba3

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	svg	0	384	134	60.000000	3087360	384	0	384	134	0	134	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
ihp_7600109_hd6433258c67f.u1	32768	10970123	8f72e756915de6569c3936140c775d24730e9065	maincpu	0	good	no
32dsii_060597.u3	131072	c1be39c6	e33ee655bd342fed736c2b2093a89752e695aff3	eprom	0	good	no
sapphire2.svg	72533	34944b61	4a0536ac07790cced9f9bf15522b17ebc375ff8a	screen	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi H8/325	32000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	h8325
:maincpu:intc	h8325_intc
:maincpu:port1	h8_digital_port
:maincpu:port2	h8_digital_port
:maincpu:port3	h8_digital_port
:maincpu:port4	h8_digital_port
:maincpu:port5	h8_digital_port
:maincpu:port6	h8_digital_port
:maincpu:port7	h8_digital_port
:maincpu:timer8_0	h8_timer8_channel
:maincpu:timer8_1	h8_timer8_channel
:maincpu:timer16	h8_timer16
:maincpu:timer16:0	h8325_timer16_channel
:maincpu:sci0	h8_sci
:maincpu:sci1	h8_sci
:nvram	nvram
:board	sensorboard
:lcd_pwm	pwm_display
:screen	screen
:led_pwm	pwm_display
:rs232	rs232
:speaker	speaker
:dac	dac
