Dragon's Lair (US Rev. F2) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
dlair	cinematronics/dlair.cpp		no	no	no	yes	Dragon's Lair (US Rev. F2)	1983	Cinematronics

snap

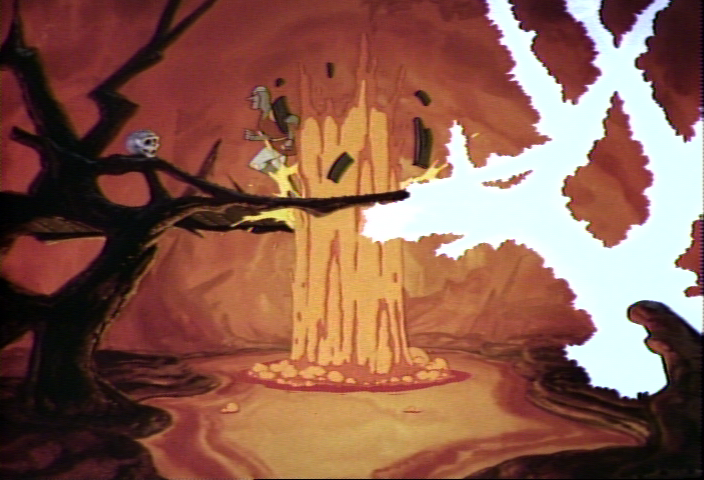

Dragon's Lair (US Rev. F2) png snap

Dragon's Lair (US Rev. F2) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
dlair	723982	29/12/2025 11:31:19	704	480	96	96	0	Format24bppRgb	305:MAME 0.262.0 (Jan 31 2024)	2fd45734af11757bd591d476fd25f0f97d0e8f8b

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	704	480	59.940057	28636362	910	0	704	525	44	524	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
dl_f2_u1.bin	8192	f5ea3b9d	c0cafff8b2982125fd3314ffc66681e47f027fc9	maincpu	0	good	no
dl_f2_u2.bin	8192	dcc1dff2	614ca8f6c5b6fa1d590f6b80d731377faa3a65a9	maincpu	2000	good	no
dl_f2_u3.bin	8192	ab514e5b	29d1015b951f0f2d4e5257497f3bf007c5e2262c	maincpu	4000	good	no
dl_f2_u4.bin	8192	f5ec23d2	71149e2d359cc5944fbbb53dd7d0c2b42fbc9bb4	maincpu	6000	good	no

disk

name	merge	sha1	region	index	writable	status	optional
dlair		c3ee2e27aa4847bf3884fc0d18f26f315456aa9e	ld_ldv1000	0	no	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	aysnd	AY-3-8910A PSG	2000000
audio	ld_ldv1000	Pioneer LDV-1000 HLE

device_ref

tag	name
:maincpu	z80
:speaker	speaker
:aysnd	ay8910
:ld_ldv1000	ldv1000hle
:screen	screen

sound

channels
1

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy		1	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:SYSTEM

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	1

location

name	number	inverted
A	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3 Coins/1 Credit	1	no
2 Coins/1 Credit	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	2

location

name	number	inverted
A	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Difficulty Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty Mode	DSW1	4

location

name	number	inverted
A	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mode 1	4	no
Mode 2	0	yes

Engineering Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Engineering Mode	DSW1	8

location

name	number	inverted
A	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

2 Credits/Free play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
2 Credits/Free play	DSW1	16

location

name	number	inverted
A	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW1	32

location

name	number	inverted
A	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	0	no
5	32	yes

Pay as you go

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Pay as you go	DSW1	64

location

name	number	inverted
A	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW1	128

location

name	number	inverted
A	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Sound Every 8 Attracts

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sound Every 8 Attracts	DSW2	1

location

name	number	inverted
B	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
B	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Unlimited Dirks

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unlimited Dirks	DSW2	4

location

name	number	inverted
B	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

LD Player

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
LD Player	DSW2	8

location

name	number	inverted
B	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
LD-V1000	8	yes
LD-PR7820	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	144

location

name	number	inverted
B	8	no
B	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Increase after 5	0	no	DSW1	4	eq	0
Increase after 9	16	yes	DSW1	4	eq	0
Easy	128	no	DSW1	4	eq	0
Easy	144	no	DSW1	4	eq	0
Hard	0	no	DSW1	4	eq	4
Easy	16	yes	DSW1	4	eq	4
Easy	128	no	DSW1	4	eq	4
Easy	144	no	DSW1	4	eq	4

Pay as you go options

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Pay as you go options	DSW2	96

location

name	number	inverted
B	7	no
B	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
PAYG1	0	no
PAYG2	32	no
PAYG3	64	no
PAYG4	96	yes

clones

name	description
dleuro	Dragon's Lair (European)
dleuroalt	Dragon's Lair (European, alternate)
dlital	Dragon's Lair (Italian)
dlair_1	Dragon's Lair (US Beta 1, Pioneer PR-7820)
dlair_2	Dragon's Lair (US Beta 2?, Pioneer PR-7820)
dlaira	Dragon's Lair (US Rev. A, Pioneer PR-7820)
dlairb	Dragon's Lair (US Rev. B, Pioneer PR-7820)
dlairc	Dragon's Lair (US Rev. C, Pioneer PR-7820)
dlaird	Dragon's Lair (US Rev. D, Pioneer LD-V1000)
dlaire	Dragon's Lair (US Rev. E)
dlairf	Dragon's Lair (US Rev. F)
