Dolly Parton - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
dollyptn	pinball/by35.cpp	genpin	no	no	yes	yes	Dolly Parton	1979	Bally

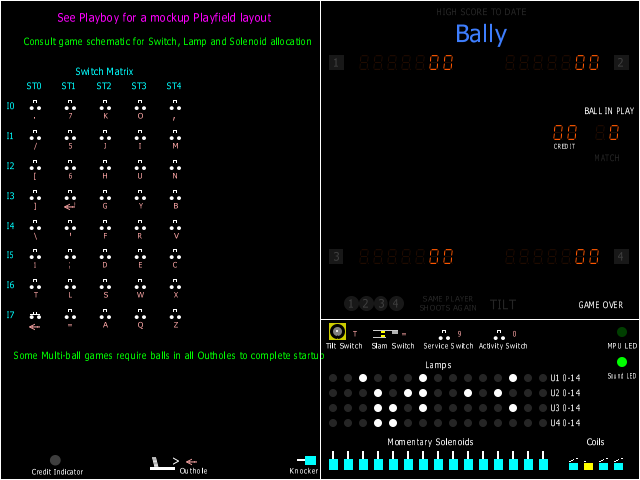

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
dollyptn	26638	20/03/2026 12:05:45	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	f9ac38fd3fc266e1d449da6b4a13c45a3c0a5610

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
777-10_1.716	2048	ca88cb9a	0deac1c02b2121635af4bd76a6695d8abc09d694	maincpu	1000	good	no
777-13_2.716	2048	7fc93ea3	534ac5ed34397fe622dcf7cc90eaf38a311fa871	maincpu	5000	good	no
720-35_6.716	2048	78d6d289	47c3005790119294309f12ea68b7e573f360b9ef	maincpu	5800	good	no
729-51_3.123	32	6e7d3e8b	7a93d82a05213ffa6eacfa318051414f872a701d	as2888:sound	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6800	530000
audio	mechvol	Speaker
audio	samples	Samples
audio	as2888	Bally AS2888 Sound Board
audio	as2888:discrete	Discrete Sound
audio	mono	Speaker

device_ref

tag	name
:maincpu	m6800
:nvram	nvram
:mechvol	speaker
:samples	samples
:pia_u10	pia6821
:timer_z_freq	timer
:timer_z_pulse	timer
:pia_u11	pia6821
:timer_d_freq	timer
:timer_d_pulse	timer
:as2888	as2888
:as2888:discrete	discrete
:as2888:timer_s_freq	timer
:as2888:timer_as2888	timer
:mono	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	3	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		33		no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:DSW3
:TEST
:X0
:X1
:X2
:X3
:X4

dipswitch

Coin Slot 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 1	DSW0	31

location

name	number	inverted
SW0	1	yes
SW0	2	yes
SW0	3	yes
SW0	4	yes
SW0	5	yes

value

name	value	default
3 Coins/4 Credits	0	no
1 Coin/1 Credit	2	yes
2 Coins/1 Credit	3	no
1 Coin/2 Credits	4	no
2 Coins/2 Credits	5	no
1 Coin/3 Credits	6	no
3 Coins/4 Credits	7	no
1 Coin/4 Credits	8	no
2 Coins/4 Credits	9	no
1 Coin/5 Credits	10	no
2 Coins/5 Credits	11	no
1 Coin/6 Credits	12	no
2 Coins/6 Credits	13	no
1 Coin/7 Credits	14	no
2 Coins/7 Credits	15	no
1 Coin/8 Credits	16	no
2 Coins/8 Credits	17	no
1 Coin/9 Credits	18	no
2 Coins/9 Credits	19	no
1 Coin/10 Credits	20	no
2 Coins/10 Credits	21	no
1 Coin/11 Credits	22	no
2 Coins/11 Credits	23	no
1 Coin/12 Credits	24	no
2 Coins/12 Credits	25	no
1 Coin/13 Credits	26	no
2 Coins/13 Credits	27	no
1 Coin/14 Credits	28	no
2 Coins/14 Credits	29	no
1 Coin/15 Credits	30	no
2 Coins/15 Credits	31	no

High Score Feature

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
High Score Feature	DSW0	96

location

name	number	inverted
SW0	6	yes
SW0	7	yes

value

name	value	default
No Award	0	no
Extra Ball	64	no
Replay	96	yes

S8 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S8 (game specific)	DSW0	128

location

name	number	inverted
SW0	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Coin Slot 3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 3	DSW1	31

location

name	number	inverted
SW1	1	yes
SW1	2	yes
SW1	3	yes
SW1	4	yes
SW1	5	yes

value

name	value	default
3 Coins/4 Credits	0	no
1 Coin/1 Credit	2	yes
2 Coins/1 Credit	3	no
1 Coin/2 Credits	4	no
2 Coins/2 Credits	5	no
1 Coin/3 Credits	6	no
3 Coins/4 Credits	7	no
1 Coin/4 Credits	8	no
2 Coins/4 Credits	9	no
1 Coin/5 Credits	10	no
2 Coins/5 Credits	11	no
1 Coin/6 Credits	12	no
2 Coins/6 Credits	13	no
1 Coin/7 Credits	14	no
2 Coins/7 Credits	15	no
1 Coin/8 Credits	16	no
2 Coins/8 Credits	17	no
1 Coin/9 Credits	18	no
2 Coins/9 Credits	19	no
1 Coin/10 Credits	20	no
2 Coins/10 Credits	21	no
1 Coin/11 Credits	22	no
2 Coins/11 Credits	23	no
1 Coin/12 Credits	24	no
2 Coins/12 Credits	25	no
1 Coin/13 Credits	26	no
2 Coins/13 Credits	27	no
1 Coin/14 Credits	28	no
2 Coins/14 Credits	29	no
1 Coin/15 Credits	30	no
2 Coins/15 Credits	31	no

S14 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S14 (game specific)	DSW1	32

location

name	number	inverted
SW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S15 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S15 (game specific)	DSW1	64

location

name	number	inverted
SW1	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

S16 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S16 (game specific)	DSW1	128

location

name	number	inverted
SW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Coin Slot 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 2	DSW2	15

location

name	number	inverted
SW2	1	yes
SW2	2	yes
SW2	3	yes
SW2	4	yes

value

name	value	default
Same as Slot 1	0	yes
1 Coin/1 Credit	1	no
1 Coin/2 Credits	2	no
1 Coin/3 Credits	3	no
1 Coin/4 Credits	4	no
1 Coin/5 Credits	5	no
1 Coin/6 Credits	6	no
1 Coin/7 Credits	7	no
1 Coin/8 Credits	8	no
1 Coin/9 Credits	9	no
1 Coin/10 Credits	10	no
1 Coin/11 Credits	11	no
1 Coin/12 Credits	12	no
1 Coin/13 Credits	13	no
1 Coin/14 Credits	14	no
1 Coin/15 Credits	15	no

Score Level Award

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Score Level Award	DSW2	48

location

name	number	inverted
SW2	5	yes
SW2	6	yes

value

name	value	default
Nothing	0	no
1 Credit	16	no
2 Credits	32	no
3 Credits	48	yes

S23 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S23 (game specific)	DSW2	64

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

S24 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S24 (game specific)	DSW2	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Maximum Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Credits	DSW3	3

location

name	number	inverted
SW3	1	yes
SW3	2	yes

value

name	value	default
10	0	yes
15	1	no
25	2	no
40	3	no

Credits Displayed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Displayed	DSW3	4

location

name	number	inverted
SW3	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Match Feature

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match Feature	DSW3	8

location

name	number	inverted
SW3	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

Sound Option

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sound Option	DSW3	48

location

name	number	inverted
SW3	5	yes
SW3	6	yes

value

name	value	default
Option 1	0	yes
Option 2	16	no
Option 3	32	no
Option 4	48	no

Balls Per Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls Per Game	DSW3	64

location

name	number	inverted
SW3	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	0	yes
5	64	no

S32 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S32 (game specific)	DSW3	128

location

name	number	inverted
SW3	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
