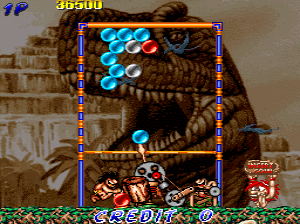

Goindol (Afega) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
dolmenk	nmk/nmk16.cpp		no	no	no	yes	Goindol (Afega)	1995	Afega	dolmen	dolmen

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	256	224	56.205036	6000000	384	92	348	278	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
afega_6.uj3	131072	834cc396	c811e655f7058360409a961c0efe810a83266662	maincpu	0	good	no
afega_5.uj2	131072	38491cad	09aaaf05e77876978a623789c79e4267ca88e1d5	maincpu	1	good	no
afega_1.su6	65536	3d52d5f4	cdb2ca923bca83fe0281a4f49c6b65f16c5abdd2	audiocpu	0	good	no
afega_7.ub11	524288	f32554d4	3199b14b9b2792fdffcbf03e15637d975fe9e585	sprites	0	good	no
afega_8.ub13	524288	65f85cfe	267960e1a1cc3bf9e9dee8d2c0d03825cead4302	sprites	1	good	no
afega_9.ui20	524288	b3fa7be6	7ef8d902bd954960fbae727aae02dce9750f740e	bgtile	0	good	no	afega9.ui20
afega_4.uj11	131072	13fa4415	193524ebccbaae6b8c00893c42399c38cafdbd79	fgtile	0	good	no	afega6.uj11
afega_2.su12	131072	1a2ce1c2	ae6991fbfe57d35f32b541367d3b31244456713e	oki1	0	good	no	afega2.su12
afega_3.su13	262144	d3531018	940067a8634339258666c89319cb0e1b43f2af56	oki1	40000	good	no	afega3.su13

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	12000000
cpu	audiocpu	Zilog Z80	4000000
audio	mono	Speaker
audio	oki1	OKI MSM6295 ADPCM	1000000

device_ref

name
m68000
timer
z80
screen
nmk16spr
gfxdecode
palette
speaker
generic_latch_8
okim6295

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	2	8	no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:DSW1
:IN0
:IN1

dipswitch

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	1

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	2

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW1	12

location

name	number	inverted
SW1	6	no
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	8	no
Normal	12	yes
Hard	4	no
Hardest	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	16

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	32

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Free Credit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Credit	DSW1	192

location

name	number	inverted
SW1	2	no
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
500k	128	no
800k	192	yes
1000k	64	no
1500k	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	256

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW1	512

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	512	yes

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	7168

location

name	number	inverted
SW2	6	no
SW2	5	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	4096	no
3 Coins/1 Credit	2048	no
2 Coins/1 Credit	6144	no
1 Coin/1 Credit	7168	yes
1 Coin/2 Credits	3072	no
1 Coin/3 Credits	5120	no
1 Coin/4 Credits	1024	no
Credits Don't Register	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	57344

location

name	number	inverted
SW2	3	no
SW2	2	no
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	32768	no
3 Coins/1 Credit	16384	no
2 Coins/1 Credit	49152	no
1 Coin/1 Credit	57344	yes
1 Coin/2 Credits	24576	no
1 Coin/3 Credits	40960	no
1 Coin/4 Credits	8192	no
Credits Don't Register	0	no
