mame (0289) • machine eldoraddoac • El Dorado (Dyna D9101 HW, V1.2D)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
eldoraddoac	igs/goldstar.cpp		no	no	no	yes	El Dorado (Dyna D9101 HW, V1.2D)	1991	Dyna	eldoraddoa	eldoraddoa

snap

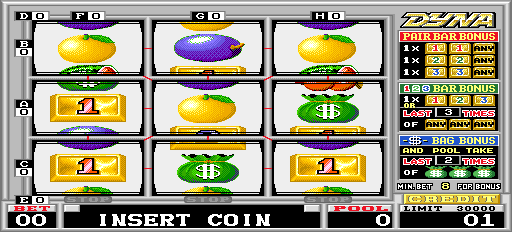

El Dorado (Dyna D9101 HW, V1.2D) png snap

El Dorado (Dyna D9101 HW, V1.2D) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
eldoraddoac	13730	29/05/2026 13:18:32	512	232	96	96	0	Format24bppRgb	305:MAME 0.288 (mame0288)	b20afae68eddda6acea732308f720506339d22e4

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	232	60.000000	7864320	512	0	512	256	12	244	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
512.h12	65536	4d6fce75	4a3bb668add4ccb6b144ca26bfc8fa4b40f883f2	maincpu	0	good	no
82s129.e10	256	db31f7ac	9f23d65dc0c43b1700093461d2c5277cc1d42f49	proms	100	good	no	82s129.e10
82s129.e11	256	49c4df77	860fa207c74eab00ea6c7f3fa16aafba84195336	proms	200	good	no	82s129.e11
82s129.e12	256	1564bb12	641a681866ac5d53d88752a076ad958c94e68a3a	proms	0	good	no	82s129.e12
82s129.h5	256	209ccf78	9f92875855702c7cc4d429ba5f463b698e0e91d3	proms2	0	good	no	82s129.h5
el8a.d8	131072	d39c3cf2	56a56ae7c931aa3f94643e1fbf33bfc6ac1c1b2b	gfx2	0	good	no	8.d8
el9a.d10	131072	ee7b1537	e10b2f3c9291d836782148c4ae388c94ee47a964	gfx1	0	good	no	9.d9

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000

device_ref

tag	name
:maincpu	z80
:nvram	nvram
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:mono	speaker
:aysnd	ay8910
:hopper	ticket_dispenser

sound

channels
1

input

players	coins	service	tilt
1	4	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
gambling		9		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:DSW6
:IN0
:IN1
:IN2
:hopper:TEST

dipswitch

Show Stats

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Stats	DSW1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	1	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Payout Switch	0	yes
Automatic	4	no

Double Up Game on 7

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game on 7	DSW1	8

location

name	number	inverted
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Lose	0	no
Even	8	yes

Double Up Game Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Payout Rate	DSW1	16

location

name	number	inverted
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
80%	0	yes
90%	16	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	no
On	0	yes

Maximum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Bet	DSW1	192

location

name	number	inverted
DSW1	7	no
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	64	no
32	128	no
64	192	yes

Main Game Payout Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Payout Rate	DSW2	7

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
55%	7	no
60%	6	no
65%	5	yes
70%	4	no
75%	3	no
80%	2	no
85%	1	no
90%	0	no

Hopper Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Limit	DSW2	24

location

name	number	inverted
DSW2	4	no
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	0	no
500	8	no
1000	16	no
Unlimited	24	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Type Of Key In

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Type Of Key In	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Key In Type A	64	yes
Key In Type B	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Key-In Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key-In Rate	DSW3	3

location

name	number	inverted
DSW3	1	no
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
10	0	no	DSW2	64	eq	64
20	1	no	DSW2	64	eq	64
50	2	no	DSW2	64	eq	64
100	3	yes	DSW2	64	eq	64
5	0	no	DSW2	64	eq	0
10	1	no	DSW2	64	eq	0
25	2	no	DSW2	64	eq	0
50	3	yes	DSW2	64	eq	0

Coin A Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A Rate	DSW3	12

location

name	number	inverted
DSW3	3	no
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	yes
1 Coin/2 Credits	4	no
1 Coin/5 Credits	8	no
1 Coin/10 Credits	12	no

Coin D Rate & Hopper Out

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin D Rate & Hopper Out	DSW3	48

location

name	number	inverted
DSW3	5	no
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/5 Credits	0	no	DSW4	16	eq	0
1 Coin/10 Credits	16	no	DSW4	16	eq	0
1 Coin/25 Credits	32	no	DSW4	16	eq	0
1 Coin/50 Credits	48	yes	DSW4	16	eq	0
1 Coin/2 Credits	0	no	DSW4	16	eq	16
1 Coin/1 Credit	16	no	DSW4	16	eq	16
2 Coins/1 Credit	32	no	DSW4	16	eq	16
5 Coins/1 Credit	48	yes	DSW4	16	eq	16

Coin C Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C Rate	DSW3	192

location

name	number	inverted
DSW3	7	no
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	no
1 Coin/2 Credits	64	no
1 Coin/5 Credits	128	yes
1 Coin/10 Credits	192	no

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW4	7

location

name	number	inverted
DSW4	1	no
DSW4	2	no
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5,000	7	no
10,000	6	no
20,000	5	no
30,000	4	yes
40,000	3	no
50,000	2	no
100,000	1	no
Unlimited	0	no

Display Of Payout Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Of Payout Limit	DSW4	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Type Of Coin D

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Type Of Coin D	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
A-Type	0	yes
B-Type	16	no

Minimum Bet for Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Minimum Bet for Bonus	DSW4	32

location

name	number	inverted
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	yes
16	32	no

Reel Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reel Speed	DSW4	64

location

name	number	inverted
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	64	no
High	0	yes

Hopper Out By Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Out By Coin A	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Credits In Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits In Limit	DSW5	3

location

name	number	inverted
DSW5	1	no
DSW5	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1,000	3	no
5,000	2	yes
10,000	1	no
20,000	0	no

Condition For 3 Kind Of Bonus

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Condition For 3 Kind Of Bonus	DSW5	12

location

name	number	inverted
DSW5	3	no
DSW5	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
12-7-1	12	no
9-5-1	8	no
6-3-1	4	no
3-2-1	0	yes

Show Girls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Girls	DSW5	16

location

name	number	inverted
DSW5	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	no
On	0	yes

Skill Mode / Stops

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Skill Mode / Stops	DSW5	224

location

name	number	inverted
DSW5	6	no
DSW5	7	no
DSW5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	224	no
On	0	yes

DSW6

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DSW6	DSW6	1

location

name	number	inverted
DSW6	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW6	2

location

name	number	inverted
DSW6	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW6	4

location

name	number	inverted
DSW6	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW6	8

location

name	number	inverted
DSW6	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW6	16

location

name	number	inverted
DSW6	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW6	32

location

name	number	inverted
DSW6	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW6	64

location

name	number	inverted
DSW6	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW6	128

location

name	number	inverted
DSW6	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
