Eurocom II V7 - mame (0277) machine

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	romof	cloneof
eurocom2	skeleton/eurocom2.cpp		no	no	no	yes	Eurocom II V7	1981	Eltec

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	256	50.663717	10717200	678	0	512	312	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	status	optional	bios
mon24.bin	4096	abf5e115	d056705779e109bb56c82f906e2e5a52efe77ec1	maincpu	good	no	mon24
mon53.bin	4096	fb39c2ad	8ce07c349c56f92503f11bb63e32e32c139c003a	maincpu	good	no	mon53
mon54.bin	4096	2c5a4ad2	67b9deec5a6a71d768e35ac97c16cb8992ae159f	maincpu	good	no	mon54
monu54-6.bin	4096	80c82fa8	7255bc2dd536d3dd08cca3ea46992e5ca59323b1	maincpu	good	no	monu546
neumon54.bin	4096	2b60ca41	c7252d2e9b267b046f4f3ea6cd77e40d4744a33e	maincpu	good	no	neumon54

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6809	5358600
audio	fdc:0:525qd:flopsndout	Speaker
audio	fdc:0:525qd:floppysound	Floppy sound	44100
audio	fdc:1:525qd:flopsndout	Speaker
audio	fdc:1:525qd:floppysound	Floppy sound	44100

device_ref

name
mc6809
screen
palette
generic_keyboard
pia6821
pia6821
acia6850
rs232
fd1793
floppy_connector
floppy_525_qd
speaker
flopsnd
floppy_connector
floppy_525_qd
speaker
flopsnd

biosset

name	description	default
mon24	Eurocom Control V2.4	no
mon53	Eurocom Control V5.3	no

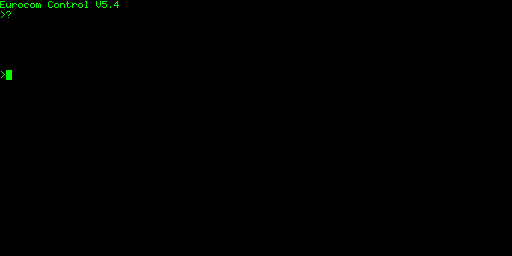

mon54	Eurocom Control V5.4	yes
monu546	Eurocom Control U5.4	no
neumon54	New Monitor 5.4	no

sound

channels
2

feature

type	status	overall
sound	unemulated

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
floppydisk	fdc:0:525qd	floppy_5_25			floppydisk1	flop1
floppydisk	fdc:1:525qd	floppy_5_25			floppydisk2	flop2

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
floppydisk	fdc:0:525qd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, wta
floppydisk	fdc:1:525qd	floppy_5_25			mfi, dfi, mfm, td0, imd, 86f, d77, d88, 1dd, cqm, cqi, dsk, wta

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keyboard		73		no

port, analog

port_tag	analog_masks
:S1
:keyboard:GENKBD_CFG
:keyboard:GENKBD_MOD
:keyboard:GENKBD_ROW0
:keyboard:GENKBD_ROW1
:keyboard:GENKBD_ROW2
:keyboard:GENKBD_ROW3

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
rs232	terminal	serial_terminal	no
rs232	sunkbd	sunkbd_adaptor	no
rs232	dec_loopback	dec_rs232_loopback	no
rs232	ie15	ie15_terminal	no
rs232	null_modem	null_modem	no
rs232	keyboard	serial_keyboard	no
rs232	patch	rs232_patch_box	no
rs232	swtpc8212	swtpc8212_terminal	no
rs232	printer	serial_printer	no
rs232	scorpion	scorpion_ic	no
rs232	loopback	rs232_loopback	no
rs232	mockingboard	mockingboardd	no
rs232	msystems_mouse	rs232_mouse_hle_msystems	no
rs232	nss_tvi	nss_tvinterface	no
rs232	rs232_sync_io	rs232_sync_io	no
rs232	pty	pseudo_terminal	no
rs232	rs_printer	rs_serial_printer	no
fdc:0	8dsdd	floppy_8_dsdd	no
fdc:0	525qd	floppy_525_qd	yes
fdc:1	8dsdd	floppy_8_dsdd	no
fdc:1	525qd	floppy_525_qd	yes

configuration

Layout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Layout	keyboard:GENKBD_CFG	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
ANSI	0	yes
JIS	1	no

Typematic Delay

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Typematic Delay	keyboard:GENKBD_CFG	6

setting

name	value	default
0.25s	0	no
0.5s	2	no
0.75s	4	yes
1.0s	6	no

Typematic Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Typematic Rate	keyboard:GENKBD_CFG	248

setting

name	value	default
2.0cps	0	no
2.1cps	8	no
2.5cps	16	no
2.7cps	24	no
2.0cps	32	no
2.1cps	40	no
2.5cps	48	no
2.7cps	56	no
3.3cps	64	no
3.8cps	72	no
4.0cps	80	no
4.3cps	88	no
4.6cps	96	no
5.0cps	104	no
5.5cps	112	no
6.0cps	120	no
8.0cps	128	no
8.6cps	136	no
9.2cps	144	no
10.0cps	152	yes
10.9cps	160	no
12.0cps	168	no
13.3cps	176	no
15.0cps	184	no
16.0cps	192	no
17.1cps	200	no
18.5cps	208	no
20.0cps	216	no
21.8cps	224	no
24.0cps	232	no
26.7cps	240	no
30.0cps	248	no

dipswitch

Serial baud rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Serial baud rate	S1	15

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
9600	1	yes

7 or 8-bit keyboard

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
7 or 8-bit keyboard	S1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8-bit	64	yes
7-bit	0	no

Periodic timer

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Periodic timer	S1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Yes	128	yes
No	0	no
