mame (0289) • machine excal • Mephisto Excalibur

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
excal	hegenerglaser/excalibur.cpp		no	no	no	yes	Mephisto Excalibur	1983	Hegener + Glaser

snap

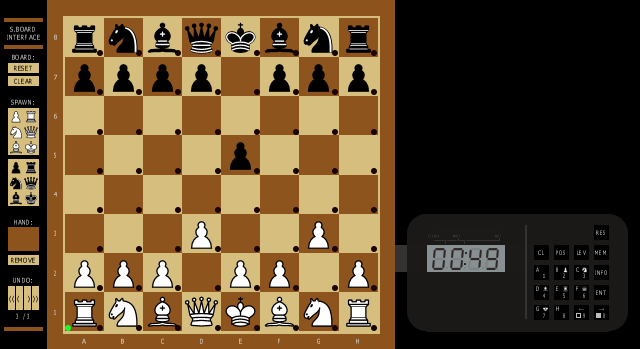

Mephisto Excalibur png snap

Mephisto Excalibur jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
excal	32928	29/12/2025 11:31:21	640	349	96	96	0	Format24bppRgb	305:MAMEUI 0.275.0 (2025-02-26)	41cf326f73614eeb3a0ffe233a15d94b5eff5353

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
1l_215_22.10.l1	16384	372639b0	fb56a19689e164175a3db10faf24ab3360264b7c	maincpu	1	good	no
1u_215_22.10.u1	16384	f4b16b35	778b1ece0fc5db88b667d550a55cb757c1280d4d	maincpu	0	good	no
2l_215_22.10.l2	16384	08dc7409	6f7a336c615ff40dd4018a2150c3213bc7e7e1dc	maincpu	8001	good	no
2u_215_22.10.u2	16384	ad039672	4dc80600bcc7ea450102f2d0eb25be644e5e542c	maincpu	8000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	8000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	m68000
:ptm	ptm6840
:pia	pia6821
:board	msboard
:board:board	sensorboard
:board:led_pwm	pwm_display
:display	mdisplay1
:display:lcd_pwm	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		17		no

port, analog

port_tag	analog_masks
:IN.0
:IN.1
:IN.2
:IN.3
:RESET
:board:board:BS_CHECK
:board:board:CONF
:board:board:RANK.1
:board:board:RANK.10
:board:board:RANK.11
:board:board:RANK.12
:board:board:RANK.13
:board:board:RANK.2
:board:board:RANK.3
:board:board:RANK.4
:board:board:RANK.5
:board:board:RANK.6
:board:board:RANK.7
:board:board:RANK.8
:board:board:RANK.9
:board:board:SPAWN
:board:board:SS_CHECK
:board:board:UI
:board:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes

clones

name	description
excaltm	Mephisto Excalibur (WCCC 1983 New York TM)
