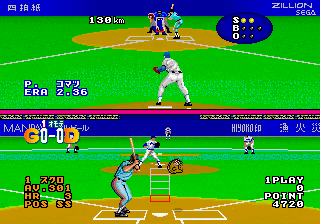

Excite League (FD1094 317-0079) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
exctleag	sega/segas16b.cpp		no	no	no	yes	Excite League (FD1094 317-0079)	1988	Sega

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
epr-11939.a4	65536	117dd98f	0234c2cf3421849854bec3711ab64f50f12cc5dd	maincpu	0	good	no
epr-11936.a1	65536	0863de60	540a5cae2623bce296c07603239f737a782e3b0b	maincpu	1	good	no
epr-11940.a5	65536	dec83274	85919bcd372fbfb9f06c34897b4d28d08ef3c9d1	maincpu	20000	good	no
epr-11937.a2	65536	4ebda367	ab4db50eb0d2e10a3b4b7fc0f4bdc82412379809	maincpu	20001	good	no
epr-11941.a6	65536	4df2d451	644541b20e034a0149117874021c158bd3759e35	maincpu	40000	good	no
epr-11938.a3	65536	07c08d47	47d3445cfa2514918206cd29a203837a9f434b42	maincpu	40001	good	no
317-0079.key	8192	effefa1c	f42e87f60c9589862ea2c05a29b1b15dc7194051	maincpu:key	0	good	no
epr-11942.b09	65536	eb70e827	0617b4411a90087c277354c3653fe994bc4fc580	gfx1	0	good	no
epr-11943.b10	65536	d97c8982	3e604af1771caba3aa213796c4a0812a5e352580	gfx1	10000	good	no
epr-11944.b11	65536	a75cae80	17c148a33b09b5403e68f5d96e506545c2ced206	gfx1	20000	good	no
epr-11950.b1	65536	af497849	c5fdca8d3b1d83e3d377a49ecdc0fc53714afc09	sprites	1	good	no
epr-11954.b5	65536	5fa2106c	2f2620fa52d07667dff4720fea32a6615d99e522	sprites	0	good	no
epr-11951.b2	65536	c04fa974	b1a4fb8522126113d7857d559f169f09c5f51a13	sprites	20001	good	no
epr-11955.b6	65536	86a0c368	ab8d6ab5c571121bf9c5d40727b1ef385a033845	sprites	20000	good	no
epr-11952.b3	65536	e64a9761	e16b3a30165710abc11ab0f358cb7ef875cc672c	sprites	40001	good	no
epr-11956.b7	65536	aff5c2fa	1ec76193f2abf3547fa610761147436548beccbc	sprites	40000	good	no
epr-11953.b4	65536	4cae3999	22089e43a5e2e4fe672015366154e24ad38d3c19	sprites	60001	good	no
epr-11957.b8	65536	218f835b	bfef3ec45665a5921c095da34701528d4d4e0e3a	sprites	60000	good	no
epr-11945.a7	32768	c2a83012	b3de8af803497438aa3e110a9c608ac290f7d1e8	soundcpu	0	good	no
epr-11140.a8	32768	b297371b	4e787aa9ee2aeab4da30237644421df407b684a5	soundcpu	10000	good	no
epr-11141.a9	32768	19756aa6	81597e17b848f6a41f5fb117296e7508297815e4	soundcpu	20000	good	no
epr-11142.a10	32768	25d26c66	2485afb859f84a9cc90b2091e9ae4eef263f42b3	soundcpu	30000	good	no
epr-11143.a11	32768	848b7b77	8903a39f8f0ffb4ce32117d33282876196516c30	soundcpu	40000	good	no

chip

type	tag	name	clock
cpu	maincpu	Hitachi FD1094 Encrypted CPU	10000000
cpu	soundcpu	Zilog Z80	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

name
fd1094
z80
nvram
sega_315_5195
gfxdecode
palette
screen
sega_sys16b_sprite
segaic16_video
speaker
ym2151
upd7759
netlist_sound
nl_stream_in
nl_stream_in
nl_stream_in
nl_stream_out

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	reverse	maximum	sensitivity	keydelta
positional	1	3	no	6	5	10
trackball	1		yes	255	75	5
positional	2	3	no	6	5	10
trackball	2		no	255	75	5

port, analog

port_tag	analog_masks
:ANALOGX1	255
:ANALOGX2	255
:ANALOGY1	255
:ANALOGY2	255
:DSW1
:DSW2
:P1	7, 24, 224
:P2	7, 24, 224
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Starting Points

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Starting Points	DSW2	14

location

name	number	inverted
SW2	2	no
SW2	3	no
SW2	4	no

value

name	value	default
2000	6	no
3000	10	no
4000	12	no
5000	14	yes
6000	8	no
7000	4	no
8000	2	no
9000	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default
Easy	32	no
Normal	48	yes
Hard	16	no
Hardest	0	no

Point Table

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Point Table	DSW2	192

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default
Easy	128	no
Normal	192	yes
Hard	64	no
Hardest	0	no
