F-14 Tomcat (P-4) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
f14_p4	pinball/s11a.cpp	genpin	no	no	yes	yes	F-14 Tomcat (P-4)	1987	Williams	f14_l1	f14_l1

snap

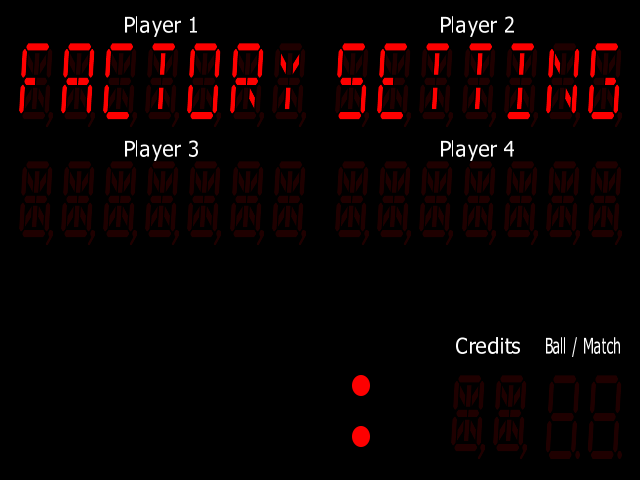

F-14 Tomcat (P-4) png snap

F-14 Tomcat (P-4) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
f14_p4	18586	20/03/2026 13:39:59	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	e61d3e92281e3def6575f8a4b8b69d0fe0538897

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
u26_l4.128	16384	7b39706a	0dc0b1a1dfd12bc73e6fd8b825fe72ddc8fc1497	maincpu	4000	good	no
u27_l4.256	32768	189f9488	7536d56cb83bf29f8d8b03b226a5f60200776095	maincpu	8000	good	no
f14_u21.l1	32768	e412300c	382d0cfa47abea295f0c7501bc0a010473e9d73b	audiocpu	8000	good	no	f14_u21.l1
f14_u22.l1	32768	c9dd7496	de3cb855d87033274cc912578b02d1593d2d69f9	audiocpu	0	good	no	f14_u22.l1
f14_u4.l1	32768	43ecaabf	64b50dbff03cd556130d0cff47b951fdf37d397d	bg:cpu	0	good	no	f14_u4.l1
f14_u19.l1	32768	d0de4a7c	46ecd5786653add47751cc56b38d9db7c4622377	bg:cpu	20000	good	no	f14_u19.l1

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6808	4000000
cpu	audiocpu	Motorola MC6802	4000000
cpu	bg:cpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	dac	MC1408 DAC
audio	cvsd_filter2	Biquad Filter
audio	cvsd_filter	Biquad Filter
audio	hc55516	HC-55516
audio	bg	Williams System 11 Background Audio Board
audio	bg:dac	MC1408 DAC
audio	bg:ym2151	YM2151 OPM	3579545
audio	bg:cvsd_filter2	Biquad Filter
audio	bg:cvsd_filter	Biquad Filter
audio	bg:hc55516	HC-55516
audio	speaker	Speaker

device_ref

tag	name
:maincpu	m6808
:mainirq	ipt_merge_any_hi
:piairq	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:pia21	pia6821
:pia24	pia6821
:pia28	pia6821
:pia2c	pia6821
:pia30	pia6821
:pia34	pia6821
:nvram	nvram
:audiocpu	m6802
:audioirq	ipt_merge_any_hi
:dac	mc1408
:cvsd_filter2	filter_biquad
:cvsd_filter	filter_biquad
:hc55516	hc55516
:pias	pia6821
:bg	s11_bg
:bg:cpu	mc6809e
:bg:dac	mc1408
:bg:pia40	pia6821
:bg:ym2151	ym2151
:bg:cvsd_filter2	filter_biquad
:bg:cvsd_filter	filter_biquad
:bg:hc55516	hc55516
:speaker	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		64		no

port, analog

port_tag	analog_masks
:DIAGS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

configuration

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DIAGS	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
German	0	no
English	16	yes
