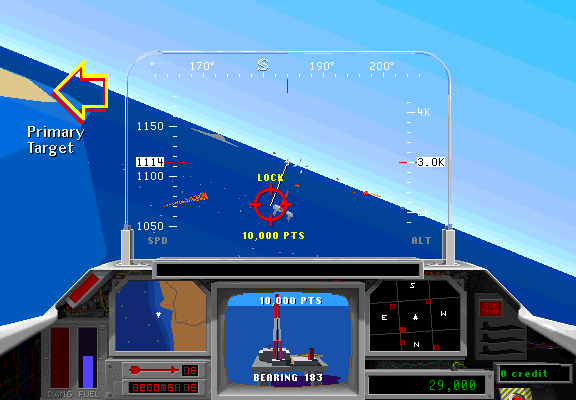

F-15 Strike Eagle (rev. 2.2 02/25/91, 29K ver. 3.1f) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
f15se	misc/micro3d.cpp		no	no	no	yes	F-15 Strike Eagle (rev. 2.2 02/25/91, 29K ver. 3.1f)	1991	Microprose Games Inc.

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	576	400	60.003840	20000000	768	0	576	434	0	400	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
110-00001-600.u67	131072	da507ec7	24fb80aa7157a97b53a6efa8f2477aacd0cd621f	maincpu	1	good	no
110-00001-601.u91	131072	f47648c6	a5eac6fcde52ebf750cfcdcf151fcbd859146296	maincpu	0	good	no
110-00001-602.u68	131072	099ad6ba	cb51b4d9eeb7dbc3c967d1c224957f2e70cd11f9	maincpu	40001	good	no
110-00001-603.u92	131072	71a4cb4d	5b47046bd1c551b041f20d0a8f58ccf68ebf2409	maincpu	40000	good	no
110-00001-004.u69	131072	81671ce1	51ff641ccbc9dea640a62944910abe73d796b062	maincpu	80001	good	no
110-00001-005.u93	131072	bdaa7db5	52cd832cdd44e609e8cd269469b806e2cd27d63d	maincpu	80000	good	no
110-00001-006.u70	131072	251e92d2	a20279089af1f738ba912f90a4d048d4e58795fe	maincpu	c0001	good	no
110-00001-007.u94	131072	36e06cba	5ffee5da6f475978be10fa5e1a2c24f00497ea5f	maincpu	c0000	good	no
110-00001-008.u71	131072	d96fd4e2	001af758da437e955b4ee914eabeb9739ebc4454	maincpu	100001	good	no
110-00001-009.u95	131072	33e3b473	66deda79ba94f0ed722b399b3fc6062dcdd1a6c9	maincpu	100000	good	no
110-00001-222.u134	32768	1aa391a4	8bf80c0d0d9a85cbec9d8e18f6b5fc83989c86ce	drmath	0	good	no
110-00001-225.u126	32768	bf6eb5a1	94320581917ce36ae50ea0ecb53af9e12999e2b1	drmath	1	good	no
110-00001-223.u114	32768	25f6fdf3	664b55e69b1e251241defff465fff4a1b1b5f5e3	drmath	2	good	no
110-00001-224.u107	32768	dea6b1c9	e64c31b49a58c396e38a5f7818dd734ab66f4e80	drmath	3	good	no
110-00001-218.u135	32768	d868c4cb	0b4f6ad13592d1ea17104002ef0a45aacc61749b	drmath	4	good	no
110-00001-221.u127	32768	a04b638b	6681e2cdf256af18c0829057afcbe9762329bdd0	drmath	5	good	no
110-00001-219.u115	32768	7b4ed618	57751bd08f0a400347cfcd39726754a2c79b43e6	drmath	6	good	no
110-00001-220.u108	32768	00138de4	3388fb2d504d41c4e504ccb3aafe5fae62d4f6e2	drmath	7	good	no
110-00001-014.u153	131072	5ca7713f	ac7b9629684b99ecfb1945176b06eb6be284ba93	vertex	1	good	no
110-00001-015.u154	131072	beae31bb	1ab80a6b99eea6d5bf9b1bce58ecca13042c77a6	vertex	0	good	no
110-00001-016.u167	131072	5db4f677	25a6fe4c562e4fa4225aa4687dd41920b614e591	vertex	40001	good	no
110-00001-017.u160	131072	47f9a868	7c8a9355893e4a3f3846fd05e0237ffd1404ffee	vertex	40000	good	no
110-00002-101.u101	131072	e99fac71	98d1d2134fabc1bad637cbe42cbe9cdc20b32126	tms34010	0	good	no
110-00002-104.u97	131072	78b9b7c7	4bce993dd3aea126e3a9d42ee8c68b8ab47fdba7	tms34010	1	good	no
110-00002-105.u124	131072	7b1852f0	d21525e59b3112313ea9783ac3dd988a4c1d5f87	tms_gfx	0	good	no
110-00002-106.u121	131072	9d031636	b7c7b57d547f2ce2eeb97126e961f3b5f35823f7	tms_gfx	1	good	no
110-00002-107.u130	131072	15326070	ec4484d4515694742d3fd3b944f342f052463988	tms_gfx	40000	good	no
110-00002-108.u133	131072	ca0e86d8	a7b4b02d100a7875d5a184cdb76d507e926d1ca3	tms_gfx	40001	good	no
110-00002-103.u114	131072	4d8e8f54	d8a23b5fd00ab919dc6d63fc72824d1293073813	tms_gfx	80000	good	no
110-00002-102.u108	131072	f6488e31	d2f9304cc59f5523007592ae76ddd56107cc29e8	tms_gfx	80001	good	no
110-00004-001.u2	32768	705685a9	311f7cac126a19e8bd555ebf31ff4ec4680ddfa4	audiocpu	0	good	no
110-00003-001.u17	262144	af84b635	844e5987a66e9e3ab2d2fe05b93a4da3512776bb	upd7759	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	16000000
cpu	vgb	Texas Instruments TMS34010	40000000
cpu	drmath	AMC Am29000	16000000
cpu	audiocpu	Intel 80C31	11059200
audio	speaker	Speaker
audio	upd7759	NEC uPD7759	640000
audio	ym2151	YM2151 OPM	3579545
audio	noise_1	Microprose Custom Sound
audio	noise_2	Microprose Custom Sound

device_ref

name
m68000
tms34010
am29000
scc8530
z80scc_channel
z80scc_channel
i80c31
mc68681
duart_channel
duart_channel
mc68901
nvram
palette
screen
scn2651
rs232
rs232
rs232
adc0844
speaker
upd7759
ym2151
micro3d_sound
micro3d_sound

adjuster

name	default
Volume	100

sound

channels
1

feature

type	status	overall
sound	imperfect

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
stick		4		yes	3930	255	100	10

port, analog

port_tag	analog_masks
:INPUTS_A_B
:INPUTS_C_D
:JOYSTICK_X	4095
:JOYSTICK_Y	4095
:SOUND_SW
:THROTTLE	255
:VGB_SW
:VOLUME

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
monitor_host	terminal	serial_terminal	no
monitor_host	sunkbd	sunkbd_adaptor	no
monitor_host	dec_loopback	dec_rs232_loopback	no
monitor_host	ie15	ie15_terminal	no
monitor_host	null_modem	null_modem	no
monitor_host	keyboard	serial_keyboard	no
monitor_host	patch	rs232_patch_box	no
monitor_host	swtpc8212	swtpc8212_terminal	no
monitor_host	printer	serial_printer	no
monitor_host	scorpion	scorpion_ic	no
monitor_host	loopback	rs232_loopback	no
monitor_host	mockingboard	mockingboardd	no
monitor_host	msystems_mouse	rs232_mouse_hle_msystems	no
monitor_host	nss_tvi	nss_tvinterface	no
monitor_host	rs232_sync_io	rs232_sync_io	no
monitor_host	pty	pseudo_terminal	no
monitor_host	votraxtnt	serial_votraxtnt	no
monitor_host	rs_printer	rs_serial_printer	no
monitor_drmath	terminal	serial_terminal	no
monitor_drmath	sunkbd	sunkbd_adaptor	no
monitor_drmath	dec_loopback	dec_rs232_loopback	no
monitor_drmath	ie15	ie15_terminal	no
monitor_drmath	null_modem	null_modem	no
monitor_drmath	keyboard	serial_keyboard	no
monitor_drmath	patch	rs232_patch_box	no
monitor_drmath	swtpc8212	swtpc8212_terminal	no
monitor_drmath	printer	serial_printer	no
monitor_drmath	scorpion	scorpion_ic	no
monitor_drmath	loopback	rs232_loopback	no
monitor_drmath	mockingboard	mockingboardd	no
monitor_drmath	msystems_mouse	rs232_mouse_hle_msystems	no
monitor_drmath	nss_tvi	nss_tvinterface	no
monitor_drmath	rs232_sync_io	rs232_sync_io	no
monitor_drmath	pty	pseudo_terminal	no
monitor_drmath	votraxtnt	serial_votraxtnt	no
monitor_drmath	rs_printer	rs_serial_printer	no
monitor_vgb	terminal	serial_terminal	no
monitor_vgb	sunkbd	sunkbd_adaptor	no
monitor_vgb	dec_loopback	dec_rs232_loopback	no
monitor_vgb	ie15	ie15_terminal	no
monitor_vgb	null_modem	null_modem	no
monitor_vgb	keyboard	serial_keyboard	no
monitor_vgb	patch	rs232_patch_box	no
monitor_vgb	swtpc8212	swtpc8212_terminal	no
monitor_vgb	printer	serial_printer	no
monitor_vgb	scorpion	scorpion_ic	no
monitor_vgb	loopback	rs232_loopback	no
monitor_vgb	mockingboard	mockingboardd	no
monitor_vgb	msystems_mouse	rs232_mouse_hle_msystems	no
monitor_vgb	nss_tvi	nss_tvinterface	no
monitor_vgb	rs232_sync_io	rs232_sync_io	no
monitor_vgb	pty	pseudo_terminal	no
monitor_vgb	votraxtnt	serial_votraxtnt	no
monitor_vgb	rs_printer	rs_serial_printer	no

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	INPUTS_A_B	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	INPUTS_A_B	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Shared Memory Handshake Test

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Shared Memory Handshake Test	INPUTS_A_B	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Dr. Math Monitor Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Dr. Math Monitor Mode	INPUTS_A_B	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Burn-in Tests

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Burn-in Tests	INPUTS_A_B	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Manufacturing Tests

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Manufacturing Tests	INPUTS_A_B	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	INPUTS_A_B	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Host Monitor Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Host Monitor Mode	INPUTS_A_B	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	INPUTS_A_B	1024

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	yes
On	0	no

VGB Monitor Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
VGB Monitor Mode	VGB_SW	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no
