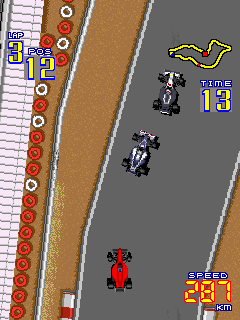

F-1 Grand Prix (set 2) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
f1gpa	vsystem/f1gp.cpp		no	no	no	yes	F-1 Grand Prix (set 2)	1991	Video System Co.	f1gp	f1gp

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	90	320	240	60.000000	7864320	512	0	320	256	8	248	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional	merge
rom1-a.3	131072	2d8f785b	6eca42ad2d57a31e055496141c89cb537f284378	maincpu	0	good	no
rom10-a.1	262144	46a289fb	6a8c19e08b6d836fe83378fd77fead82a0b2db7c	user1	0	good	no	rom10-a.1
rom11-a.2	262144	53df8ea1	25d50bb787f3bd35c9a8ae2b0ab9a21e000debb0	user1	1	good	no	rom11-a.2
rom12-a.3	262144	d8c1bcf4	d6d77354eb1ab413ba8cfa5d973cf5b0c851c23b	user1	80000	good	no	rom12-a.3
rom13-a.4	262144	7d92e1fa	c23f5beea85b0804c61ef9e7f131b186d076221f	user1	80001	good	no	rom13-a.4
rom7-a.5	262144	7a014ba6	8f0abbb68100e396e5a41337254cb6bf1a2ed00b	user1	100000	good	no	rom7-a.5
rom6-a.6	262144	6d947a3f	2cd01ee2a73ab105a45a5464a29fd75aa43ba2db	user1	100001	good	no	rom6-a.6
rom8-a.7	262144	0ed783c7	c0c467ede51c08d84999897c6d5cc8b584b23b67	user1	180000	good	no	rom8-a.7
rom9-a.8	262144	49286572	c5e16bd1ccd43452337a4cd76db70db079ca0706	user1	180001	good	no	rom9-a.8
rom2-a.06	1048576	747dd112	b9264bec61467ab256cf6cb698b6e0ea8f8006e0	user2	0	good	no	rom2-a.06
rom3-a.05	1048576	264aed13	6f0de860d4299befffc530b7a8f19656982a51c4	user2	100000	good	no	rom3-a.05
rom4-a.4	131072	8e811d36	2b806b50a3a307a21894687f16485ace287a7c4c	sub	0	good	no	rom4-a.4
rom5-a.8	131072	9ea36e35	9254dea8362318d8cfbd5e36e476e0e235e6326a	audiocpu	0	good	no	rom5-a.8
rom3-b.07	1048576	ffb1d489	9330b67e0eaaf67d6c38f40a02c72419bd38fb81	fgtiles	0	good	no	rom3-b.07
rom2-b.04	1048576	d1b3471f	d1a95fbaad1c3d9ec2121bf65abbcdb5441bd0ac	fgtiles	100000	good	no	rom2-b.04
rom5-b.2	524288	17572b36	c58327c2f708783a3e8470e290cae0d71454f1da	sprites1	0	good	no	rom5-b.2
rom4-b.3	524288	72d12129	11da6990a54ae1b6f6d0bed5d0431552f83a0dda	sprites1	2	good	no	rom4-b.3
rom7-b.17	262144	2aed9003	45ff9953ad98063573e7fd7b930ae8b0183cdd04	sprites2	0	good	no	rom7-b.17
rom6-b.16	262144	6789ef12	9b0d1cc6e9c6398ccb7f635c4c148fddd224a21f	sprites2	2	good	no	rom6-b.16
rom14-a.09	1048576	b4c1ac31	acab2e1b5ce4ca3a5c4734562481b54db4b46995	ymsnd:adpcmb	0	good	no	rom14-a.09
rom17-a.08	1048576	ea70303d	8de1a0e6d47cd80a622663c1745a1da54cd0ea05	ymsnd:adpcma	0	good	no	rom17-a.08

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	sub	Motorola MC68000	10000000
cpu	audiocpu	Zilog Z80	5000000
audio	speaker	Speaker
audio	ymsnd	YM2610 OPNB	8000000

device_ref

name
m68000
m68000
z80
acia6850
clock
screen
gfxdecode
palette
vsystem_gga
vsystem2_spr
vsystem2_spr
k053936
speaker
generic_latch_8
ym2610

sound

channels
1

feature

type	status	overall
lan	unemulated

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy		2	2	no
stick				no	0	255	10	5

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:INPUTS
:JOY_TYPE
:WHEEL	255

configuration

Joystick Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Joystick Type	JOY_TYPE	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2-Way	1	yes
4-Way	0	no

dipswitch

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW1	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default
Easy	2	no
Normal	3	yes
Hard	1	no
Hardest	0	no

Game Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Mode	DSW1	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Single	4	yes
Multiple	0	no

Multi Player Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Multi Player Mode	DSW1	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation
Single or Multi Player	8	yes	DSW1	4	eq
Multi Player Game Only	0	no	DSW1	4	eq
Multi Player Off	8	yes	DSW1	4	ne
Multi Player Off	0	no	DSW1	4	ne

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	16

location

name	number	inverted
SW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	32

location

name	number	inverted
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW1	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Free Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Play	DSW1	256

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	256	yes
Yes	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW1	32256	DSW1	32768	ne	32768

location

name	number	inverted
SW1	2	no
SW1	3	no
SW1	4	no
SW1	5	no
SW1	6	no
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 to Start, 1 to Continue	32256	yes

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	3584	DSW1	32768	eq	32768

location

name	number	inverted
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
3 Coins/1 Credit	2560	no
2 Coins/1 Credit	3072	no
1 Coin/1 Credit	3584	yes
1 Coin/2 Credits	2048	no
1 Coin/3 Credits	1536	no
1 Coin/4 Credits	1024	no
1 Coin/5 Credits	512	no
1 Coin/6 Credits	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	28672	DSW1	32768	eq	32768

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no

value

name	value	default
3 Coins/1 Credit	20480	no
2 Coins/1 Credit	24576	no
1 Coin/1 Credit	28672	yes
1 Coin/2 Credits	16384	no
1 Coin/3 Credits	12288	no
1 Coin/4 Credits	8192	no
1 Coin/5 Credits	4096	no
1 Coin/6 Credits	0	no

Continue Coin

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Continue Coin	DSW1	32768

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Normal Coinage	32768	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW2	256

location

name	number	inverted
SW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW2	512

location

name	number	inverted
SW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	512	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	1024

location

name	number	inverted
SW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1024	no
On	0	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	2048

location

name	number	inverted
SW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2048	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	4096

location

name	number	inverted
SW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4096	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	8192

location

name	number	inverted
SW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8192	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	16384

location

name	number	inverted
SW3	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16384	yes
On	0	no

Input Method

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Input Method	DSW2	32768

location

name	number	inverted
SW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Joystick	32768	yes
Steering Wheel	0	no

Region

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Region	DSW3	31

value

name	value	default
World	16	yes
USA & Canada	1	no
Japan	0	no
Korea	2	no
Hong Kong	4	no
Taiwan	8	no
