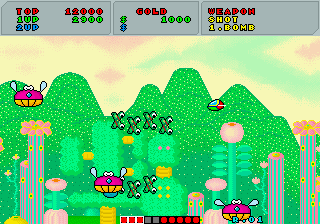

Fantasy Zone (317-5000) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Machines: 48893 - rom: 364836 - disk: 1378

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
fantzonep	sega/segas16a.cpp		no	no	no	yes	Fantasy Zone (317-5000)	1986	Sega	fantzone	fantzone

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.000000	5376240	342	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
epr-7385.43	32768	5cb64450	5831405359975dd7d8c6614b20fd9b18a5d6410d	maincpu	0	good	no
epr-7382.26	32768	3fda7416	91f34cc8afb4ad8bc783c31d25781a1359c44cfe	maincpu	1	good	no
epr-7386.42	32768	15810ace	e61a258ab6601d359f6ad1f37a2b2801bf777d26	maincpu	10000	good	no
epr-7383.25	32768	a001e10a	04ebb012b10817db36997d0ee877104d512decf8	maincpu	10001	good	no
epr-7387.41	32768	0acd335d	f39566a2069eefa7682c57c6521ea7a328738d06	maincpu	20000	good	no	epr-7387.41
epr-7384.24	32768	fd909341	2f1e01eb7d7b330c9c0dd98e5f8ed4973f0e93fb	maincpu	20001	good	no	epr-7384.24
epr-7388.95	32768	8eb02f6b	80511b944b57541669010bd5a0ca52bc98eabd62	gfx1	0	good	no	epr-7388.95
epr-7389.94	32768	2f4f71b8	ceb39e95cd43904b8e4f89c7227491e139fb3ca6	gfx1	8000	good	no	epr-7389.94
epr-7390.93	32768	d90609c6	4232f6ecb21f242c0c8d81e06b88bc742668609f	gfx1	10000	good	no	epr-7390.93
epr-7392.10	32768	5bb7c8b6	eaa0ed63ac4f66ee285757e842bdd7b005292600	sprites	1	good	no	epr-7392.10
epr-7396.11	32768	74ae4b57	1f24b1faea765994b85f0e7ac8e944c8da22103f	sprites	0	good	no	epr-7396.11
epr-7393.17	32768	14fc7e82	ca7caca989a3577dd30ad4f66b0fcce712a454ef	sprites	10001	good	no	epr-7393.17
epr-7397.18	32768	e05a1e25	9691d9f0763b7483ee6912437902f22ab4b78a05	sprites	10000	good	no	epr-7397.18
epr-7394.23	32768	531ca13f	19e68bc515f6021e1145cff4f3f0e083839ee8f3	sprites	20001	good	no	epr-7394.23
epr-7398.24	32768	68807b49	0a189da8cdd2090e76d6d06c55b478abce60542d	sprites	20000	good	no	epr-7398.24
epr-7391.12	32768	c03e155e	6bbdf308c47b96ba622329520b70fa0ea47248a4	soundcpu	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	10000000
cpu	soundcpu	Sega 315-5177	4000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	4000000

device_ref

name
m68000
sega_315_5177
nvram
watchdog
i8255
screen
sega_sys16a_sprite
segaic16_video
gfxdecode
palette
speaker
generic_latch_8
ym2151

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	1	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW2	12

location

name	number	inverted
SW2	3	no
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2	8	no
3	12	yes
4	4	no
240 (Cheat)	0	no

Extra Ship Cost

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Extra Ship Cost	DSW2	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5000	48	yes
10000	32	no
15000	16	no
20000	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	192

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	128	no
Normal	192	yes
Hard	64	no
Hardest	0	no
