FatMan - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
fatman	paia/fatman.cpp		no	no	no	yes	FatMan	1992	PAiA Electronics

snap

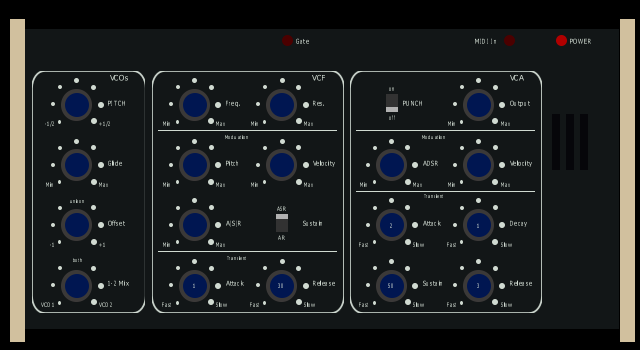

FatMan png snap

FatMan jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
fatman	17298	29/12/2025 11:31:21	640	350	96	96	0	Format24bppRgb	305:MAMEUI 0.275.0 (2025-02-26)	df326fc4d1f1fd52e3fe0c831a43f135f12ef2a2

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
fatmopv1.9.ic3	8192	e2a4b9a9	3738f0c9b3b158884fddb103b19314899d7e60c0	8031	0	good	no		fatman9

chip

type	tag	name	clock
cpu	8031	Intel 8031	12000000
audio	vca_eg_eg	RC-based Envelope Generator
audio	vcf_eg_eg	RC-based Envelope Generator
audio	vca_punch_rc	RC-based Envelope Generator

device_ref

tag	name
:8031	i8031
:vca_eg_eg	va_rc_eg
:vcf_eg_eg	va_rc_eg
:vca_punch_rc	va_rc_eg
:mdin	midi_port
:mdin:midiin	midiin_port
:mdin:midiin:midiinimg	midiin
:mdthru	midi_port
:mdthru:midiout	midiout_port
:mdthru:midiout:midioutimg	midiout
:midi_led_pwm_device	pwm_display

adjuster

name	default
VCA EG Attack	2
VCA EG Decay	1
VCA EG Release	3
VCA EG Sustain	50
VCF EG Attack	1
VCF EG Release	30
DAC tune	21
Octave 1 trimmer (R24)	49
Octave 2 trimmer (R21)	49
Octave 3 trimmer (R18)	46

biosset

name	description	default
fatman9	FatMan Operating System 1.9 (C) 1995	yes

sound

channels
0

feature

type	status	overall
sound	unemulated

device, instance

type	tag	interface	fixed_image	mandatory	name	briefname
midiin	mdin:midiin:midiinimg				midiin	min
midiout	mdthru:midiout:midioutimg				midiout	mout

device, extension

type	tag	interface	fixed_image	mandatory	extension_names
midiin	mdin:midiin:midiinimg				mid, syx
midiout	mdthru:midiout:midioutimg				mid

input

players	coins	service	tilt
1		no	no

port, analog

port_tag	analog_masks
:VCA_attack
:VCA_decay
:VCA_punch
:VCA_release
:VCA_sustain
:VCF_attack
:VCF_release
:VCF_sustain
:VPLUS
:dac_trimmer
:dsw
:mdin:midiin:midiinimg:CFG
:octave_1_trimmer
:octave_2_trimmer
:octave_3_trimmer

slot, slotoption

slot_name	slotoption_name	slotoption_devname	slotoption_default
mdin	midiin	midiin_port	yes
mdthru	midiout	midiout_port	yes

configuration

V+

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
V+	VPLUS	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8V (older devices)	0	no
9V (newer devices)	1	yes

MIDI file mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI file mode	mdin:midiin:midiinimg:CFG	255

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Multi	255	yes
Poly: Channel 1	0	no
Poly: Channel 2	1	no
Poly: Channel 3	2	no
Poly: Channel 4	3	no
Poly: Channel 5	4	no
Poly: Channel 6	5	no
Poly: Channel 7	6	no
Poly: Channel 8	7	no
Poly: Channel 9	8	no
Poly: Channel 10	9	no
Poly: Channel 11	10	no
Poly: Channel 12	11	no
Poly: Channel 13	12	no
Poly: Channel 14	13	no
Poly: Channel 15	14	no
Poly: Channel 16	15	no

dipswitch

MIDI Channel

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
MIDI Channel	dsw	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1	0	yes
2	8	no
3	4	no
4	12	no
5	2	no
6	10	no
7	6	no
8	14	no
9	1	no
10	9	no
11	5	no
12	13	no
13	3	no
14	11	no
15	7	no
16	15	no

Not Connected

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Not Connected	dsw	112

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	dsw	128

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
On	0	yes
Off	128	no
