Designer 2100 Display (set 1) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
fdes2100d	fidelity/desdis.cpp		no	no	no	yes	Designer 2100 Display (set 1)	1988	Fidelity International

snap

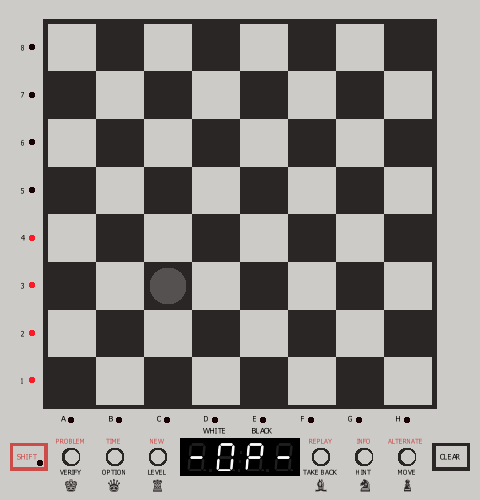

Designer 2100 Display (set 1) png snap

Designer 2100 Display (set 1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
fdes2100d	14362	29/12/2025 11:31:21	480	500	96	96	0	Format24bppRgb	305:MAME 0.180 (Nov 30 2016)	aaccf490979fdf5a490ab45bdee3106aff88d58d

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
i9_orange.ic9	32768	83fec02a	6f43ab05bc605061989b05d0592dbd184efff9d4	maincpu	8000	good	no
bk_3_white.ic10	32768	3857cc35	f073dafb9fd885c7ddb7fbff10e3653f343ef1c6	rombank	0	good	no

chip

type	tag	name	clock
cpu	maincpu	WDC W65C02	6000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	w65c02
:irq_clock	clock
:board	sensorboard
:display	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		8		no

port, analog

port_tag	analog_masks
:IN.0
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes

clones

name	description
fdes2000d	Designer 2000 Display
fdes2100da	Designer 2100 Display (set 2)
