Designer Mach III Master 2265 (set 2) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
fdes2265a	fidelity/desdis.cpp		no	no	no	yes	Designer Mach III Master 2265 (set 2)	1989	Fidelity Electronics International	fdes2265	fdes2265

snap

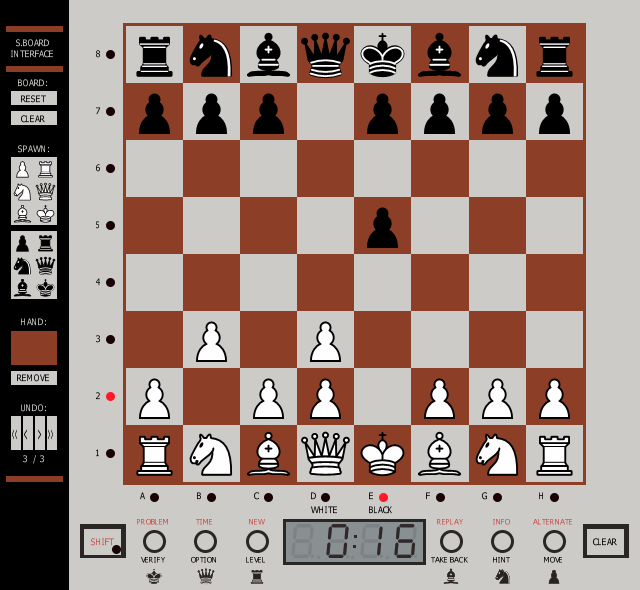

Designer Mach III Master 2265 (set 2) png snap

Designer Mach III Master 2265 (set 2) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
fdes2265a	53139	29/12/2025 11:31:21	640	590	96	96	0	Format24bppRgb	305:MAME 0.239 (Dec 29 2021)	ee107ad8fa2d9694737b3bd76e7bf3fa2e350834

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
13_e_red.ic11	32768	15a35628	8213862e129951c6943a80f73cd0b63a31bb1357	maincpu	0	good	no
13_o_blue.ic10	32768	81ce7ab2	f01a70bcf2fbfe66c7a77d3c4437d897e5cc682d	maincpu	1	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	16000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	m68000
:irq_clock	clock
:board	sensorboard
:display	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		8		no

port, analog

port_tag	analog_masks
:IN.0
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
