Designer Mach IV 68020 Master 2325 - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
fdes2325	fidelity/desdis.cpp		no	no	no	yes	Designer Mach IV 68020 Master 2325	1991	Fidelity Electronics International	fdes2265	fdes2265

snap

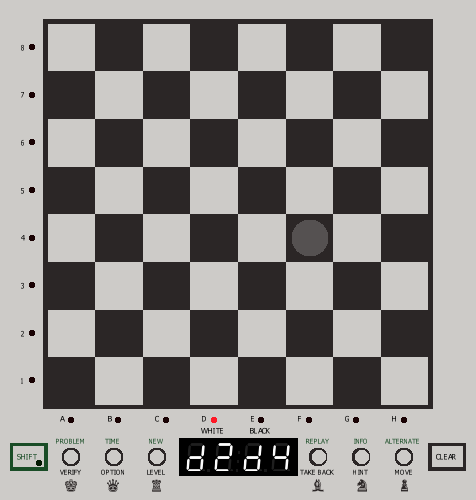

Designer Mach IV 68020 Master 2325 png snap

Designer Mach IV 68020 Master 2325 jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
fdes2325	15593	29/12/2025 11:31:21	476	500	96	96	0	Format24bppRgb	305:MAME 0.193 (Dec 27 2017)	56d197793858046e456e6994f44957c4e63be30b

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
61_29_white.ic10	65536	f74157e1	87f3f2d584e292f81593e053240d022cc477834d	maincpu	0	good	no
101-1097a01.ic19	256			pals	0	nodump	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68EC020	20000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	m68ec020
:irq_clock	clock
:board	sensorboard
:display	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		8		no

port, analog

port_tag	analog_masks
:IN.0
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
