Excel 68000 Mach IV 68020 Master 2325 (set 2) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
fex68km4a	fidelity/eag68k.cpp		no	no	no	yes	Excel 68000 Mach IV 68020 Master 2325 (set 2)	1989	Fidelity International	fex68k	fex68k

snap

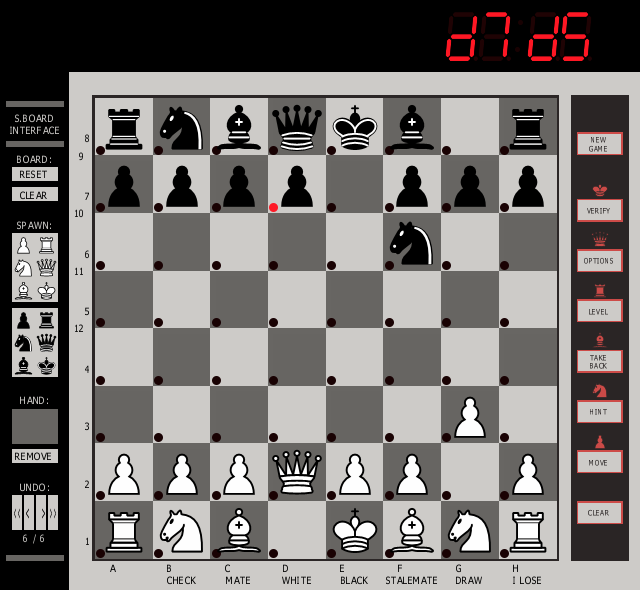

Excel 68000 Mach IV 68020 Master 2325 (set 2) png snap

Excel 68000 Mach IV 68020 Master 2325 (set 2) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
fex68km4a	53228	29/12/2025 11:31:22	640	590	96	96	0	Format24bppRgb	305:MAMEUI 0.275.0 (2025-02-26)	14cd49ff60238eb38cf6261708715b03c7ee040f

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
68020_even_master_2325.u6	32768	13ea816c	98d00fc382ddcbccb0a47c3f8d7fc73f30a15fbd	maincpu	0	good	no
68020_odd_master_2325.u7	32768	d24c7b54	3204fd600786792a618965715990c44890cc7119	maincpu	1	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68020	20000000
audio	speaker	Speaker
audio	dac	1-Bit DAC

device_ref

tag	name
:maincpu	m68020
:irq_clock	clock
:board	sensorboard
:display	pwm_display
:speaker	speaker
:dac	dac

sound

channels
1

input

players	coins	service	tilt
1		no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		8		no

port, analog

port_tag	analog_masks
:IN.0
:board:BS_CHECK
:board:CONF
:board:RANK.1
:board:RANK.10
:board:RANK.11
:board:RANK.12
:board:RANK.13
:board:RANK.2
:board:RANK.3
:board:RANK.4
:board:RANK.5
:board:RANK.6
:board:RANK.7
:board:RANK.8
:board:RANK.9
:board:SPAWN
:board:SS_CHECK
:board:UI
:board:UI_CHECK

configuration

Remember Position

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Position	board:CONF	3	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	1	no
Yes	2	no
Auto	0	yes

Show Pieces

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Pieces	board:CONF	4	UI_CHECK	4	ne	0

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	4	no
Yes	0	yes
