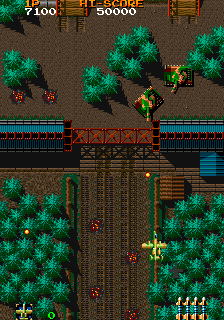

Fighting Hawk (Japan) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
fhawkj	taito/taito_l.cpp		no	no	no	yes	Fighting Hawk (Japan)	1988	Taito Corporation	fhawk	fhawk

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
b70-07.ic3	131072	939114af	66218536dcb3b34ffa01d3c9c2fee365d91cfe00	maincpu	0	good	no
b70-03.ic2	524288	42d5a9b8	10714fe95c372cec12376e615a9abe213aff12bc	maincpu	20000	good	no	b70-03.ic2
b70-09.ic31	65536	85cccaa2	5459cd8df9d94e1938008cfc17d4ebac98004bfc	audiocpu	0	good	no	b70-09.ic31
b70-08.ic12	131072	4d795f48	58040d8ccbd0572cf6aef6ea9dd646b9338a03a0	slave	0	good	no	b70-08.ic12
b70-01.ic1	524288	fcdf67e2	08a6a04a45c4adb4f5b4b0b83e90b2e5fe5cb0b1	maincpu:gfx	0	good	no	b70-01.ic1
b70-02.ic2	524288	35f7172e	f257e9db470bb6dcca491b89cb666ef6d2546887	maincpu:gfx	80000	good	no	b70-02.ic2

chip

type	tag	name	clock
cpu	maincpu	Taito TC0090LVC	6665280
cpu	audiocpu	Zilog Z80	4000000
cpu	slave	Zilog Z80	4000000
audio	mono	Speaker
audio	ymsnd	YM2203 OPN	3000000

device_ref

name
tc0090lvc
palette
z80
z80
tc0220ioc
watchdog
screen
timer
speaker
ym2203
pc060ha

sound

channels
1

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	2	8	no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:DSWA
:DSWB
:IN0
:IN1
:IN2

dipswitch

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSWA	1

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	0	yes
Cocktail	1	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSWA	2

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSWA	4

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSWA	8

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSWA	48

location

name	number	inverted
SW1	5	no
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	16	no
1 Coin/1 Credit	48	yes
2 Coins/3 Credits	0	no
1 Coin/2 Credits	32	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSWA	192

location

name	number	inverted
SW1	7	no
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
2 Coins/1 Credit	64	no
1 Coin/1 Credit	192	yes
2 Coins/3 Credits	0	no
1 Coin/2 Credits	128	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSWB	3

location

name	number	inverted
SW2	1	no
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Easy	2	no
Medium	3	yes
Hard	1	no
Hardest	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWB	4

location

name	number	inverted
SW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWB	8

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSWB	48

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	48	yes
4	32	no
5	16	no
6	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWB	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWB	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
