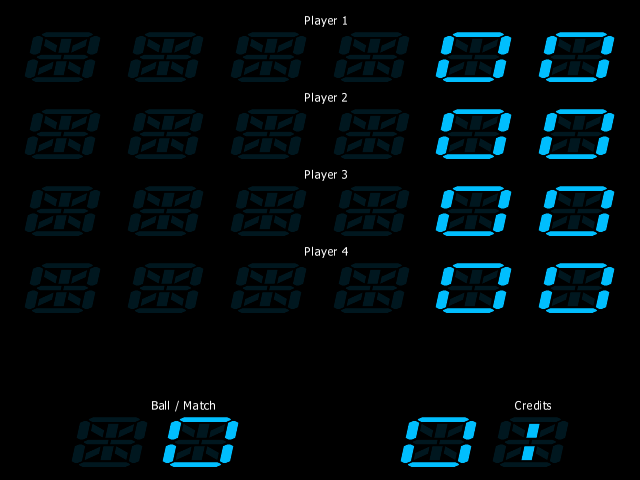

FJ Holden - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
fjholden	pinball/hankin.cpp	genpin	no	no	yes	yes	FJ Holden	1978	Hankin

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
fj_ic2.mpu	2048	b47bc2c7	42c985d83a9454fcd08b87e572e5563ebea0d052	maincpu	0	good	no
fj_ic3.mpu	2048	ceaeb7d3	9e479b985f8500983e71d6ff33ee94160e99650d	maincpu	800	good	no
fj_ic14.snd	2048	34fe3587	132714675a23c101ceb5a4d544818650ae5ccea2	audiocpu	0	good	no
fj_ic3.snd	512	09d3f020	274be0b94d341ee43357011691da82e83a7c4a00	prom	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6802	3276800
cpu	audiocpu	Motorola MC6802	3276800
audio	mechvol	Speaker
audio	samples	Samples
audio	speaker	Speaker
audio	dac	4-Bit R-2R DAC

device_ref

name
m6802
m6802
nvram
speaker
samples
speaker
dac_4bit_r2r
pia6821
pia6821
pia6821
clock
timer
ipt_merge_any_hi
ipt_merge_any_hi

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	1	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad		39		no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:TEST
:X0
:X1
:X2
:X3
:X4

dipswitch

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW0	7

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	yes
2 Coins/1 Credit	1	no
3 Coins/1 Credit	2	no
4 Coins/1 Credit	3	no
2 Coins/3 Credits	4	no
3 Coins/2 Credits	5	no
5 coins 4 credits	6	no
5 coins 2 credits	7	no

Award

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Award	DSW0	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Extra Ball	0	no
Free Game	8	yes

Match

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match	DSW0	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

Credits for exceeding high score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits for exceeding high score	DSW0	96

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	0	yes
1	32	no
2	64	no
3	96	no

Game Over Tune

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Over Tune	DSW0	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Coin Alarm

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Alarm	DSW1	1

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

S10 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S10 (game specific)	DSW1	2

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Background Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Background Sound	DSW1	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

S12 (game Specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S12 (game Specific)	DSW1	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

S13 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S13 (game specific)	DSW1	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

S14 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S14 (game specific)	DSW1	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S15 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S15 (game specific)	DSW1	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Balls

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls	DSW1	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	0	yes
5	128	no

Maximum Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Credits	DSW2	3

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5	0	no
10	1	no
15	2	yes
20	3	no

S19

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S19	DSW2	4

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

S20

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S20	DSW2	8

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8	no

Remember Bonus Multiplier

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Remember Bonus Multiplier	DSW2	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

Free Game Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Free Game Sound	DSW2	32

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Special Tune	0	no
Knocker	32	yes

Coin Counter reset

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Counter reset	DSW2	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Time out in test mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Time out in test mode	DSW2	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
