Flaming 7's (Taiwanese Hardware, v7.3) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
fl7_tw	igs/goldstar.cpp		no	no	no	yes	Flaming 7's (Taiwanese Hardware, v7.3)	199?	Cyberdyne Systems	fl7_50	fl7_50

snap

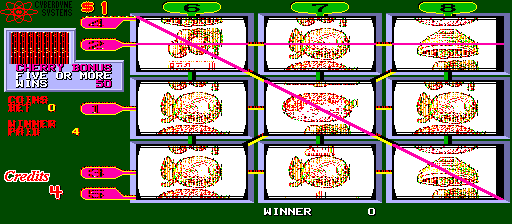

Flaming 7's (Taiwanese Hardware, v7.3) png snap

Flaming 7's (Taiwanese Hardware, v7.3) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
fl7_tw	15189	29/12/2025 11:31:22	512	224	96	96	0	Format24bppRgb	305:MAME 0.175 (Jun 29 2016)	468926fccfa725db68f0a5537f18c8e1ffe69359

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000	7864320	512	0	512	256	16	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
27c512_tw.u20	65536	50927a1b	2557069f497b23f13978294f3ac108229d9db544	maincpu	0	good	no
m27c1001_tw.u1	131072	e6099723	31e73a81166dd0d50d51ead38d348e36018d0698	gfx1	0	good	no
27c256.u3	32768	23ae8d1a	d9b7c442b6c7c58380a84b63cab7748f1c902fba	gfx2	0	good	no
am27s29.u1	512	3fe7e369	cf4ae287cb58581a4bf9e9ff1994426461fb38cc	proms	0	good	no	am27s29.u1
ds1994l-f5_tw.bin	8	c88b5fc9	672472f1b7b49175640905985b017912c8be91c5	fl7w4_id	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	snsnd	SN76489	3000000
audio	aysnd	YM2149 SSG	1500000

device_ref

tag	name
:maincpu	z80
:ppi8255_0	i8255
:ppi8255_1	i8255
:ppi8255_2	i8255
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:nvram	nvram
:mono	speaker
:snsnd	sn76489
:aysnd	ym2149
:hopper	coin_hopper
:fl7w4_id	ds2401

sound

channels
1

input

players	coins	service	tilt
1	2	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
gambling		9		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:IN0
:IN1
:IN2
:IN3
:IN4
:hopper:TEST

dipswitch

Credits Out

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Out	DSW1	3

location

name	number	inverted
DSW1	1	no
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Amusement (no credits out)	3	no
Ticket Printer	2	no
Hopper Payout	1	yes
Remote Clear	0	no

Game Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Speed	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Fast Game	4	yes
Slow Game	0	no

Lock-Up on 7 or 8 of a kind

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lock-Up on 7 or 8 of a kind	DSW1	8

location

name	number	inverted
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	8	yes
Yes	0	no

Graphics Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Graphics Type	DSW1	48

location

name	number	inverted
DSW1	5	no
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Regular Fruit	48	yes
Numbers	32	no
Graphics Option 1	16	no
Graphics Option 2	0	no

Paytable

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Paytable	DSW1	192

location

name	number	inverted
DSW1	7	no
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
9325 (92.50%)	192	yes
9326 (90.45%)	128	no
9327 (90.53%)	64	no
9328 (90.60%)	0	no

Bonus Pay

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Pay	DSW2	7

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1.00%	7	yes
2.00%	6	no
3.30%	5	no
4.00%	4	no
5.00%	3	no
6.20%	2	no
8.30%	1	no
10%	0	no

Internal Progressive

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Internal Progressive	DSW2	8

location

name	number	inverted
DSW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Not Used (Leave OFF)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Not Used (Leave OFF)	DSW2	16

location

name	number	inverted
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Not Used (Leave OFF)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Not Used (Leave OFF)	DSW2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Not Used (Leave OFF)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Not Used (Leave OFF)	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Not Used (Leave OFF)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Not Used (Leave OFF)	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Maximum Bet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Bet	DSW3	3

location

name	number	inverted
DSW3	1	no
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	3	yes
16	2	no
32	1	no
64	0	no

Coin-In Timeout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin-In Timeout	DSW3	4

location

name	number	inverted
DSW3	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Denomination

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Denomination	DSW3	56

location

name	number	inverted
DSW3	4	no
DSW3	5	no
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
$1.00	56	yes
50 Cents	48	no
25 Cents	40	no
10 Cents	32	no
5 Cents	24	no
5 Cents	16	no
5 Cents	8	no
5 Cents	0	no

Progressive Sign

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Progressive Sign	DSW3	192

location

name	number	inverted
DSW3	7	no
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	192	yes
Single Level	128	no
Multi Level	64	no
Test Mode	0	no

Button Lockout

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Button Lockout	DSW4	1

location

name	number	inverted
DSW4	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Lockout Polarity

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lockout Polarity	DSW4	2

location

name	number	inverted
DSW4	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Active High	2	yes
Active Low	0	no

Printer Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Printer Type	DSW4	12

location

name	number	inverted
DSW4	3	no
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Epson 267A	12	yes
Star 300	8	no
Ithaca 76	4	no
Citizen 3541	0	no

Paper Low Sensor

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Paper Low Sensor	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Not Used (Leave OFF)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Not Used (Leave OFF)	DSW4	32

location

name	number	inverted
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Not Used (Leave OFF)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Not Used (Leave OFF)	DSW4	64

location

name	number	inverted
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Not Used (Leave OFF)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Not Used (Leave OFF)	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
