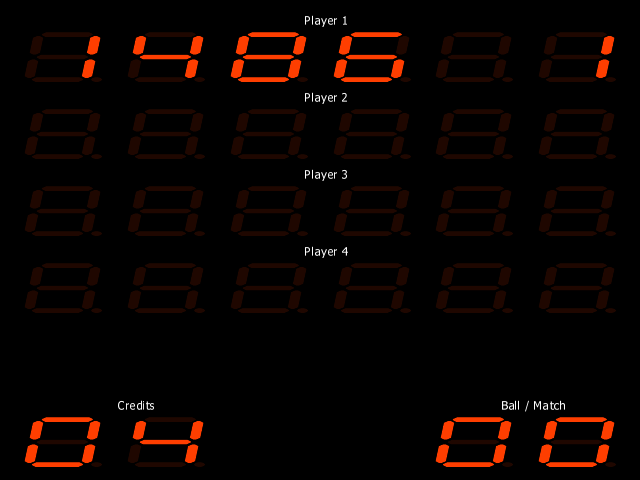

Flash (Williams, T-1) Ted Estes - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
flash_t1	pinball/s4.cpp	genpin	no	no	yes	yes	Flash (Williams, T-1) Ted Estes	1979	Williams	flash_l2	flash_l2

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
gamerom.716	2048	287f12d6	ede0c5b0ea2586d8bdf71ecadbd9cc8552bd6934	maincpu	0	good	no
green1.716	2048	2145f8ab	ddf63208559a3a08d4e88327c55426b0eed27654	maincpu	1000	good	no
green2a.716	2048	16621eec	14e1cf5f7227860a3219b2b79fa66dcf252dce98	maincpu	1800	good	no
sound1.716	2048	f4190ca3	ee234fb5c894fca5876ee6dc7ea8e89e7e0aec9c	s4sound:audiocpu	0	good	no	sound1.716

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6802	3580000
cpu	s4sound:cpu	Motorola MC6808	3580000
audio	mechvol	Speaker
audio	samples	Samples
audio	mono	Speaker
audio	s4sound	Williams System 4 Sound Board
audio	s4sound:dac	MC1408 DAC

device_ref

name
m6802
speaker
samples
pia6821
pia6821
pia6821
pia6821
nvram
ipt_merge_any_hi
ripple_counter
clock
speaker
wmss4
m6808
mc1408
pia6821

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
2	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
keypad	1	47		no
keypad	2	1		no

port, analog

port_tag	analog_masks
:DIAGS
:DS1
:DS2
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7
:s4sound:S4

dipswitch

Data tens

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Data tens	DS1	15

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	15	yes
1	7	no
2	11	no
3	3	no
4	13	no
5	5	no
6	9	no
7	1	no
8	14	no
9	6	no

Data units

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Data units	DS1	240

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	240	yes
1	112	no
2	176	no
3	48	no
4	208	no
5	80	no
6	144	no
7	16	no
8	224	no
9	96	no

Function

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Function	DS2	255

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
0	255	yes
1	127	no
2	191	no
3	63	no
4	223	no
5	95	no
6	159	no
7	31	no
8	239	no
9	111	no
10	175	no
11	47	no
12	207	no
13	79	no
14	143	no
15	15	no
16	247	no
17	119	no
18	183	no
19	55	no
20	215	no
21	87	no
22	151	no
23	23	no
24	231	no
25	103	no
26	167	no
27	39	no
28	199	no
29	71	no
30	135	no
31	7	no

Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Sounds	s4sound:S4	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Set 1	0	yes
Set 2	64	no
