Flash Gordon - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
flashgdn	pinball/by35.cpp	genpin	no	no	yes	yes	Flash Gordon	1981	Bally

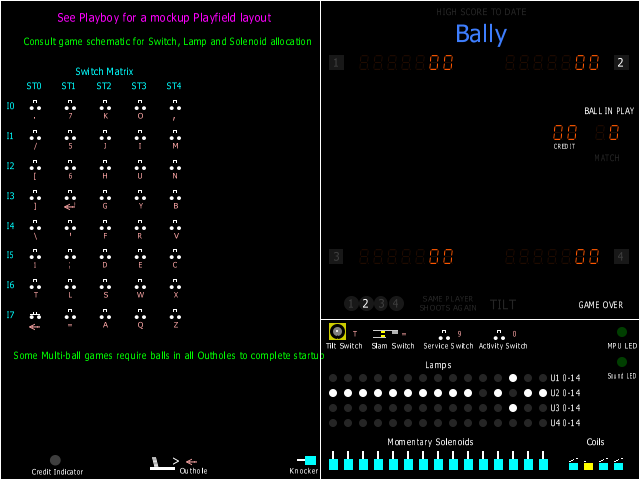

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
flashgdn	26610	20/03/2026 13:51:46	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	993d6c665e53e57c50b5ae724458ae01aa80250e

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional
834-23_2.732	4096	0c7a0d91	1f79be15817975acbc35cb08591e2289e2eca938	maincpu	1000	good	no
720-52_6.732	4096	2a43d9fb	9ff903c32b80780383578a9abaa3ef9d3bcecbc7	maincpu	1800	good	no
834-20_2.532	4096	2f8ced3e	ecdeb07c31c22ec313b55774f4358a9923c5e9e7	squawk_n_talk_ay:cpu	8000	good	no
834-18_5.532	4096	8799e80e	f255b4e7964967c82cfc2de20ebe4b8d501e3cb0	squawk_n_talk_ay:cpu	b000	good	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6800	530000
cpu	squawk_n_talk_ay:cpu	Motorola MC6802	3579545
audio	mechvol	Speaker
audio	samples	Samples
audio	squawk_n_talk_ay	Bally Squawk & Talk w/ AY8910 Board	3579545
audio	squawk_n_talk_ay:dac_filter	RC Filter
audio	squawk_n_talk_ay:dac	AD558 DAC
audio	squawk_n_talk_ay:speech_filter	RC Filter
audio	squawk_n_talk_ay:tms5200	TMS5200	640000
audio	squawk_n_talk_ay:ay_filter0	RC Filter
audio	squawk_n_talk_ay:ay_filter1	RC Filter
audio	squawk_n_talk_ay:ay_filter2	RC Filter
audio	squawk_n_talk_ay:ay	AY-3-8910A PSG	894886
audio	mono	Speaker

device_ref

tag	name
:maincpu	m6800
:nvram	nvram
:mechvol	speaker
:samples	samples
:pia_u10	pia6821
:timer_z_freq	timer
:timer_z_pulse	timer
:pia_u11	pia6821
:timer_d_freq	timer
:timer_d_pulse	timer
:squawk_n_talk_ay	squawk_n_talk_ay
:squawk_n_talk_ay:cpu	m6802
:squawk_n_talk_ay:pia1	pia6821
:squawk_n_talk_ay:pia2	pia6821
:squawk_n_talk_ay:dac_filter	filter_rc
:squawk_n_talk_ay:dac	ad558
:squawk_n_talk_ay:speech_filter	filter_rc
:squawk_n_talk_ay:tms5200	tms5200
:squawk_n_talk_ay:ay_filter0	filter_rc
:squawk_n_talk_ay:ay_filter1	filter_rc
:squawk_n_talk_ay:ay_filter2	filter_rc
:squawk_n_talk_ay:ay	ay8910
:mono	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	3	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		33		no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:DSW3
:TEST
:X0
:X1
:X2
:X3
:X4
:squawk_n_talk_ay:SW1

dipswitch

Coin Slot 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 1	DSW0	31

location

name	number	inverted
SW0	1	yes
SW0	2	yes
SW0	3	yes
SW0	4	yes
SW0	5	yes

value

name	value	default
1 Coin/1 Credit	0	yes
1 Coin/2 Credits	1	no
1 Coin/3 Credits	2	no
1 Coin/4 Credits	3	no
1 Coin/5 Credits	4	no
1 Coin/6 Credits	5	no
1 Coin/7 Credits	6	no
1 Coin/8 Credits	7	no
1 Coin/9 Credits	8	no
1 Coin/12 Credits	9	no
1 Coin/14 Credits	10	no
2 Coins/1 Credit	11	no
2 Coins/2 Credits	12	no
3 Coins/4 Credits	13	no
2 Coins/4 Credits	14	no
2 Coins/5 Credits	15	no
2 Coins/6 Credits	16	no
2 Coins/7 Credits	17	no
2 Coins/8 Credits	18	no
2 Coins/9 Credits	19	no
2 Coins/12 Credits	20	no
2 Coins/14 Credits	21	no
3 Coins/4 Credits	22	no
4 Coins/3 Credits	23	no
4 Coins/3 Credits	24	no
3 Coins/5 Credits	25	no
2 Coins/7 Credits	26	no
4 Coins/7 Credits	27	no
3 Coins/1 Credit	28	no
4 Coins/1 Credit	29	no
5 Coins/1 Credit	30	no
5 Coins/1 Credit	31	no

S6 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S6 (game specific)	DSW0	32

location

name	number	inverted
SW0	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S7 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S7 (game specific)	DSW0	64

location

name	number	inverted
SW0	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

S8 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S8 (game specific)	DSW0	128

location

name	number	inverted
SW0	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Coin Slot 3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 3	DSW1	31

location

name	number	inverted
SW1	1	yes
SW1	2	yes
SW1	3	yes
SW1	4	yes
SW1	5	yes

value

name	value	default
1 Coin/1 Credit	0	yes
1 Coin/2 Credits	1	no
1 Coin/3 Credits	2	no
1 Coin/4 Credits	3	no
1 Coin/5 Credits	4	no
1 Coin/6 Credits	5	no
1 Coin/7 Credits	6	no
1 Coin/8 Credits	7	no
1 Coin/9 Credits	8	no
1 Coin/12 Credits	9	no
1 Coin/14 Credits	10	no
2 Coins/1 Credit	11	no
2 Coins/2 Credits	12	no
3 Coins/4 Credits	13	no
2 Coins/4 Credits	14	no
2 Coins/5 Credits	15	no
2 Coins/6 Credits	16	no
2 Coins/7 Credits	17	no
2 Coins/8 Credits	18	no
2 Coins/9 Credits	19	no
2 Coins/12 Credits	20	no
2 Coins/14 Credits	21	no
3 Coins/4 Credits	22	no
4 Coins/3 Credits	23	no
4 Coins/3 Credits	24	no
3 Coins/5 Credits	25	no
2 Coins/7 Credits	26	no
4 Coins/7 Credits	27	no
3 Coins/1 Credit	28	no
4 Coins/1 Credit	29	no
5 Coins/1 Credit	30	no
5 Coins/1 Credit	31	no

S14 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S14 (game specific)	DSW1	32

location

name	number	inverted
SW1	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S15 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S15 (game specific)	DSW1	64

location

name	number	inverted
SW1	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

S16 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S16 (game specific)	DSW1	128

location

name	number	inverted
SW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Coin Slot 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 2	DSW2	15

location

name	number	inverted
SW2	1	yes
SW2	2	yes
SW2	3	yes
SW2	4	yes

value

name	value	default
Same as Slot 1	0	yes
1 Coin/1 Credit	1	no
1 Coin/2 Credits	2	no
1 Coin/3 Credits	3	no
1 Coin/4 Credits	4	no
1 Coin/5 Credits	5	no
1 Coin/6 Credits	6	no
1 Coin/7 Credits	7	no
1 Coin/8 Credits	8	no
1 Coin/9 Credits	9	no
1 Coin/10 Credits	10	no
1 Coin/11 Credits	11	no
1 Coin/12 Credits	12	no
1 Coin/13 Credits	13	no
1 Coin/14 Credits	14	no
1 Coin/15 Credits	15	no

S21 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S21 (game specific)	DSW2	16

location

name	number	inverted
SW2	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

S22 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S22 (game specific)	DSW2	32

location

name	number	inverted
SW2	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S23 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S23 (game specific)	DSW2	64

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

S24 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S24 (game specific)	DSW2	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Maximum Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Credits	DSW3	3

location

name	number	inverted
SW3	1	yes
SW3	2	yes

value

name	value	default
10	0	yes
15	1	no
25	2	no
40	3	no

Credits Displayed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Displayed	DSW3	4

location

name	number	inverted
SW3	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	4	yes

Match Feature

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match Feature	DSW3	8

location

name	number	inverted
SW3	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

S29 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S29 (game specific)	DSW3	16

location

name	number	inverted
SW3	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

S30 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S30 (game specific)	DSW3	32

location

name	number	inverted
SW3	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Balls Per Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls Per Game	DSW3	192

location

name	number	inverted
SW3	7	yes
SW3	8	yes

value

name	value	default
5	64	no
4	128	no
3	0	yes
2	192	no

clones

name	description
cosflash	Cosmic Flash
flashgdnfv	Flash Gordon (French Vocalizer sound)
flashgdnf	Flash Gordon (French)
flashgdnp1	Flash Gordon (prototype rev. 1)
flashgdnp2	Flash Gordon (prototype rev. 2)
flashgdnv	Flash Gordon (Vocalizer sound)
