Funcube 3 (v1.1) - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
funcube3	namco/funcube.cpp		no	no	no	yes	Funcube 3 (v1.1)	2001	Namco

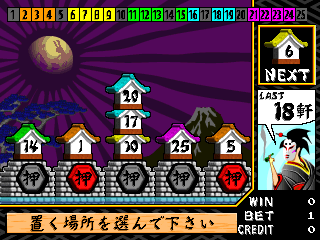

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
funcube3	24899	29/12/2025 11:31:22	320	240	96	96	0	Format24bppRgb	305:MAME 0.143u7 (Oct 10 2011)	500013a64bc45085a27c9423612472b4d9bff667

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	240	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional
fc31_prg-0a.u4	524288	ed7d70dd	4ebfca9e60ab5e8de22821f0475abf515c83ce53	maincpu	0	good	no
fc21_iopr-0.u49	131072	314555ef	b17e3926c8ef7f599856c198c330d2051aae13ad	sub	0	good	no
fc31a.u57	1024			pic	0	nodump	no
fc31_obj-0.u43	4194304	08c5eb6f	016d8f3067db487ccd47188142743897c9722b1f	video	0	good	no
fc31_obj-1.u42	4194304	4dadc76e	cf82296b38dc22a618fd178816316af05f2459b3	video	2	good	no
fc31_snd-0.u47	2097152	36b03769	20e583359421e0933c781a487fe5f7220052a6d4	oki	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Freescale MCF5206E	25447000
cpu	sub	Hitachi H8/3007	14745600
audio	speaker	Speaker
audio	oki	OKI MSM9810 ADPCM	4096000

device_ref

tag	name
:maincpu	mcf5206e
:maincpu:sim	coldfire_sim
:maincpu:sim:watchdog	watchdog
:maincpu:timer1	coldfire_timer
:maincpu:timer2	coldfire_timer
:maincpu:uart1	mcf5206euart
:maincpu:uart1:cha	duart_channel
:maincpu:uart1:chb	duart_channel
:maincpu:uart2	mcf5206euart
:maincpu:uart2:cha	duart_channel
:maincpu:uart2:chb	duart_channel
:maincpu:mbus	coldfire_mbus
:maincpu:dma0	coldfire_dma
:maincpu:dma1	coldfire_dma
:sub	h83007
:sub:intc	h8h_intc
:sub:adc	h8_adc_3006
:sub:port4	h8_digital_port
:sub:port6	h8_digital_port
:sub:port7	h8_digital_port
:sub:port8	h8_digital_port
:sub:port9	h8_digital_port
:sub:porta	h8_digital_port
:sub:portb	h8_digital_port
:sub:timer8_0	h8h_timer8_channel
:sub:timer8_1	h8h_timer8_channel
:sub:timer8_2	h8h_timer8_channel
:sub:timer8_3	h8h_timer8_channel
:sub:timer16	h8_timer16
:sub:timer16:0	h8h_timer16_channel
:sub:timer16:1	h8h_timer16_channel
:sub:timer16:2	h8h_timer16_channel
:sub:sci0	h8_sci
:sub:sci1	h8_sci
:sub:sci2	h8_sci
:sub:watchdog	h8_watchdog
:touchscreen	funcube_touchscreen
:nvram	nvram
:watchdog	watchdog
:screen	screen
:palette	palette
:video	x1_020_dx_101
:speaker	speaker
:oki	okim9810

sound

channels
1

feature

type	status	overall
graphics	imperfect

input

players	coins	service	tilt
3	1	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta
gambling	1	2		no
joy	2	2	8	no
lightgun	3	1		yes	0	71	45	5

port, analog

port_tag	analog_masks
:BATTERY
:DEBUG
:SWITCH
:touchscreen:TOUCH_BTN
:touchscreen:TOUCH_X	255
:touchscreen:TOUCH_Y	255

dipswitch

Battery

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Battery	BATTERY	16

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

Debug 0

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Debug 0	DEBUG	65536

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	65536	no

Debug 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Debug 1	DEBUG	131072

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	131072	no

Debug 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Debug 2	DEBUG	262144

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	262144	no

Debug 3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Debug 3	DEBUG	524288

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	524288	no

Debug 4

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Debug 4	DEBUG	1048576

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1048576	no

Debug 5

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Debug 5	DEBUG	2097152

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2097152	no

Debug 6

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Debug 6	DEBUG	4194304

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4194304	no

Debug 7

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Debug 7	DEBUG	8388608

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8388608	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	SWITCH	64

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	SWITCH	128

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
