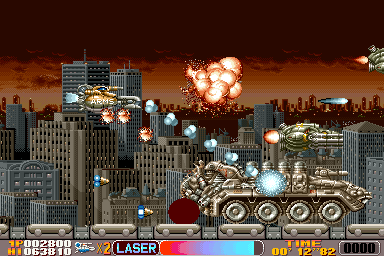

Armed Police Unit Gallop (Japan, M72 hardware) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
gallopm72	irem/m72.cpp		no	no	no	yes	Armed Police Unit Gallop (Japan, M72 hardware)	1991	Irem	cosmccop	cosmccop

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	256	55.017606	8000000	512	64	448	284	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional	merge
cc_c-h0-.ic40	131072	2217dcd0	9485b6c3eec99e720439e69dcbe0e55798bbff1c	maincpu	1	good	no
cc_c-l0-.ic37	131072	ff39d7fb	fad95f76050fce04464268b5edff6622b2cb798f	maincpu	0	good	no
cc_c-h3-.ic43	131072	9b2bbab9	255d4dda55be667f5f1f4324e9e66111738e79b3	maincpu	40001	good	no
cc_c-l3-.ic34	131072	acd3278e	83d7ddfbdb4bc9548a179b728351a21b3b0ac134	maincpu	40000	good	no
cc_c-pr-.ic1	4096	ac4421b1	4614acbc4efb26b27f3871b4d22879d74df5e2e0	mcu	0	good	no
cc_c-00.ic53	131072	9d99deaa	acf16bea0f482306107d2a305c568406b6c21e9a	sprites	0	good	no	cc_b-n0-.ic31
cc_c-10.ic51	131072	7eb083ed	31fa7d532fd46e861c3d19d5b08661653f685a49	sprites	20000	good	no	cc_b-n1-.ic21
cc_c-20.ic49	131072	9421489e	e43d042bf8b4ebed93558d74ec479ec60a01ca5c	sprites	40000	good	no	cc_b-n2-.ic32
cc_c-30.ic47	131072	920ec735	2d0949b43dddce7317c45910d6e4868ddf010806	sprites	60000	good	no	cc_b-n3-.ic22
cc_b-a0.ic21	65536	a33472bd	962047fe3dd1fb996285ecef615a8ebdb529adef	tiles0	0	good	no
cc_b-a1.ic22	65536	118b1f2d	7413ccc67a8aa9dae156e6ee122b1ca5beeb9a76	tiles0	10000	good	no
cc_b-a2.ic20	65536	83cebf48	12847827ecbf6b493eb9dbddd0a469729d87a451	tiles0	20000	good	no
cc_b-a3.ic23	65536	572903fc	03305301bcf939e97044e746594736b1ca1d7c0a	tiles0	30000	good	no
cc_b-b0.ic26	65536	0df5b439	0775cf92139a111542c8b5f940da0f7f43020982	tiles1	0	good	no
cc_b-b1.ic27	65536	010b778f	cc5bfeb0fbe0ed2fe513458c5785ec0ce5b02f53	tiles1	10000	good	no
cc_b-b2.ic25	65536	bda9f6fb	a6b655ae5bff0568c1fb56ee8a3874fc6524052c	tiles1	20000	good	no
cc_b-b3.ic24	65536	d361ba3f	7348fdae03e997e05187a2726eb221edb92553df	tiles1	30000	good	no
cc_c-v0.ic44	131072	6247bade	4bc9f86acd09908c74b1ab0e7817c4ff1cad6f0b	samples	0	good	no	cc_d-v0-.ic14
m72_a-8l-.ic66	256	b460c438	00e20cf754b6fd5138ee4d2f6ec28dff9e292fe6	proms	0	good	no	ken_b-4n-.ic23
m72_a-9l-.ic75	256	a4f2c4bc	f13b0a4b52dcc6704063b676f09d83dcba170133	proms	100	good	no
m72_a-3d-.ic11	279	8a3732ff	6e3039e7dc424cbef7156312fa1ce67d7b082d30	pals	0	good	no
m72_a-4d-.ic19	279	56c29834	a66c589845f9995c673325f1161c687eb90d68c1	pals	200	good	no
cc_c-3f-.ic13	279	16ca7c50	8291bb2fc12c374a970cdb7da6315b32a01cf3b8	pals	400	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC V30	8000000
cpu	soundcpu	Zilog Z80	3579545
cpu	mcu	Intel 8751	8000000
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	dac	8-Bit R-2R DAC

device_ref

name
v30
z80
pic8259
buffered_spriteram16
gfxdecode
palette
screen
speaker
generic_latch_8
rst_neg_buffer
m72_audio
ym2151
dac_8bit_r2r
mb8421_mb8431_16
generic_latch_8
i8751

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	4	8	no
joy	2	4	8	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1

dipswitch

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	3

location

name	number	inverted
SW1	1	no
SW1	2	no

value

name	value	default
2	2	no
3	3	yes
4	1	no
5	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	12

location

name	number	inverted
SW1	3	no
SW1	4	no

value

name	value	default
Very Easy	0	no
Easy	8	no
Normal	12	yes
Hard	4	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	16

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSW	32

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	32	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	64

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	128

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	256

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW	1536

location

name	number	inverted
SW2	2	no
SW2	3	no

value

name	value	default
Upright	0	yes
Upright (2P)	512	no
Cocktail	1536	no

Coin Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Mode	DSW	2048

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mode 1	2048	yes
Mode 2	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	12288	DSW	2048	eq	0

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default
5 Coins/1 Credit	0	no
3 Coins/1 Credit	4096	no
2 Coins/1 Credit	8192	no
1 Coin/1 Credit	12288	yes

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	49152	DSW	2048	eq	0

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default
1 Coin/2 Credits	49152	yes
1 Coin/3 Credits	32768	no
1 Coin/5 Credits	16384	no
1 Coin/6 Credits	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	61440	DSW	2048	ne	0

location

name	number	inverted
SW2	5	no
SW2	6	no
SW2	7	no
SW2	8	no

value

name	value	default
6 Coins/1 Credit	40960	no
5 Coins/1 Credit	45056	no
4 Coins/1 Credit	49152	no
3 Coins/1 Credit	53248	no
2 Coins/1 Credit	57344	no
2 Coins to Start/1 to Continue	4096	no
3 Coins/2 Credits	12288	no
4 Coins/3 Credits	8192	no
1 Coin/1 Credit	61440	yes
2 Coins/3 Credits	16384	no
1 Coin/2 Credits	36864	no
1 Coin/3 Credits	32768	no
1 Coin/4 Credits	28672	no
1 Coin/5 Credits	24576	no
1 Coin/6 Credits	20480	no
Free Play	0	no
