Gold Ball (Field Service Upgrade)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
goldballn	pinball/by35.cpp	genpin	no	no	yes	yes	Gold Ball (Field Service Upgrade)	1983	Bally	goldball	goldball

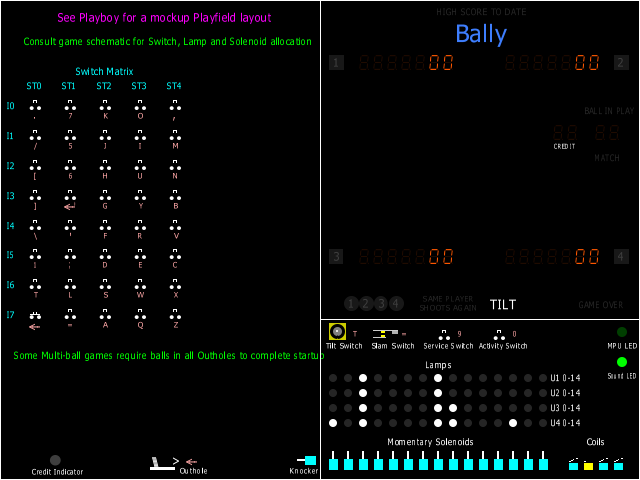

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
goldballn	26133	20/03/2026 14:07:38	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	224c426a90224855b2842482fa39d62e719e3c5c

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	preliminary	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
u2.532	4096	aa6eb9d6	a73cc832450e718d9b8484e409a1f8093d91d786	maincpu	1000	good	no
goldball.u6	4096	9b6e79d0	4fcda91bbe930e6131d94964a08459e395f841af	maincpu	1800	good	no	goldball.u6
gb_u4.532	4096	2dcb0315	8cb9c9f627f0c8420d3b3d9f0d10d77a82c8be56	as3022:cpu	1000	good	no	gb_u4.532

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6800	530000
cpu	as3022:cpu	Motorola MC6808	3579545
audio	mechvol	Speaker
audio	samples	Samples
audio	as3022	Bally AS3022 Sound Board	3579545
audio	as3022:ay_filter0	RC Filter
audio	as3022:ay_filter1	RC Filter
audio	as3022:ay_filter2	RC Filter
audio	as3022:ay	AY-3-8910A PSG	894886
audio	mono	Speaker

device_ref

tag	name
:maincpu	m6800
:nvram	nvram
:mechvol	speaker
:samples	samples
:pia_u10	pia6821
:timer_z_freq	timer
:timer_z_pulse	timer
:pia_u11	pia6821
:timer_d_freq	timer
:timer_d_pulse	timer
:as3022	as3022
:as3022:cpu	m6808
:as3022:pia	pia6821
:as3022:ay_filter0	filter_rc
:as3022:ay_filter1	filter_rc
:as3022:ay_filter2	filter_rc
:as3022:ay	ay8910
:mono	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	3	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		33		no

port, analog

port_tag	analog_masks
:DSW0
:DSW1
:DSW2
:DSW3
:TEST
:X0
:X1
:X2
:X3
:X4
:as3022:SW1

dipswitch

Coin Slot 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 1	DSW0	31

location

name	number	inverted
SW0	1	yes
SW0	2	yes
SW0	3	yes
SW0	4	yes
SW0	5	yes

value

name	value	default
2 Coins/3 Credits	0	no
1 Coin/1 Credit	2	yes
2 Coins/1 Credit	3	no
1 Coin/2 Credits	4	no
2 Coins/2 Credits	5	no
1 Coin/3 Credits	6	no
2 Coins/3 Credits	7	no
1 Coin/4 Credits	8	no
2 Coins/4 Credits	9	no
1 Coin/5 Credits	10	no
2 Coins/5 Credits	11	no
1 Coin/6 Credits	12	no
2 Coins/6 Credits	13	no
1 Coin/7 Credits	14	no
2 Coins/7 Credits	15	no
1 Coin/8 Credits	16	no
2 Coins/8 Credits	17	no
1 Coin/9 Credits	18	no
2 Coins/9 Credits	19	no
1 Coin/10 Credits	20	no
2 Coins/10 Credits	21	no
1 Coin/11 Credits	22	no
2 Coins/11 Credits	23	no
1 Coin/12 Credits	24	no
2 Coins/12 Credits	25	no
1 Coin/13 Credits	26	no
2 Coins/13 Credits	27	no
1 Coin/14 Credits	28	no
2 Coins/14 Credits	29	no
1 Coin/15 Credits	30	no
2 Coins/15 Credits	31	no

Award for Beating Highest Score

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Award for Beating Highest Score	DSW0	96

location

name	number	inverted
SW0	6	yes
SW0	7	yes

value

name	value	default
Nothing	0	no
1 Credit	32	no
2 Credits	64	yes
3 Credits	96	no

Melody Option 1

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Melody Option 1	DSW0	128

location

name	number	inverted
SW0	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes

Coin Slot 3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 3	DSW1	31

location

name	number	inverted
SW1	1	yes
SW1	2	yes
SW1	3	yes
SW1	4	yes
SW1	5	yes

value

name	value	default
2 Coins/3 Credits	0	no
1 Coin/1 Credit	2	yes
2 Coins/1 Credit	3	no
1 Coin/2 Credits	4	no
2 Coins/2 Credits	5	no
1 Coin/3 Credits	6	no
2 Coins/3 Credits	7	no
1 Coin/4 Credits	8	no
2 Coins/4 Credits	9	no
1 Coin/5 Credits	10	no
2 Coins/5 Credits	11	no
1 Coin/6 Credits	12	no
2 Coins/6 Credits	13	no
1 Coin/7 Credits	14	no
2 Coins/7 Credits	15	no
1 Coin/8 Credits	16	no
2 Coins/8 Credits	17	no
1 Coin/9 Credits	18	no
2 Coins/9 Credits	19	no
1 Coin/10 Credits	20	no
2 Coins/10 Credits	21	no
1 Coin/11 Credits	22	no
2 Coins/11 Credits	23	no
1 Coin/12 Credits	24	no
2 Coins/12 Credits	25	no
1 Coin/13 Credits	26	no
2 Coins/13 Credits	27	no
1 Coin/14 Credits	28	no
2 Coins/14 Credits	29	no
1 Coin/15 Credits	30	no
2 Coins/15 Credits	31	no

Score Level Award

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Score Level Award	DSW1	96

location

name	number	inverted
SW1	6	yes
SW1	7	yes

value

name	value	default
Nothing	0	no
Extra Ball	64	no
Replay	96	yes

Balls Per Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Balls Per Game	DSW1	128

location

name	number	inverted
SW1	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
3	0	no
5	128	yes

Maximum Credits

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Maximum Credits	DSW2	7

location

name	number	inverted
SW2	1	yes
SW2	2	yes
SW2	3	yes

value

name	value	default
5	0	no
10	1	yes
15	2	no
20	3	no
25	4	no
30	5	no
35	6	no
40	7	no

Credits Displayed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Displayed	DSW2	8

location

name	number	inverted
SW2	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	8	yes

Match Feature

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Match Feature	DSW2	16

location

name	number	inverted
SW2	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	16	yes

S22 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S22 (game specific)	DSW2	32

location

name	number	inverted
SW2	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S23 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S23 (game specific)	DSW2	64

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

S24 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S24 (game specific)	DSW2	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no

Coin Slot 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Slot 2	DSW3	15

location

name	number	inverted
SW3	1	yes
SW3	2	yes
SW3	3	yes
SW3	4	yes

value

name	value	default
Same as Slot 1	0	yes
1 Coin/1 Credit	1	no
1 Coin/2 Credits	2	no
1 Coin/3 Credits	3	no
1 Coin/4 Credits	4	no
1 Coin/5 Credits	5	no
1 Coin/6 Credits	6	no
1 Coin/7 Credits	7	no
1 Coin/8 Credits	8	no
1 Coin/9 Credits	9	no
1 Coin/10 Credits	10	no
1 Coin/11 Credits	11	no
1 Coin/12 Credits	12	no
1 Coin/13 Credits	13	no
1 Coin/14 Credits	14	no
1 Coin/15 Credits	15	no

S29 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S29 (game specific)	DSW3	16

location

name	number	inverted
SW3	5	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	16	no

S30 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S30 (game specific)	DSW3	32

location

name	number	inverted
SW3	6	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

S31 (game specific)

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
S31 (game specific)	DSW3	64

location

name	number	inverted
SW3	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Melody Option 2

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Melody Option 2	DSW3	128

location

name	number	inverted
SW3	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	128	yes
