Golden Axe (set 5, US) (FD1094 317-0122)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
goldnaxeu	sega/segas16b.cpp		no	no	no	yes	Golden Axe (set 5, US) (FD1094 317-0122)	1989	Sega	goldnaxe	goldnaxe

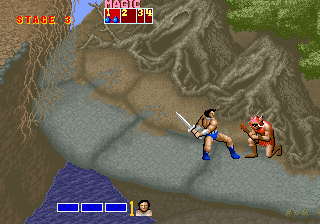

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
goldnaxeu	25572	29/12/2025 11:31:23	320	224	96	96	0	Format24bppRgb	305:MAME 0.127u4 (Sep 18 2008)	8f3b291a8cccfd286b2385f6df8e500c7b55b47e

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
epr-12543.ic2	262144	b0df9ca4	240f3c2998f969569d992f796e006f5ea4434e55	maincpu	0	good	no
epr-12542.ic1	262144	b7994d3c	87570f23826922fca465c69df6b892c59f14e103	maincpu	1	good	no
317-0122.key	8192	f123c2fb	83463a6918afde0a6f7d919e00127ffdc563efd1	maincpu:key	0	good	no
epr-12385.ic19	131072	b8a4e7e0	9b36f50209d45a835ded53eb045f63c649b02fc9	tiles	0	good	no	epr-12385.ic19
epr-12386.ic20	131072	25d7d779	2de14a76a5176d5abc7e7f7f723146c620927610	tiles	20000	good	no	epr-12386.ic20
epr-12387.ic21	131072	c7fcadf3	5f0fd600a75a02749935af21e1e0d2c714c6417e	tiles	40000	good	no	epr-12387.ic21
mpr-12378.ic9	262144	119e5a82	261ed2bc4ebac7142e2ecca9f03c91242e792a98	sprites	1	good	no	mpr-12378.ic9
mpr-12379.ic12	262144	1a0e8c57	674f1ae7db632876fff346e76786801ae19d9799	sprites	0	good	no	mpr-12379.ic12
mpr-12380.ic10	262144	bb2c0853	3f3b546d078f22d787c93ee74d9ad3a6e84383ac	sprites	40001	good	no	mpr-12380.ic10
mpr-12381.ic13	262144	81ba6ecc	7f59e4d86a192b97e92729371b78c3f1c784a0b5	sprites	40000	good	no	mpr-12381.ic13
mpr-12382.ic11	262144	81601c6f	604bc5613c6c734a06860303ba36d61bb54508a0	sprites	80001	good	no	mpr-12382.ic11
mpr-12383.ic14	262144	5dbacf7a	236866fb94672b13cbb2cb479324e61de87eeb34	sprites	80000	good	no	mpr-12383.ic14
epr-12390.ic8	32768	399fc5f5	6f290b36dc71ff4759598e2a9c185a8945a3c9e7	soundcpu	0	good	no	epr-12390.ic8
mpr-12384.ic6	131072	6218d8e7	5a745c750efb4a61716f99befb7ed14cc84e9973	soundcpu	10000	good	no	mpr-12384.ic6
315-5298.b9	235	39b47212	432b47aee5ecbf08a8a6dc2f8379c816feb86328	plds	0	good	no	315-5298.b9

chip

type	tag	name	clock
cpu	maincpu	Hitachi FD1094 Encrypted CPU	10000000
cpu	soundcpu	Zilog Z80	5000000
audio	mono	Speaker
audio	ym2151	YM2151 OPM	4000000
audio	upd	NEC uPD7759	640000
audio	netlist	Netlist Sound Device

device_ref

tag	name
:maincpu	fd1094
:soundcpu	z80
:nvram	nvram
:mapper	sega_315_5195
:gfxdecode	gfxdecode
:palette	palette
:screen	screen
:sprites	sega_sys16b_sprite
:segaic16vid	segaic16_video
:mono	speaker
:ym2151	ym2151
:upd	upd7759
:netlist	netlist_sound
:netlist:cin0	nl_stream_in
:netlist:cin1	nl_stream_in
:netlist:cin2	nl_stream_in
:netlist:cout0	nl_stream_out
:multiplier	sega_315_5248
:cmptimer_1	sega_315_5250
:cmptimer_2	sega_315_5250

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	3	8	no
joy	2	3	8	no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:P1
:P2
:SERVICE
:UNUSED

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW1	15

location

name	number	inverted
SW1	1	no
SW1	2	no
SW1	3	no
SW1	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no
Free Play (if Coin B too) or 1/1	0	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW1	240

location

name	number	inverted
SW1	5	no
SW1	6	no
SW1	7	no
SW1	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no
Free Play (if Coin A too) or 1/1	0	no

Credits Needed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credits Needed	DSW2	1

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Credit To Start	1	yes
2 Credits To Start	0	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW2	2

location

name	number	inverted
SW2	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW2	60

location

name	number	inverted
SW2	3	no
SW2	4	no
SW2	5	no
SW2	6	no

value

name	value	default
Special	0	no
Easiest	20	no
Easier	52	no
Easy	28	no
Normal	60	yes
Hard	56	no
Harder	44	no
Hardest	40	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	64

location

name	number	inverted
SW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW2	128

location

name	number	inverted
SW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
