Golden Star - mame (0287) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
goldstar	igs/goldstar.cpp		no	no	no	yes	Golden Star	199?	IGS

snap

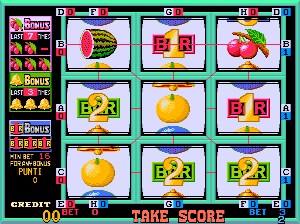

Golden Star png snap

Golden Star jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
goldstar	19481	29/12/2025 11:31:23	300	224	96	96	0	Format24bppRgb	305:MAMEUI 0.277.0 (2025-04-30)	cb0da30964942895592ec3834efabac7d30d4895

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	512	224	60.000000								no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
gs4-cpu.bin	65536	73e47d4d	df2d8233572dc12e8a4b56e5d4f6c566e4ababc9	maincpu	0	good	no
gs2.bin	131072	a2d5b898	84cca22c91628cfefb67013652b151f034a06159	gfx1	0	good	no
gs3.bin	32768	8454ce3c	74686ebb91f191db8cbc3d0417a5e8112c5b67b1	gfx2	0	good	no
gs1-snd.bin	131072	9d58960f	c68edf95743e146398aabf6b9617d18e1f9bf25b	oki	0	good	no

chip

type	tag	name	clock
cpu	maincpu	Zilog Z80	3000000
audio	mono	Speaker
audio	aysnd	AY-3-8910A PSG	1500000
audio	oki	OKI MSM6295 ADPCM	1056000

device_ref

tag	name
:maincpu	z80
:screen	screen
:gfxdecode	gfxdecode
:palette	palette
:nvram	nvram
:mono	speaker
:aysnd	ay8910
:oki	okim6295
:hopper	ticket_dispenser

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
gambling		4		no

port, analog

port_tag	analog_masks
:DSW1
:DSW2
:DSW3
:DSW4
:DSW5
:DSW6
:DSW7
:IN0
:IN1
:UNK1
:UNK2
:hopper:TEST

dipswitch

Game Style

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Game Style	DSW1	1

location

name	number	inverted
DSW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Tokens	1	yes
Tickets	0	no

Hopper Out Switch

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Out Switch	DSW1	2

location

name	number	inverted
DSW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Active Low	2	yes
Active High	0	no

Payout Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Payout Mode	DSW1	4

location

name	number	inverted
DSW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Payout Switch	4	yes
Automatic	0	no

'7' In Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
'7' In Double Up Game	DSW1	8

location

name	number	inverted
DSW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Lose	8	yes
Even	0	no

Double Up Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game Pay Rate	DSW1	16

location

name	number	inverted
DSW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
60%	16	yes
70%	0	no

Double Up Game

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Double Up Game	DSW1	32

location

name	number	inverted
DSW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Bet Max

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bet Max	DSW1	192

location

name	number	inverted
DSW1	7	no
DSW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	192	no
16	128	no
32	64	no
50	0	yes

Main Game Pay Rate

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Main Game Pay Rate	DSW2	7

location

name	number	inverted
DSW2	1	no
DSW2	2	no
DSW2	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
40%	7	no
45%	6	no
50%	5	no
55%	4	no
60%	3	no
65%	2	no
70%	1	no
75%	0	yes

Hopper Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Hopper Limit	DSW2	24

location

name	number	inverted
DSW2	4	no
DSW2	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
300	24	no
500	16	no
1000	8	no
Unlimited	0	yes

100 Odds Sound

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
100 Odds Sound	DSW2	32

location

name	number	inverted
DSW2	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	32	no

Key-In Type

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Key-In Type	DSW2	64

location

name	number	inverted
DSW2	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
B-Type	64	no
A-Type	0	yes

Center Super 7 Bet Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Center Super 7 Bet Limit	DSW2	128

location

name	number	inverted
DSW2	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Unlimited	128	no
Limited	0	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	1

location

name	number	inverted
DSW3	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	2

location

name	number	inverted
DSW3	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW3	12

location

name	number	inverted
DSW3	3	no
DSW3	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/10 Credits	0	yes
1 Coin/20 Credits	4	no
1 Coin/50 Credits	8	no
1 Coin/100 Credits	12	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	16

location

name	number	inverted
DSW3	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW3	32

location

name	number	inverted
DSW3	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Coin C

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin C	DSW3	192

location

name	number	inverted
DSW3	7	no
DSW3	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Coin/1 Credit	0	no
1 Coin/2 Credits	64	yes
1 Coin/5 Credits	128	no
1 Coin/10 Credits	192	no

Credit Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Credit Limit	DSW4	7

location

name	number	inverted
DSW4	1	no
DSW4	2	no
DSW4	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
5,000	7	yes
10,000	6	no
20,000	5	no
30,000	4	no
40,000	3	no
50,000	2	no
100,000	1	no
Unlimited	0	no

Display Of Payout Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Display Of Payout Limit	DSW4	8

location

name	number	inverted
DSW4	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW4	16

location

name	number	inverted
DSW4	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Min. Bet For Bonus Play

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Min. Bet For Bonus Play	DSW4	32

location

name	number	inverted
DSW4	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
8	0	no
16	32	yes

Reel Speed

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Reel Speed	DSW4	64

location

name	number	inverted
DSW4	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Low	64	yes
High	0	no

Ticket Payment

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Ticket Payment	DSW4	128

location

name	number	inverted
DSW4	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
1 Ticket/100	128	no
Pay All	0	yes

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW5	1

location

name	number	inverted
DSW5	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW5	2

location

name	number	inverted
DSW5	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW5	4

location

name	number	inverted
DSW5	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW5	8

location

name	number	inverted
DSW5	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW5	16

location

name	number	inverted
DSW5	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	16	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW5	32

location

name	number	inverted
DSW5	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	32	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW5	64

location

name	number	inverted
DSW5	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DSW5	128

location

name	number	inverted
DSW5	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Show Woman

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Show Woman	DSW7	32

location

name	number	inverted
DSW7	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	32	no
Yes	0	yes

clones

name	description
goldfrui	Gold Fruit
gregular	Golden Regular (version 388/2000)
goldstbl	Golden Star (Blue version)
goldstbla	Golden Star (Blue version, newer)
moonlghtc	Moon Light (v.02L0A, high program, alt gfx)
moonlghtb	Moon Light (v.02L0A, low program)
moonlghta	Moon Light (v.0629, high program)
moonlght	Moon Light (v.0629, low program)
super9	Super Nove (Playmark, V. M271B)
super9a	Super Nove (Playmark, V. M271C)
