Grand Lizard (L-1) - mame (0288) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
grand_l1	pinball/s11.cpp	genpin	no	no	yes	yes	Grand Lizard (L-1)	1986	Williams	grand_l4	grand_l4

snap

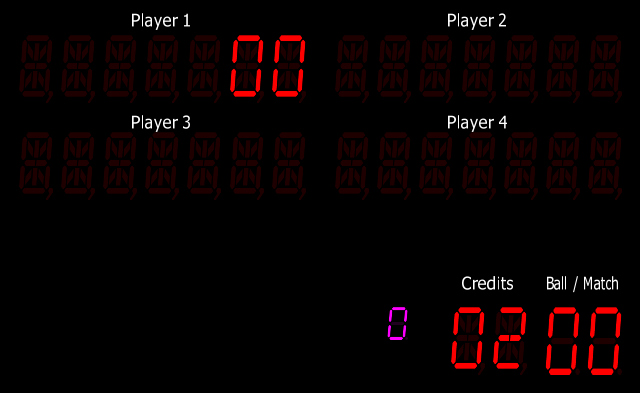

Grand Lizard (L-1) png snap

Grand Lizard (L-1) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
grand_l1	14942	29/12/2025 11:31:23	640	393	96	96	0	Format24bppRgb	305:MAME 0.268.1 (Aug 1 2024)	9e59510be3420ab0d34c30514f1380fbe52a929b

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
lzrd_u26.l1	8192	540c80c3	9da1f9683be5bc6b82cd5fb53dd9e74010a6c92b	maincpu	4000	good	no
lzrd_u27.l1	32768	63072df5	57f39f8b80e71cc3df0d5a186d7227af3c0ed4cc	maincpu	8000	good	no
lzrd_u21.l1	16384	98859d37	08429b9e6a3b3007815373dc280b985e3441aa9f	audiocpu	c000	good	no	lzrd_u21.l1
lzrd_u22.l1	16384	4e782eba	b44ab499128300175bdb57f07ffe2992c82e47e4	audiocpu	4000	good	no	lzrd_u22.l1
lzrd_u4.l1	32768	4baafc11	3507f5f37e02688fa56cf5bb303eaccdcedede06	bg:cpu	0	good	no	lzrd_u4.l1

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6802	4000000
cpu	audiocpu	Motorola MC6808	4000000
cpu	bg:cpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	dac	MC1408 DAC
audio	cvsd_filter2	Biquad Filter
audio	cvsd_filter	Biquad Filter
audio	hc55516	HC-55516
audio	bg	Williams System 11 Background Sound Board
audio	bg:dac	MC1408 DAC
audio	speaker	Speaker

device_ref

tag	name
:maincpu	m6802
:mainirq	ipt_merge_any_hi
:piairq	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:pia21	pia6821
:pia24	pia6821
:pia28	pia6821
:pia2c	pia6821
:pia30	pia6821
:pia34	pia6821
:nvram	nvram
:audiocpu	m6808
:audioirq	ipt_merge_any_hi
:dac	mc1408
:cvsd_filter2	filter_biquad
:cvsd_filter	filter_biquad
:hc55516	hc55516
:pias	pia6821
:bg	s11_bgs
:bg:cpu	mc6809e
:bg:dac	mc1408
:bg:pia40	pia6821
:speaker	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		52		no

port, analog

port_tag	analog_masks
:DIAGS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

configuration

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DIAGS	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
German	0	no
English	16	yes
