Grand Lizard (L-3) - mame (0288) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
grand_l3	pinball/s11.cpp	genpin	no	no	yes	yes	Grand Lizard (L-3)	1986	Williams	grand_l4	grand_l4

snap

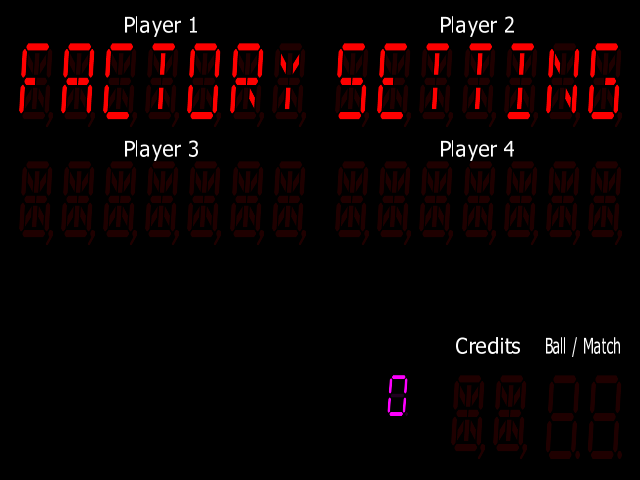

Grand Lizard (L-3) png snap

Grand Lizard (L-3) jpg snap thumbnail

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
grand_l3	19041	20/03/2026 14:10:46	640	480	96	96	0	Format24bppRgb	305:MAME 0.286 (mame0286)	d01d72dc4ed9a8ee4e0fd87aa50b43ac0843c8ea

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
preliminary	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
lzrd_u26.l3	8192	5fe50db6	7e2adfefce5c33ad605606574dbdfb2642aa0e85	maincpu	4000	good	no	lzrd_u26.l3
lzrd_u27.l3	32768	9061dfdc	06e0add721afa0a89ad4961cddbc5409f95362df	maincpu	8000	good	no
lzrd_u21.l1	16384	98859d37	08429b9e6a3b3007815373dc280b985e3441aa9f	audiocpu	c000	good	no	lzrd_u21.l1
lzrd_u22.l1	16384	4e782eba	b44ab499128300175bdb57f07ffe2992c82e47e4	audiocpu	4000	good	no	lzrd_u22.l1
lzrd_u4.l1	32768	4baafc11	3507f5f37e02688fa56cf5bb303eaccdcedede06	bg:cpu	0	good	no	lzrd_u4.l1

chip

type	tag	name	clock
cpu	maincpu	Motorola MC6802	4000000
cpu	audiocpu	Motorola MC6808	4000000
cpu	bg:cpu	Motorola MC6809E	2000000
audio	mechvol	Speaker
audio	samples	Samples
audio	dac	MC1408 DAC
audio	cvsd_filter2	Biquad Filter
audio	cvsd_filter	Biquad Filter
audio	hc55516	HC-55516
audio	bg	Williams System 11 Background Sound Board
audio	bg:dac	MC1408 DAC
audio	speaker	Speaker

device_ref

tag	name
:maincpu	m6802
:mainirq	ipt_merge_any_hi
:piairq	ipt_merge_any_hi
:mechvol	speaker
:samples	samples
:pia21	pia6821
:pia24	pia6821
:pia28	pia6821
:pia2c	pia6821
:pia30	pia6821
:pia34	pia6821
:nvram	nvram
:audiocpu	m6808
:audioirq	ipt_merge_any_hi
:dac	mc1408
:cvsd_filter2	filter_biquad
:cvsd_filter	filter_biquad
:hc55516	hc55516
:pias	pia6821
:bg	s11_bgs
:bg:cpu	mc6809e
:bg:dac	mc1408
:bg:pia40	pia6821
:speaker	speaker

sample

name
bumper
chime1
chime2
chime3
chime4
hole
knocker
sling
coinin
outhole
kickback
drop_target_reset
coil_coinlockout_engage
coil_coinlockout_release
relay_engage
relay_release
solenoid_engage
solenoid_release

sound

channels
2

input

players	coins	service	tilt
1	3	no	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
keypad		52		no

port, analog

port_tag	analog_masks
:DIAGS
:X0
:X1
:X2
:X3
:X4
:X5
:X6
:X7

configuration

Language

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Language	DIAGS	16

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
German	0	no
English	16	yes
