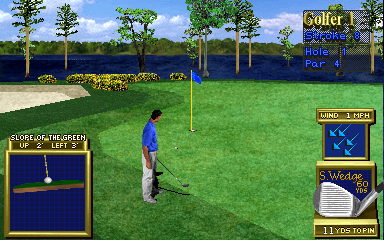

Golden Tee Diamond Edition Tournament (v3.05T ELC) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
gtdiamond	itech/itech32.cpp		no	no	no	yes	Golden Tee Diamond Edition Tournament (v3.05T ELC)	1998	Incredible Technologies	gt98	gt98

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	240	60.106990	8000000	508	0	384	262	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge	bios
gt98_golf_elc_prom0_v3.05tl.prom0	1048576	b6b0e3b8	e2ff88f205ad902d78b8c52ed554eb612c300d3c	maindata	0	good	no
gt98_golf_elc_prom1_v3.05tl.prom1	1048576	ba15f3a3	9ebe81c3f7f8526bf73c6728071905e7803b4101	maindata	1	good	no
gt98_golf_elc_prom2_v3.05tl.prom2	1048576	015e1c94	836f84272133d47a1742488e12a35af1832999bc	maindata	2	good	no
gt98_golf_elc_prom3_v3.05tl.prom3	1048576	d990528b	81cd8bd6ac49d0de72d4b690158ad1e73ae9688c	maindata	3	good	no
gt98nr_u88_v1.0.u88	131072	2cee9e98	02edac7abab2335c1cd824d1d9b26aa32238a2de	soundcpu	10000	good	no	gt98nr_u88_v1.0.u88
gt98_grom0_0.grm0_0	524288	2d79492b	16d66d937c34ddf616f31cba0d285326a31cad85	grom	0	good	no	gt98_grom0_0.grm0_0
gt98_grom0_1.grm0_1	524288	79afda1a	77a9883f14b58ceece9c76ce88bb900bc4accf25	grom	1	good	no	gt98_grom0_1.grm0_1
gt98_grom0_2.grm0_2	524288	8c381f56	41a5b70f9e524a1cade031f864350ec75c08c956	grom	2	good	no	gt98_grom0_2.grm0_2
gt98_grom0_3.grm0_3	524288	46c35ba6	a1976dd8710442cdb92c47f778acacba4380731b	grom	3	good	no	gt98_grom0_3.grm0_3
gt98_grom1_0.grm1_0	524288	b07bc634	48a9aeafaf844374d129d209884ec3a23abe249f	grom	200000	good	no	gt98_grom1_0.grm1_0
gt98_grom1_1.grm1_1	524288	b23d59a7	be68da263691e297b266e81485f5f28a5a5ad2f2	grom	200001	good	no	gt98_grom1_1.grm1_1
gt98_grom1_2.grm1_2	524288	9c113abc	8cb23da237dce73bbd283662c6344876d1c352f3	grom	200002	good	no	gt98_grom1_2.grm1_2
gt98_grom1_3.grm1_3	524288	231bbe58	b662a2ffd881a22ec0503810dca8bd61a4994463	grom	200003	good	no	gt98_grom1_3.grm1_3
gt98_grome2_0.grm2_0	524288	0c898920	9e656f94e79fd16a51706559fbe66fd0df1e670c	grom	400000	good	no
gt98_grome2_1.grm2_1	524288	cbe5b2b2	f661dbd472775c99a5a4b35965c992b3de6e0984	grom	400001	good	no
gt98_grome2_2.grm2_2	524288	71bd4441	6cb36aafb50ec0a9193a1a885f31a02d1fdd059d	grom	400002	good	no
gt98_grome2_3.grm2_3	524288	86149804	32fcde6061c9cea991c8d1d96e32b99a5ef2e825	grom	400003	good	no
gt98_srom0_nr.srom0	1048576	44983bd7	a6ac966ec113b079434d7f871e4ce7266206d234	ensoniq.0	0	good	no	gt98_srom0_nr.srom0
gt98_srom1_nr.srom1	524288	1b3f18b6	3b65de6a90c5ede183b5f8ca1875736bc1425772	ensoniq.0	200000	good	no	gt98_srom1_nr.srom1

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68EC020	25000000
cpu	soundcpu	Motorola MC6809E	2000000
audio	speaker	Speaker
audio	ensoniq	Ensoniq ES5506	16000000

device_ref

name
m68ec020
mc6809e
generic_latch_8
ticket_dispenser
watchdog
palette
screen
speaker
es5506
nvram
ipt_merge_any_hi
generic_latch_8
m48t02

sound

channels
1

input

players	coins	service	tilt
2	3	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
trackball	1	2		yes	0	255	25	32
trackball	2	2		yes	0	255	25	32

port, analog

port_tag	analog_masks
:DIPS
:P1
:P2
:P3
:P4
:TRACKX1	255
:TRACKX2	255
:TRACKY1	255
:TRACKY2	255

dipswitch

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DIPS	1048576

location

name	number	inverted
SW1	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1048576	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DIPS	2097152

location

name	number	inverted
SW1	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2097152	no

Unknown

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unknown	DIPS	4194304

location

name	number	inverted
SW1	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4194304	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DIPS	8388608

location

name	number	inverted
SW1	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	8388608	no
