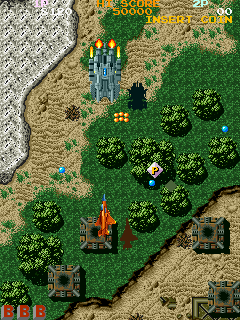

Gulf War II (set 2) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
gulfwar2a	toaplan/twincobr.cpp		no	no	no	yes	Gulf War II (set 2)	1991	Comad	gulfwar2	gulfwar2

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	240	54.877858	7000000	446	0	320	286	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
gw2_28.u119	131072	b9118660	2b32e2e8d4efa024346d6603f005880f0ffd2c37	maincpu	0	good	no
gw2_27.u92	131072	3494f1aa	4097eae7d22604fe1c996c37715018b2df6b8b39	maincpu	1	good	no
06-u51.bin	32768	75504f95	5bd23e700e1bd4f0fac622dfb7c8cc69ba764956	audiocpu	0	good	no	06-u51.bin
gw2_21.udsp2	4096	87a473af	3833ad01e9df6dc3e59ec4f910dc09a0318d865d	dsp	0	good	no
gw2_22.udsp1	4096	3a97b0db	4f4e2e432aa05fddce8bb7c8a6c7e222bdd50c16	dsp	1	good	no
gw2_23.u9	32768	a2aee4c8	dd6267f6ffbca0621790b76114d7c303a93b18e1	chars	0	good	no
gw2_24.u10	32768	fb3f71cd	1594ab7a2700617dfcd73b091d4b94fb21e06c0d	chars	8000	good	no
gw2_25.u11	32768	90eeb0a0	126877900ce6bb9b2bf6420f588174f010f9bb6c	chars	10000	good	no
16-u202.bin	65536	d815d175	917043d0731226d18bcc22dfe27e5a5a18b03c06	fg_tiles	0	good	no	16-u202.bin
13-u199.bin	65536	d949b0d9	1974d3b54e082baa9084dd619c8a879d954644cd	fg_tiles	10000	good	no	13-u199.bin
14-u200.bin	65536	c109a6ac	3a13ec802e5bafcf599c273a0bb0fd078e01e171	fg_tiles	20000	good	no	14-u200.bin
15-u201.bin	65536	ad21f2ab	0ab6eeb4dc9c2531c6f19479e7f9bc54fc1c1fdf	fg_tiles	30000	good	no	15-u201.bin
09-u195.bin	32768	b7be3a6d	68b9223fd07e81d443a1ae3ff04b2af105b27548	bg_tiles	0	good	no	09-u195.bin
12-u198.bin	32768	fd7032a6	8be6315d732b154163a3573e2017fdfc77c92e54	bg_tiles	8000	good	no	12-u198.bin
11-u197.bin	32768	7b721ed3	afd10229414c65a56e184d56a69460ca3a502a27	bg_tiles	10000	good	no	11-u197.bin
10-u196.rom	32768	160f38ab	da310ec387d439b26c8b6b881e5dcc07c2b9bb00	bg_tiles	18000	good	no	10-u196.rom
20-u262.bin	65536	10665ca0	0c552c3807e00a7ef4f9fd28c7988a232628a1f5	scu	0	good	no	20-u262.bin
19-u261.bin	65536	cfa6d417	f6c17d938b58dc5756ecf617f00fbfaf701602a7	scu	10000	good	no	19-u261.bin
18-u260.bin	65536	2e6a0c49	0b7ddad8775dcebe240a8246ef7816113f517f87	scu	20000	good	no	18-u260.bin
17-u259.bin	65536	66c1b0e6	82f3659245913f835c4434131c179b49ee195961	scu	30000	good	no	17-u259.bin
82s129.d3	256	24e7d62f	1c06a1ef1b6a722794ca1d5ee2c476ecaa5178a3	proms	0	good	no	82s129.d3
82s129.d4	256	a50cef09	55cafb5b2551b80ae708e9b966cf37c70a16d310	proms	100	good	no	82s129.d4
82s123.d2	32	f72482db	b0cb911f9c81f6088a5aa8760916ddae1f8534d7	proms	200	good	no	82s123.d2
82s123.e18	32	bc88cced	5055362710c0f58823c05fb4c0e0eec638b91e3d	proms	220	good	no	82s123.e18
82s123.b24	32	4fb5df2a	506ef2c8e4cf45c256d6831a0a5760732f2de422	proms	240	good	no	82s123.b24

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	7000000
cpu	audiocpu	Zilog Z80	3500000
cpu	dsp	Texas Instruments TMS32010	14000000
audio	mono	Speaker
audio	ymsnd	YM3812 OPL2	3500000

device_ref

name
m68000
z80
tms32010
ls259
ls259
hd6845s
toaplan_scu
buffered_spriteram16
screen
gfxdecode
palette
speaker
ym3812

sound

channels
1

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	2	8	no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:DSWA
:DSWB
:P1
:P2
:SYSTEM
:VBLANK

dipswitch

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWA	1

location

name	number	inverted
SW1	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	1	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSWA	2

location

name	number	inverted
SW1	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSWA	4

location

name	number	inverted
SW1	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSWA	8

location

name	number	inverted
SW1	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSWA	48

location

name	number	inverted
SW1	5	yes
SW1	6	yes

value

name	value	default
2 Coins/1 Credit	32	no
1 Coin/1 Credit	0	yes
2 Coins/3 Credits	48	no
1 Coin/2 Credits	16	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSWA	192

location

name	number	inverted
SW1	7	yes
SW1	8	yes

value

name	value	default
2 Coins/1 Credit	128	no
1 Coin/1 Credit	0	yes
2 Coins/3 Credits	192	no
1 Coin/2 Credits	64	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSWB	3

location

name	number	inverted
SW2	1	yes
SW2	2	yes

value

name	value	default
Easy	1	no
Normal	0	yes
Hard	2	no
Very Hard	3	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSWB	12

location

name	number	inverted
SW2	3	yes
SW2	4	yes

value

name	value	default
50k 200k 150k+	0	yes
70k 270k 200k+	4	no
50k Only	8	no
100k Only	12	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSWB	48

location

name	number	inverted
SW2	5	yes
SW2	6	yes

value

name	value	default
2	48	no
3	0	yes
4	32	no
5	16	no

Dip Switch Display

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Dip Switch Display	DSWB	64

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSWB	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	128	no
