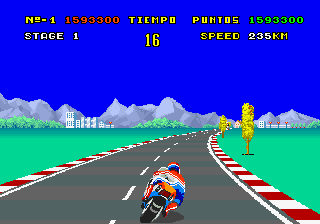

VF (bootleg of Hang-On) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
hangonvf	sega/segahang.cpp		no	no	no	yes	VF (bootleg of Hang-On)	1985	bootleg	hangon	hangon

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	320	224	60.054389	6293700	400	0	320	262	0	224	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
9.3n	32768	20b1c2b0	01b4f5105e2bbeb6ec6dbd18bfb728e3a973e0ca	maincpu	0	good	no	epr-6918a.ic22
11.1n	32768	7d9db1bf	952ee3e7a0d57ec1bb3385e0e6675890b8378d31	maincpu	1	good	no	epr-6916a.ic8
8.3k	32768	fea12367	9a1ce5863c562160b657ad948812b43f42d7d0cc	maincpu	10000	good	no	epr-6917a.ic20
10.1k	32768	ac883240	f943341ae13e062f3d12c6221180086ce8bdb8c4	maincpu	10001	good	no	epr-6915a.ic6
6.6l	32768	1c95013e	8344ac953477279c2c701f984d98292a21dd2f7d	subcpu	0	good	no	epr-6920.ic63
7.5l	32768	6ca30d69	ed933351883ebf6d9ef9428a81d09749b609cd60	subcpu	1	good	no	epr-6919.ic51
2.3j	32768	255a3a58	980372ab94949d1476282c83af0a08cc0555f1cd	gfx1	0	good	no
3.2j	32768	88b9ffd9	7ecfab266f05d5f919806f195fb2572f220fdf68	gfx1	8000	good	no
4.1j	32768	18882328	737c025701877845fad63af145506a57c775f8e0	gfx1	10000	good	no
19.5b	32768	469dad07	6d01c0b3506e28832928ad74d518577ff5be323b	sprites	1	good	no	epr-6819.ic27
25.6b	32768	87cbc6de	b64652e062e1b88c6f6ae8dd2ffe4533bb27ba45	sprites	0	good	no	epr-6820.ic34
18.5c	32768	15792969	b061dbf24e8b511116446794753c8b0cc49e2149	sprites	10001	good	no	epr-6821.ic28
24.6c	32768	e9718de5	30e3a7d5b33504da03c5780b4a946b977e46098a	sprites	10000	good	no	epr-6822.ic35
17.5d	32768	49422691	caee2a4a3f4587ae27dec330214edaa1229012af	sprites	20001	good	no	epr-6823.ic29
23.6d	32768	701deaa4	053032ef886b85a4cb4753d17b3c27d228695157	sprites	20000	good	no	epr-6824.ic36
16.5e	32768	f003a000	da7fc41d3116ebb108effcd9ffa86e873e8ff6e7	sprites	30001	good	no
22.6e	32768	08b007e2	db63d38472c8df13f0bbabb20b6e33c9c6c46664	sprites	30000	good	no
15.5f	32768	7fa1bfb6	a27b54c93613372f59050f0b2182d2984a8d2efe	sprites	40001	good	no	epr-6827.ic31
21.6f	32768	8e880c93	8c55deec065daf09a5d1c1c1f3f3f7bc1aeaf563	sprites	40000	good	no	epr-6828.ic38
14.5h	32768	47e63dd1	40fb4400e1e8c8193c69154c5c08a9a69a8bca0d	sprites	50001	good	no
20.6h	32768	33d1aa6e	1bd78d442cce2a39f1186b142d8a24bce286ad64	sprites	50000	good	no
12.3f	32768	22fc088e	d84570a802e696b67a587bee154620d97d75a7aa	sprites	60001	good	no
13.4f	32768	032738ba	6b8e7e229d04f852e72acfdfa8721b4b22681208	sprites	60000	good	no
5.9r	32768	581230e3	954eab35059322a12a197bba04bf85f816132f20	segaic16road	0	good	no	epr-6840.ic108
28.12h	16384	3b942f5f	4384b5c090954e69de561dde0ef32104aa11399a	soundcpu	0	good	no	epr-6833.ic73
26.1e	32768	cfef5481	c04b302fee58f0e59a097b2be2b61e5d03df7c91	pcm	0	good	no	epr-6831.ic5
27.1g	32768	4165aea5	be05c6d295807af2f396a1ff72d5a3d2a1e6054d	pcm	8000	good	no	epr-6832.ic6
1.9d	8192	e3ec7bd6	feec0fe664e16fac0fde61cf64b401b9b0575323	sprites:zoom	0	good	no	epr-6844.ic123
a_pal16r4a.9e	260			plds	0	nodump	no
b_pls153an.9f	235			plds	200	nodump	no
c_pal16r6a.7m	260			plds	400	nodump	no
d_pal16r6a.7r	260			plds	600	nodump	no
e_pal16r6a.7s	260			plds	800	nodump	no
f_pls153n.6s	235			plds	a00	nodump	no
g_pal16l8a.3r	260			plds	c00	nodump	no
i_pls153n_snd.6f	235			plds	e00	nodump	no
j_pal16l8a_db.bin	260			plds	1000	nodump	no
k_pal16r4a_db.bin	260			plds	1200	nodump	no

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	6293700
cpu	subcpu	Motorola MC68000	6293700
cpu	soundcpu	Zilog Z80	4000000
audio	speaker	Speaker
audio	ymsnd	YM2203 OPN	4000000
audio	pcm	Sega PCM	8000000

device_ref

name
m68000
m68000
i8255
i8255
adc0804
segaic16_video
segaic16_road
gfxdecode
palette
screen
generic_latch_8
sega_hangon_sprite
z80
speaker
ym2203
segapcm

sound

channels
1

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
paddle				yes	32	224	100	4
pedal				no	0	255	100	40

port, analog

port_tag	analog_masks
:ADC0	255
:ADC1	255
:ADC2	255
:COINAGE
:DSW
:SERVICE
:UNKNOWN

dipswitch

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	COINAGE	15

location

name	number	inverted
SWA	1	no
SWA	2	no
SWA	3	no
SWA	4	no

value

name	value	default
4 Coins/1 Credit	7	no
3 Coins/1 Credit	8	no
2 Coins/1 Credit	9	no
2 Coins/1 Credit, 5/3, 6/4	5	no
2 Coins/1 Credit, 4/3	4	no
1 Coin/1 Credit	15	yes
1 Coin/1 Credit	0	no
1 Coin/1 Credit, 5/6	3	no
1 Coin/1 Credit, 4/5	2	no
1 Coin/1 Credit, 2/3	1	no
2 Coins/3 Credits	6	no
1 Coin/2 Credits	14	no
1 Coin/3 Credits	13	no
1 Coin/4 Credits	12	no
1 Coin/5 Credits	11	no
1 Coin/6 Credits	10	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	COINAGE	240

location

name	number	inverted
SWA	5	no
SWA	6	no
SWA	7	no
SWA	8	no

value

name	value	default
4 Coins/1 Credit	112	no
3 Coins/1 Credit	128	no
2 Coins/1 Credit	144	no
2 Coins/1 Credit, 5/3, 6/4	80	no
2 Coins/1 Credit, 4/3	64	no
1 Coin/1 Credit	240	yes
1 Coin/1 Credit	0	no
1 Coin/1 Credit, 5/6	48	no
1 Coin/1 Credit, 4/5	32	no
1 Coin/1 Credit, 2/3	16	no
2 Coins/3 Credits	96	no
1 Coin/2 Credits	224	no
1 Coin/3 Credits	208	no
1 Coin/4 Credits	192	no
1 Coin/5 Credits	176	no
1 Coin/6 Credits	160	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	1

location

name	number	inverted
SWB	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	no
On	0	yes

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	6

location

name	number	inverted
SWB	2	no
SWB	3	no

value

name	value	default
Easy	4	no
Medium	6	yes
Hard	2	no
Hardest	0	no

Time Adj.

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Time Adj.	DSW	24

location

name	number	inverted
SWB	4	no
SWB	5	no

value

name	value	default
Normal	24	yes
Medium	16	no
Hard	8	no
Hardest	0	no

Play Music

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Play Music	DSW	32

location

name	number	inverted
SWB	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	no
On	32	yes

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	64

location

name	number	inverted
SWB	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	yes
On	0	no

Unused

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Unused	DSW	128

location

name	number	inverted
SWB	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no
