Hang Pilot (ver UAA) - mame (0288) machine

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
hangpltu	konami/gticlub.cpp		no	no	no	yes	Hang Pilot (ver UAA)	1997	Konami	hangplt	hangplt

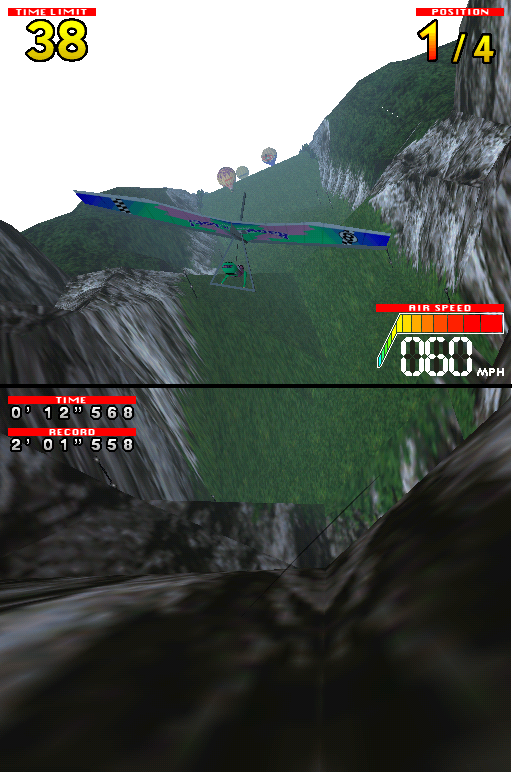

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
hangpltu	265916	29/12/2025 11:31:23	512	772	96	96	0	Format24bppRgb	305:MAME 0.147u3 (Nov 19 2012)	19e50112a27d5daf3e5db9261744a91abb5caf92

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
lscreen	raster	0	512	384	60.000000	15120000	600	44	556	420	27	411	no
rscreen	raster	0	512	384	60.000000	15120000	600	44	556	420	27	411	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
imperfect	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
685uaa01.21u	524288	83a5b866	6859590f212c7debb19924f0174e4cd1bfc011bc	prgrom	0	good	no
685uaa02.19u	524288	765906d6	9085a2346756b3b628fef91b7afc131aba434654	prgrom	1	good	no
685uaa03.21r	524288	cb0147a3	7bcab760c01ea7e24f4ca5793e081aafa97f68a3	prgrom	2	good	no
685uaa04.19r	524288	a5fda56b	4d86f488f411ec16fa3be830206a44214941d1fe	prgrom	3	good	no
685a05.14u	2097152	ba1c8f40	ce4ed641c1d6d44447eaaada16f305f1d7fb9ee2	datarom	0	good	no	685a05.14u
685a06.12u	2097152	2429935c	4da9e169adcac81ea1bc135d727c2bd13ad372fa	datarom	2	good	no	685a06.12u
685a07.13k	524288	5b72fd80	a150837fa0d66dc0c3832495a4c8ce4f9b92cd98	audiocpu	0	good	no	685a07.13k
685a09.9s	4194304	b8ae40aa	eee27a8929e0e805f1045fd9638e661b36a1e3c7	rfsnd	0	good	no	685a09.9s
685a10.7s	4194304	fef3dc36	566c7469fc452b5965a31fa42291082ec8e48a24	rfsnd	400000	good	no	685a10.7s
685a13.4w	4194304	06329af4	76cad9db604751ce48bb67bfd29e57bac0ee9a16	cgboard_0	2	good	no	685a13.4w
685a14.12w	4194304	87437739	0d45637af40938a54d5efd29c125b0fafd55f9a4	cgboard_0	0	good	no	685a14.12w
hangpltu.nv	256	cfea8a2b	94162441d401c95b8c6a761d32b656ce22c3eeb6	eeprom	0	good	no

chip

type	tag	name	clock
cpu	maincpu	IBM PowerPC 403GA	32000000
cpu	audiocpu	Motorola MC68000	16000000
cpu	dsp1	Analog Devices ADSP21062 "SHARC"	36000000
cpu	dsp2	Analog Devices ADSP21062 "SHARC"	36000000
audio	speaker	Speaker
audio	rfsnd	Ricoh RF5C400	16934400

device_ref

tag	name
:maincpu	ppc403ga
:audiocpu	m68000
:dsp1	adsp21062
:dsp2	adsp21062
:eeprom	93c56_16
:adc1038	adc1038
:k056230	k056230
:voodoo0	voodoo_1
:voodoo1	voodoo_1
:k033906_1	k033906
:k033906_2	k033906
:palette1	palette
:palette2	palette
:lscreen	screen
:rscreen	screen
:k0016041	k001604
:k0016042	k001604
:k056800	k056800
:speaker	speaker
:rfsnd	rf5c400
:konppc	konppc

sound

channels
1

feature

type	status	overall
graphics	imperfect
sound	imperfect

input

players	coins	service	tilt
1	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy		2	2	no
stick				yes	256	767	50	20

port, analog

port_tag	analog_masks
:AN0	1023
:AN1	1023
:AN2
:AN3
:IN0
:IN1
:IN2
:IN3

dipswitch

Disable Machine Init

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Disable Machine Init	IN3	1

location

name	number	inverted
SW	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	1	yes
On	0	no

Skip Post

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Skip Post	IN3	2

location

name	number	inverted
SW	2	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	2	no
On	0	yes

DIP3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIP3	IN3	4

location

name	number	inverted
SW	3	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	4	yes
On	0	no

DIP4

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
DIP4	IN3	8

location

name	number	inverted
SW	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	yes
On	0	no
