Hammerin' Harry (World, M81 hardware)

machine

• XML • JSON • RUN

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
hharry	irem/m72.cpp		no	no	no	yes	Hammerin' Harry (World, M81 hardware)	1990	Irem

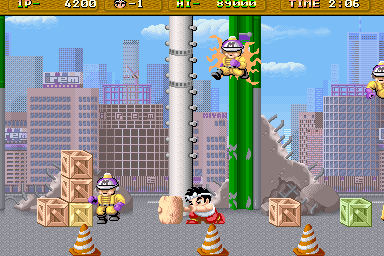

snap

Key	Length	LastWriteTime	Width	Height	HorizontalResolution	VerticalResolution	PaletteLength	PixelFormat	PropertyItems	PixelSHA1
hharry	17451	29/12/2025 11:31:24	384	256	96	96	0	Format24bppRgb	305:MAME 0.135u3 (Dec 11 2009)	964e2b285ccd49846879d642ee36155a64d08f2a

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	0	384	256	55.017606	8000000	512	64	448	284	0	256	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	supported	no	no	no	no	preliminary

rom

name	size	crc	sha1	region	offset	status	optional
gen=m81=_a-h0-v.ic59	131072	c52802a5	7180189c886aebe8d3e7fd38922916cecfddae32	maincpu	1	good	no
gen=m81=_a-l0-v.ic68	131072	f463074c	aca86345610e65848c276ab278092d35ba215916	maincpu	0	good	no
gen=m81=_a-h1-0.ic58	65536	3ae21335	780d7a0c5bebe4b914ea5b3741e30630f8c29a4f	maincpu	60001	good	no
gen=m81=_a-l1-0.ic67	65536	bc6ac5f9	c6afba4967a8055f6b63827697425eac743f5a75	maincpu	60000	good	no
gen=m81=_a-sp-0.ic14	65536	80e210e7	66cff58fb37c52e1d8e0567e13b774253e862585	soundcpu	0	good	no
gen=m81=_00.ic3	131072	ec5127ef	014ac8ad7b19cd9b475b72a0f42a4991119501c4	sprites	0	good	no
gen=m81=_10.ic5	131072	def65294	23f5d99fa9f604fde37cb52113bff233d9be1d25	sprites	20000	good	no
gen=m81=_20.ic12	131072	bb0d6ad4	4ab617fadfc32efad90ed7f0555513f167b0c43a	sprites	40000	good	no
gen=m81=_30.ic14	131072	4351044e	0d3ce3f4f1473fd997e70de91e7b5b5a5ec60ad4	sprites	60000	good	no
gen=m81=_a0.ic50	131072	c577ba5f	c882e58cf64deca8eee6f14f3df43ecc932488fc	tiles0	0	good	no
gen=m81=_a1.ic49	131072	429d12ab	ccba25eab981fc4e664f76e06a2964066f2ae2e8	tiles0	20000	good	no
gen=m81=_a2.ic51	131072	b5b163b0	82a708fea4953a7c4dcd1d4a1b07f302221ba30b	tiles0	40000	good	no
gen=m81=_a3.ic52	131072	8ef566a1	3afb020a7317efe89c18b2a7773894ce28499d49	tiles0	60000	good	no
gen=m81=_a-v0-0.ic11	131072	faaacaff	ea3a3920255c07aa9c0a7e0191eae257a9f7f558	samples	0	good	no
m81_a-9l-.ic72	256	b460c438	00e20cf754b6fd5138ee4d2f6ec28dff9e292fe6	proms	0	good	no
m81_a-9p-.ic74	256	a4f2c4bc	f13b0a4b52dcc6704063b676f09d83dcba170133	proms	100	good	no
m81_b-9h-.ic94	279	4bc1d393	d9358a409b4568839ee6cea7241e37f557c3d3a9	plds	0	good	no
m81_a-5l-.ic28	279	56c29834	a66c589845f9995c673325f1161c687eb90d68c1	plds	200	good	no
m81_a-2h-.ic2	279	21ede612	5d05d3088f3d248db8948da175551ea29d7478b5	plds	400	good	no
gen=81=_a-7d-a.ic48	279	92fe9eff	970f9ed9b2fc3289cded9cde2b68cce2106fae7d	plds	600	good	no

chip

type	tag	name	clock
cpu	maincpu	NEC V30	8000000
cpu	soundcpu	Zilog Z80	3579545
audio	speaker	Speaker
audio	ymsnd	YM2151 OPM	3579545
audio	dac	8-Bit R-2R DAC

device_ref

tag	name
:maincpu	v30
:soundcpu	z80
:upd71059c	pic8259
:spriteram	buffered_spriteram16
:gfxdecode	gfxdecode
:palette	palette
:screen	screen
:speaker	speaker
:soundlatch	generic_latch_8
:soundirq	rst_neg_buffer
:m72	m72_audio
:ymsnd	ym2151
:dac	dac_8bit_r2r

sound

channels
1

input

players	coins	service	tilt
2	2	yes	no

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3
joy	1	4	8	no
joy	2	4	8	no

port, analog

port_tag	analog_masks
:DSW
:IN0
:IN1
:JumperJ3

configuration

M81-B-B Jumper J3

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
M81-B-B Jumper J3	JumperJ3	1

setting

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
S	0	yes

dipswitch

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSW	3

location

name	number	inverted
SW1	1	no
SW1	2	no

value

name	value	default
2	2	no
3	3	yes
4	1	no
5	0	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSW	12

location

name	number	inverted
SW1	3	no
SW1	4	no

value

name	value	default
Very Easy	0	no
Easy	8	no
Normal	12	yes
Hard	4	no

Continue Limit

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Continue Limit	DSW	16

location

name	number	inverted
SW1	5	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	16	yes

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSW	32

location

name	number	inverted
SW1	6	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	no
Yes	32	yes

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSW	64

location

name	number	inverted
SW1	7	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	64	no
On	0	yes

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSW	128

location

name	number	inverted
SW1	8	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	128	yes
On	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSW	256

location

name	number	inverted
SW2	1	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	256	yes
On	0	no

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSW	1536

location

name	number	inverted
SW2	2	no
SW2	3	no

value

name	value	default
Upright	1024	yes
Upright (2P)	0	no
Cocktail	1536	no

Coin Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin Mode	DSW	2048

location

name	number	inverted
SW2	4	no

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Mode 1	2048	yes
Mode 2	0	no

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSW	12288	DSW	2048	eq	0

location

name	number	inverted
SW2	5	no
SW2	6	no

value

name	value	default
5 Coins/1 Credit	0	no
3 Coins/1 Credit	4096	no
2 Coins/1 Credit	8192	no
1 Coin/1 Credit	12288	yes

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSW	49152	DSW	2048	eq	0

location

name	number	inverted
SW2	7	no
SW2	8	no

value

name	value	default
1 Coin/2 Credits	49152	yes
1 Coin/3 Credits	32768	no
1 Coin/5 Credits	16384	no
1 Coin/6 Credits	0	no

Coinage

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coinage	DSW	61440	DSW	2048	ne	0

location

name	number	inverted
SW2	5	no
SW2	6	no
SW2	7	no
SW2	8	no

value

name	value	default
6 Coins/1 Credit	40960	no
5 Coins/1 Credit	45056	no
4 Coins/1 Credit	49152	no
3 Coins/1 Credit	53248	no
2 Coins/1 Credit	57344	no
2 Coins to Start/1 to Continue	4096	no
3 Coins/2 Credits	12288	no
4 Coins/3 Credits	8192	no
1 Coin/1 Credit	61440	yes
3 Coins/4 Credits	16384	no
1 Coin/2 Credits	36864	no
1 Coin/3 Credits	32768	no
1 Coin/4 Credits	28672	no
1 Coin/5 Credits	24576	no
1 Coin/6 Credits	20480	no
Free Play	0	no

clones

name	description
dkgensanm72	Daiku no Gensan (Japan, M72 hardware)
dkgensanm82	Daiku no Gensan (Japan, M82 hardware)
dkgensan	Daiku no Gensan (Japan, M84 hardware, set 1)
dkgensana	Daiku no Gensan (Japan, M84 hardware, set 2)
hharryb2	Hammerin' Harry (Playmark bootleg)
hharryu	Hammerin' Harry (US, M84 hardware)
hharryb	Hammerin' Harry (World, M84 hardware bootleg)
