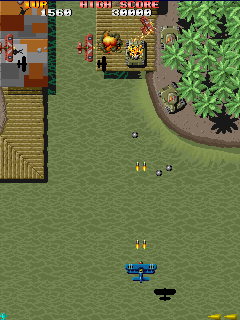

Hishou Zame (Japan) - mame (0280) machine

MAME: 0280 - Released: 2025-08-29T22:26:57 - Lists: 731 - Software: 139884 - rom: 235974 - disk: 11384

machine

• XML • JSON • AO

name	sourcefile	sampleof	isbios	isdevice	ismechanical	runnable	description	year	manufacturer	cloneof	romof
hishouza	toaplan/twincobr.cpp		no	no	no	yes	Hishou Zame (Japan)	1987	Toaplan / Taito Corporation	fshark	fshark

display

tag	type	rotate	width	height	refresh	pixclock	htotal	hbend	hbstart	vtotal	vbend	vbstart	flipx
screen	raster	270	320	240	54.877858	7000000	446	0	320	286	0	240	no

driver

status	emulation	savestate	requiresartwork	unofficial	nosoundhardware	incomplete	cocktail
good	good	unsupported	no	no	no	no

rom

name	size	crc	sha1	region	offset	status	optional	merge
b02_18.p8	65536	4444bb94	5ff955a5190d1b356187de105cfb8ea181fc1282	maincpu	0	good	no
b02_17.m8	65536	cdac7228	6b0d67e4b0661a858653d2eabb8936af9148167e	maincpu	1	good	no
b02_16.l5	32768	f0b98af2	7054029b1955c510a6b693d278dd4d8a384112df	audiocpu	0	good	no
d70011u_gxc-01_mcu_64000	3072	1ca63774	e534325af9433fb0e9ccdf82ee3a192d2459b18f	dsp	0	good	no
b02-07.h11	16384	c13a775e	b60d26126ec6ebc24a7ca87dd0234e4d9d3e78fc	chars	0	good	no
b02-06.h10	16384	ad5f1371	feae9d7bb75bfab5353be4c5931d78a530bd9bcd	chars	4000	good	no
b02-05.h8	16384	85a7bff6	38cd89aa0800e3796f7ecac657d14119543057c2	chars	8000	good	no
b02_12.h20	32768	733b9997	75e874a1d148fcc8fa09bb724ce8346565ace4e5	fg_tiles	0	good	no	b02_12.h20
b02_15.h24	32768	8b70ef32	e1f988d650dce17e3bfbea12e5fddbb671df18d4	fg_tiles	8000	good	no	b02_15.h24
b02_14.h23	32768	f711ba7d	49644a264c09fc2d743e4f801b8b82e980f2def9	fg_tiles	10000	good	no	b02_14.h23
b02_13.h21	32768	62532cd3	df483db7604c0135130f92b08bad3fbffb4f5c47	fg_tiles	18000	good	no	b02_13.h21
b02_08.h13	32768	ef0cf49c	6fd5727462cd6c5dab4c5d780bd7504e48583894	bg_tiles	0	good	no	b02_08.h13
b02_11.h18	32768	f5799422	3f79dd849db787695a587f0db19a6782153b5955	bg_tiles	8000	good	no	b02_11.h18
b02_10.h16	32768	4bd099ff	9326075f83549b0a9656f69bd4436fb1be2ac805	bg_tiles	10000	good	no	b02_10.h16
b02_09.h15	32768	230f1582	0fd4156a46ed64cb6e5c59b8836382dd86c229cf	bg_tiles	18000	good	no	b02_09.h15
b02_01.d15	65536	2234b424	bd6242b9dcdb0f582565df588106cd1ce2aad53b	scu	0	good	no	b02_01.d15
b02_02.d16	65536	30d4c9a8	96ce4f41207c5487e801a8444030ec4dc7b58b23	scu	10000	good	no	b02_02.d16
b02_03.d17	65536	64f3d88f	d0155cfb0a8885d58e34141f9696b9aa208440ca	scu	20000	good	no	b02_03.d17
b02_04.d20	65536	3b23a9fc	2ac34445618e17371b5eed7eb6f43da4dbb99e28	scu	30000	good	no	b02_04.d20
b02-20.b4	256	24e7d62f	1c06a1ef1b6a722794ca1d5ee2c476ecaa5178a3	proms	0	good	no	b02-20.b4
b02-21.b5	256	a50cef09	55cafb5b2551b80ae708e9b966cf37c70a16d310	proms	100	good	no	b02-21.b5
b02-19.b2	32	f72482db	b0cb911f9c81f6088a5aa8760916ddae1f8534d7	proms	200	good	no	b02-19.b2
b02-22.c21	32	bc88cced	5055362710c0f58823c05fb4c0e0eec638b91e3d	proms	220	good	no	b02-22.c21
b02-23.f28	32	4fb5df2a	506ef2c8e4cf45c256d6831a0a5760732f2de422	proms	240	good	no	b02-23.f28

chip

type	tag	name	clock
cpu	maincpu	Motorola MC68000	7000000
cpu	audiocpu	Zilog Z80	3500000
cpu	dsp	Texas Instruments TMS32010	14000000
audio	mono	Speaker
audio	ymsnd	YM3812 OPL2	3500000

device_ref

name
m68000
z80
tms32010
ls259
ls259
hd6845s
toaplan_scu
buffered_spriteram16
screen
gfxdecode
palette
speaker
ym3812

sound

channels
1

input

players	coins	service	tilt
2	2	no	yes

control

type	player	buttons	ways	reverse	minimum	maximum	sensitivity	keydelta	ways2	ways3	reqbuttons
joy	1	2	8	no
joy	2	2	8	no

port, analog

port_tag	analog_masks
:DSWA
:DSWB
:P1
:P2
:SYSTEM
:VBLANK

dipswitch

Cabinet

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Cabinet	DSWA	1

location

name	number	inverted
SW1	1	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Upright	1	yes
Cocktail	0	no

Flip Screen

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Flip Screen	DSWA	2

location

name	number	inverted
SW1	2	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	2	no

Service Mode

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Service Mode	DSWA	4

location

name	number	inverted
SW1	3	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	4	no

Demo Sounds

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Demo Sounds	DSWA	8

location

name	number	inverted
SW1	4	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	8	no
On	0	yes

Coin A

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin A	DSWA	48

location

name	number	inverted
SW1	5	yes
SW1	6	yes

value

name	value	default
2 Coins/1 Credit	32	no
1 Coin/1 Credit	0	yes
2 Coins/3 Credits	48	no
1 Coin/2 Credits	16	no

Coin B

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Coin B	DSWA	192

location

name	number	inverted
SW1	7	yes
SW1	8	yes

value

name	value	default
2 Coins/1 Credit	128	no
1 Coin/1 Credit	0	yes
2 Coins/3 Credits	192	no
1 Coin/2 Credits	64	no

Difficulty

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Difficulty	DSWB	3

location

name	number	inverted
SW2	1	yes
SW2	2	yes

value

name	value	default
Easy	1	no
Normal	0	yes
Hard	2	no
Very Hard	3	no

Bonus Life

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Bonus Life	DSWB	12

location

name	number	inverted
SW2	3	yes
SW2	4	yes

value

name	value	default
50k 200k 150k+	0	yes
70k 270k 200k+	4	no
50k Only	8	no
100k Only	12	no

Lives

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Lives	DSWB	48

location

name	number	inverted
SW2	5	yes
SW2	6	yes

value

name	value	default
1	32	no
2	48	no
3	0	yes
5	16	no

Dip Switch Display

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Dip Switch Display	DSWB	64

location

name	number	inverted
SW2	7	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
Off	0	yes
On	64	no

Allow Continue

name	tag	mask	condition_tag	condition_mask	condition_relation	condition_value
Allow Continue	DSWB	128

location

name	number	inverted
SW2	8	yes

value

name	value	default	condition_tag	condition_mask	condition_relation	condition_value
No	0	yes
Yes	128	no
